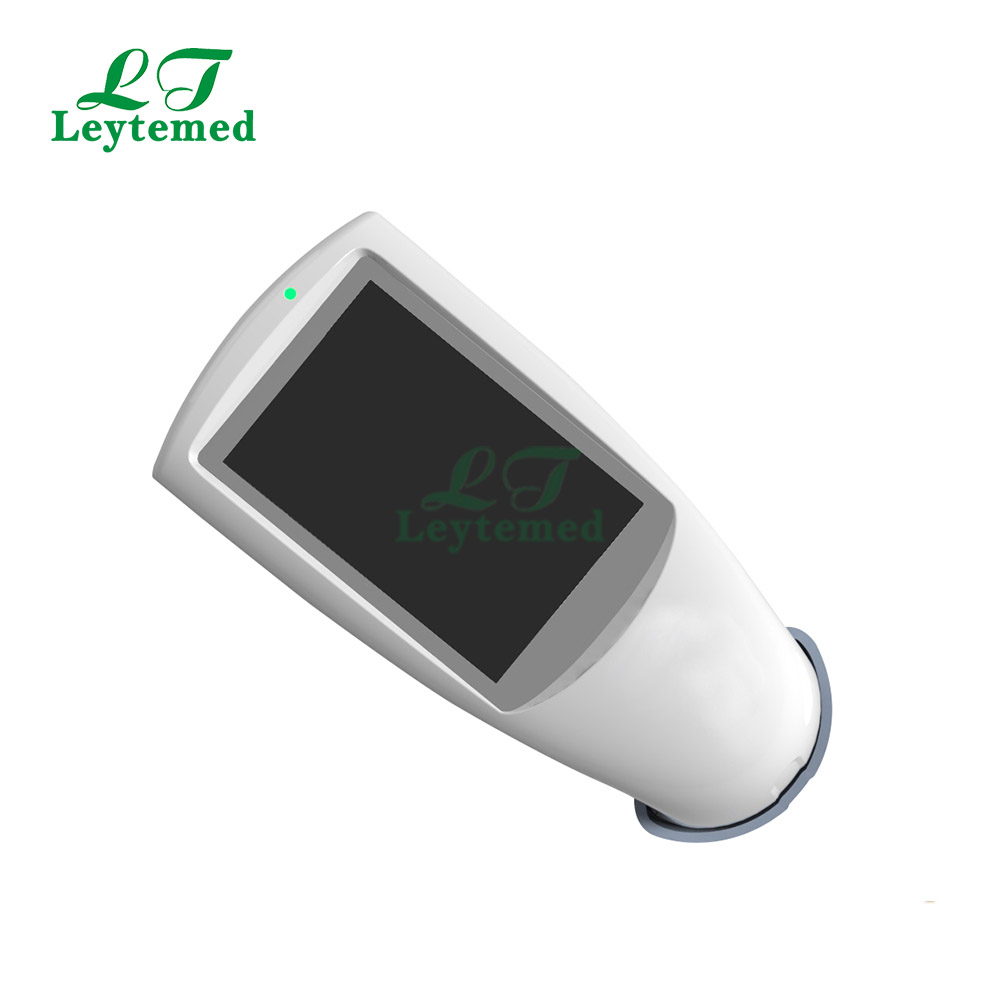

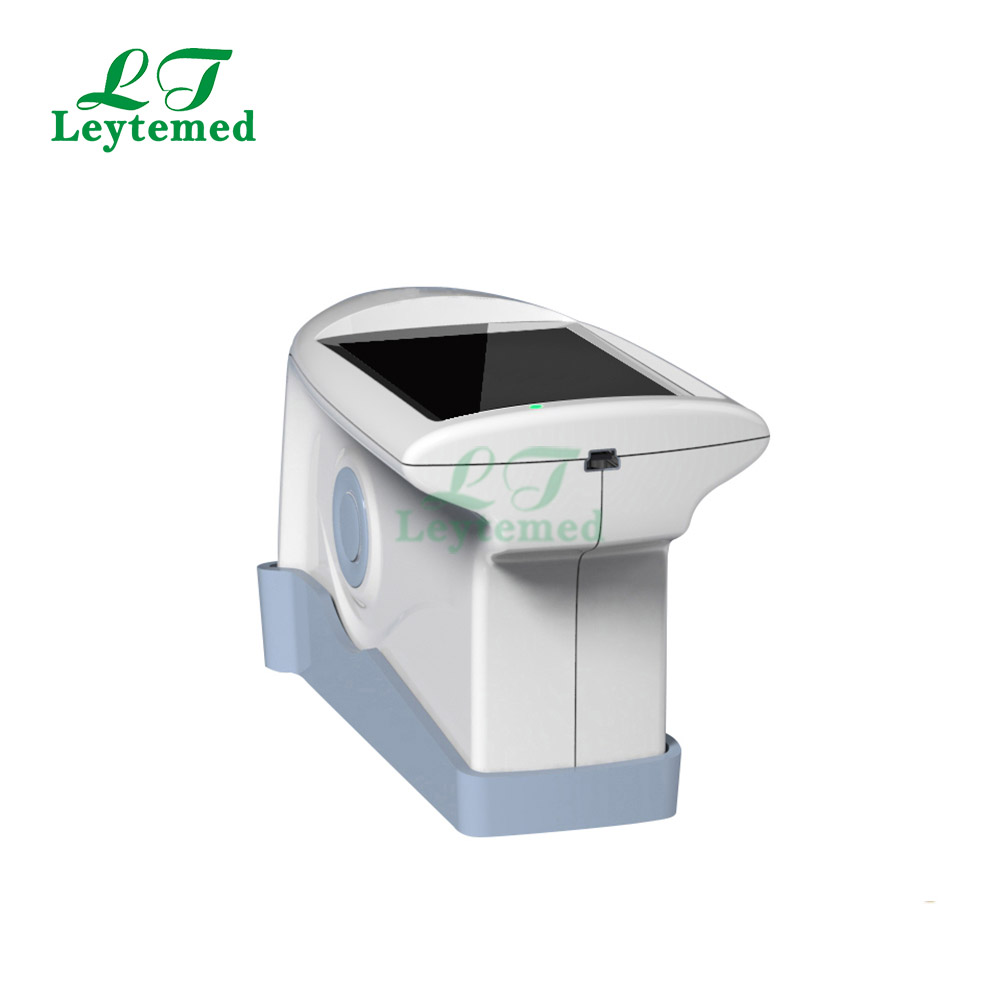

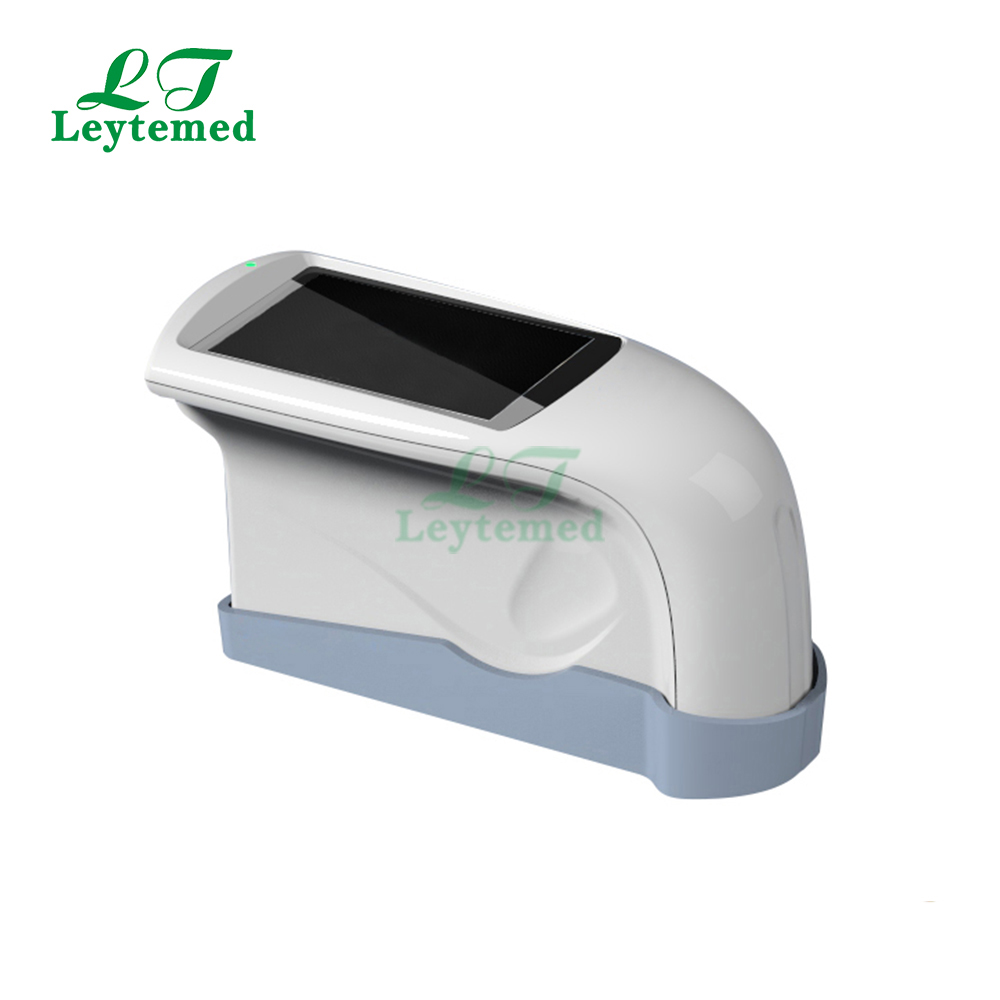

| LTLN02 60° Intelligent Gloss Meter | |
| Model: | LTLN02 |
| Measuring Angle | 60° Comply with standard ISO2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
| Characters | Apply to paint, ink, coating, electroplate, plastic, electronic, printing, paper, furniture,ceramic, hardware industries, etc. for glossiness measurement and gloss data transmission. Measuring mode: basic measurement, statistical measurement, continuous measurement,QC measurement (only for GQC6 software). Display 5 sets of test data Input glossiness value manually. |
| Measuring Area (mm) | 9x15 |
| Measuring Range | 0~1000GU |
| Division Value | 0.1GU |
Range Repeatability Reproducibility | 0-10GU 10-100GU 100-1000GU ±0.1GU ±0.2GU ±0.2%GU ±0.2GU ±0.5GU ±0.5%GU |
| Deviation | ±1.2, ±1.2% |
| Measurement Standard | Conform with JJG696 first class gloss meter working requirement |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Measuring Time | 0.5s |
| Dimension | L*W*H : 160mm*75mm*90mm |
| Weight | 350g |
| Language | Chinese/English |
| Battery | 3200mAh Li-ion Battery , >10000 times(within 8 hours) |
| Display | TFT 3.5inch, touch screen |
| Interface | USB/RS-232 |
| Storage | Basic Mode: 1000, Statistical Mode: 5000, Continuous Mode: 5000 |
| Software | GQC6 Quality Control Software with QC report printing function and more extended functions. |
| Operation Temperature | 0~40℃（32~104°F） |
| Storage Temperature | -20~50℃（-4~122°F） |
| Humidity | <85% relative humidity, no condensation |
| Standard Accessories | Power Adapter, USB Cable, User Manual, GQC6 software CD, Calibration Plate |
| Optional Accessories | Miniature Printer |
| Note | The specifications are subject to change without notice. |
