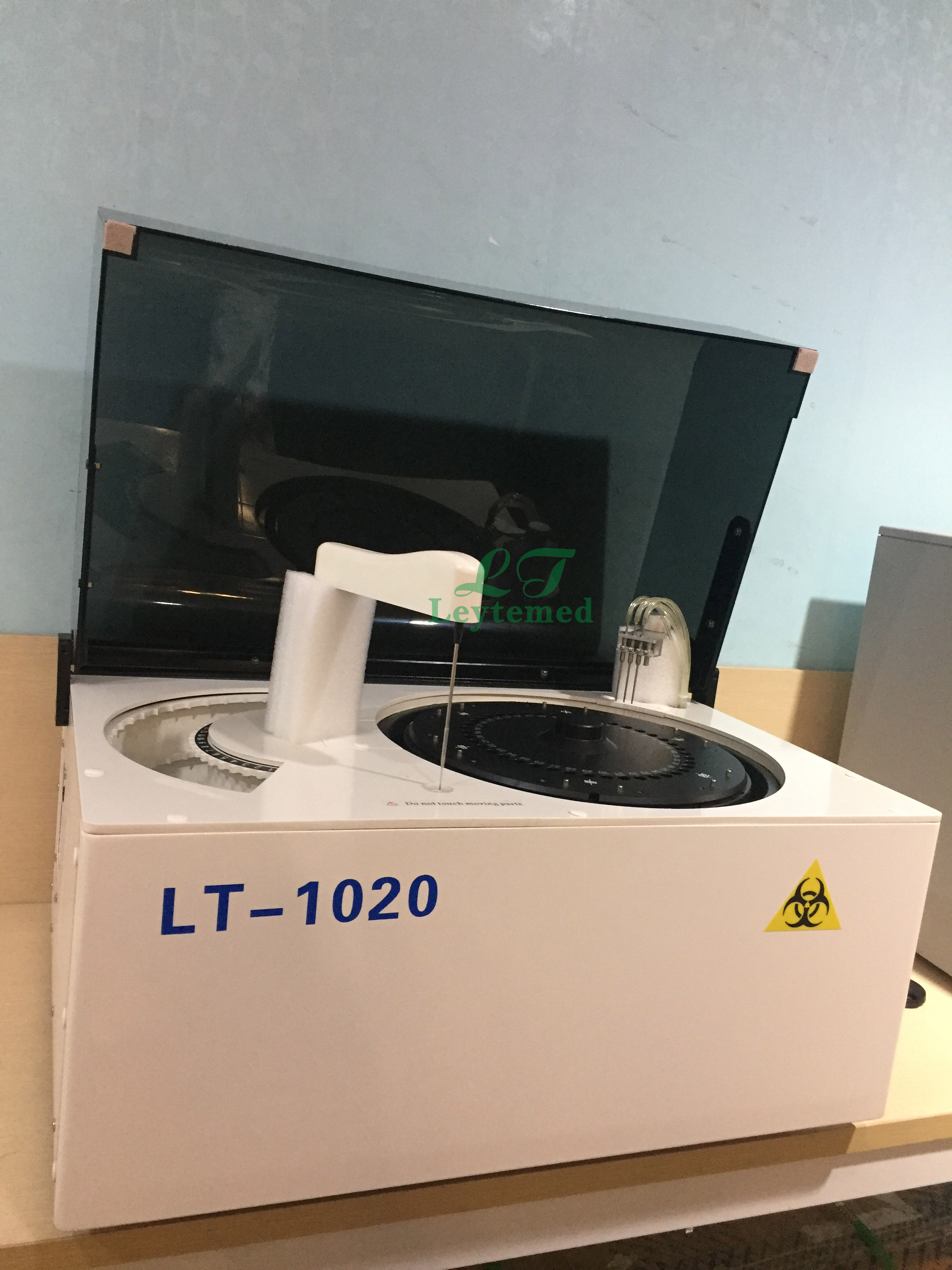

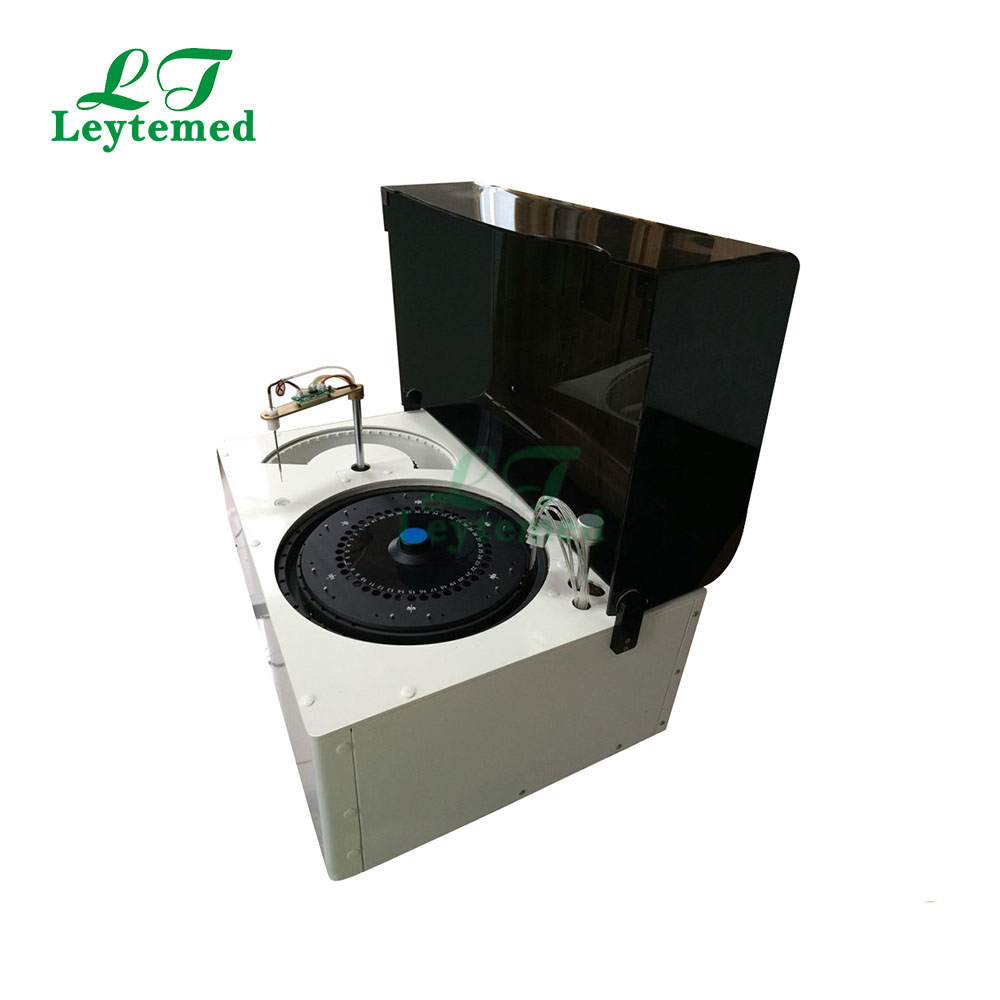

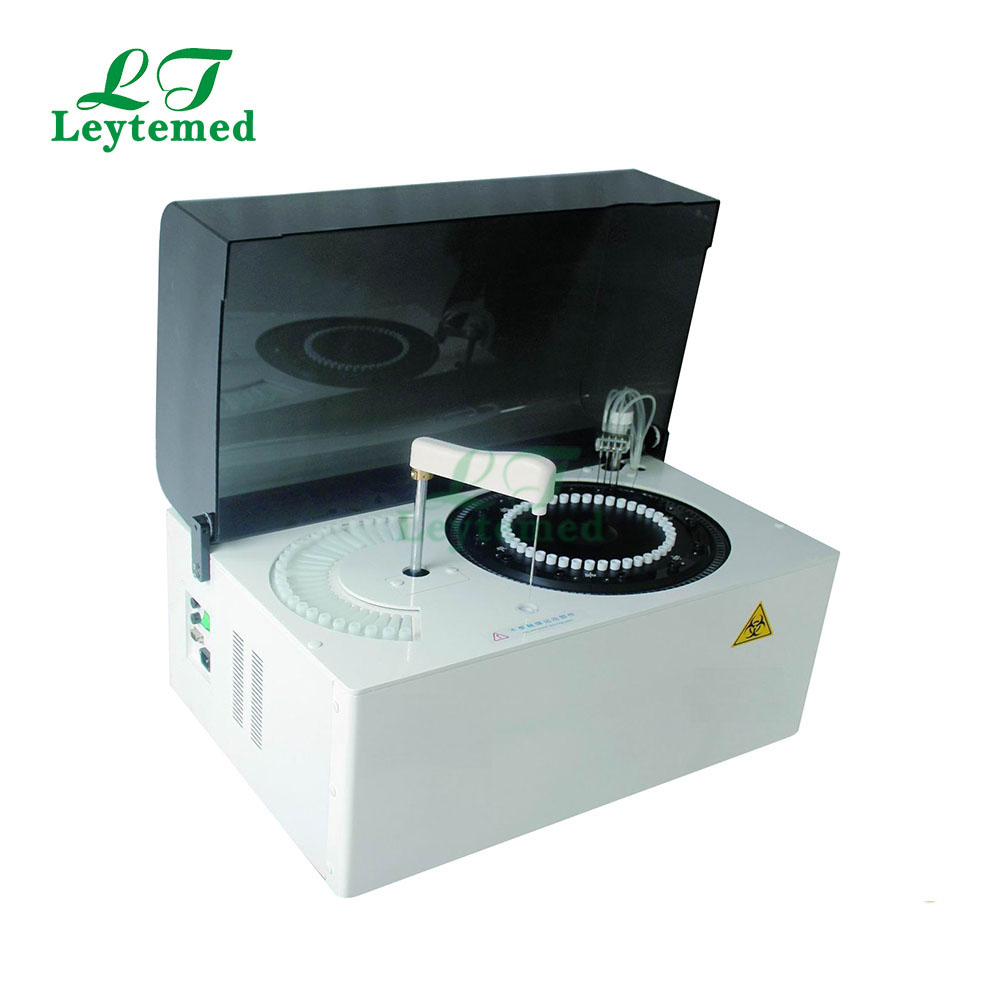

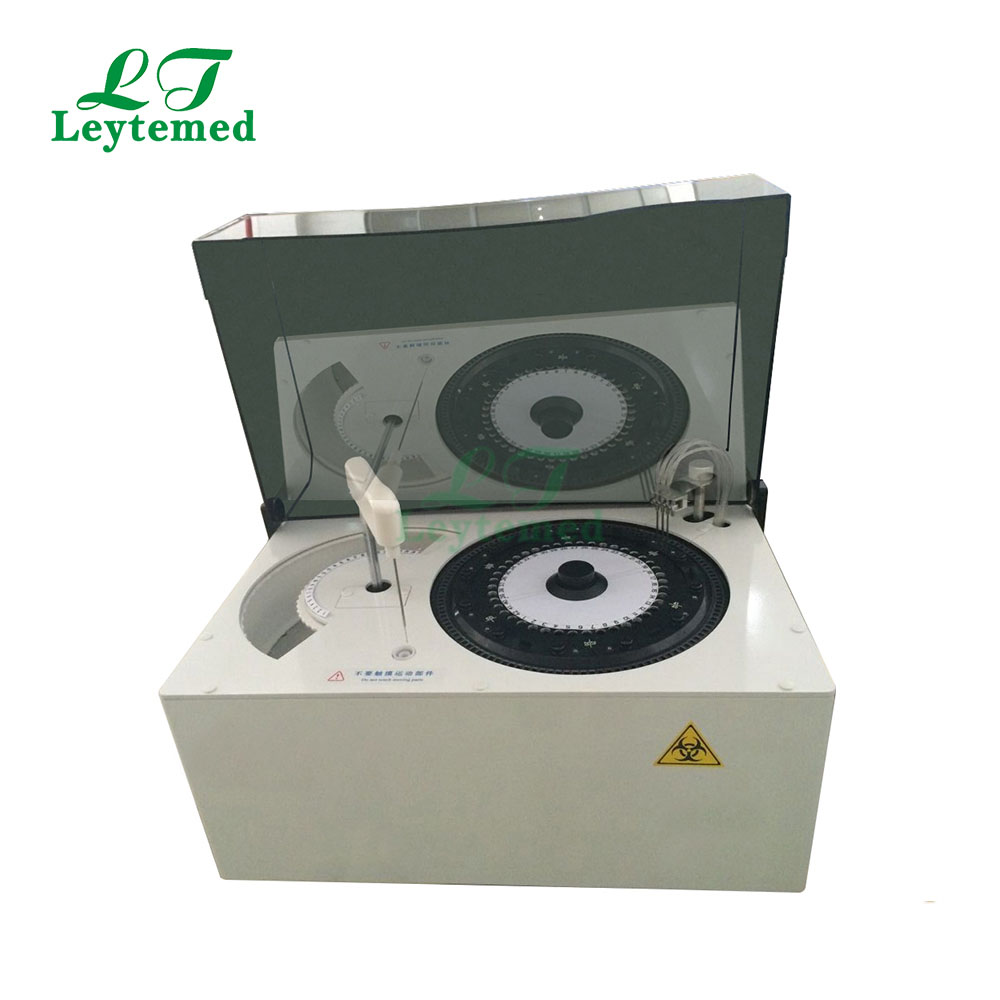

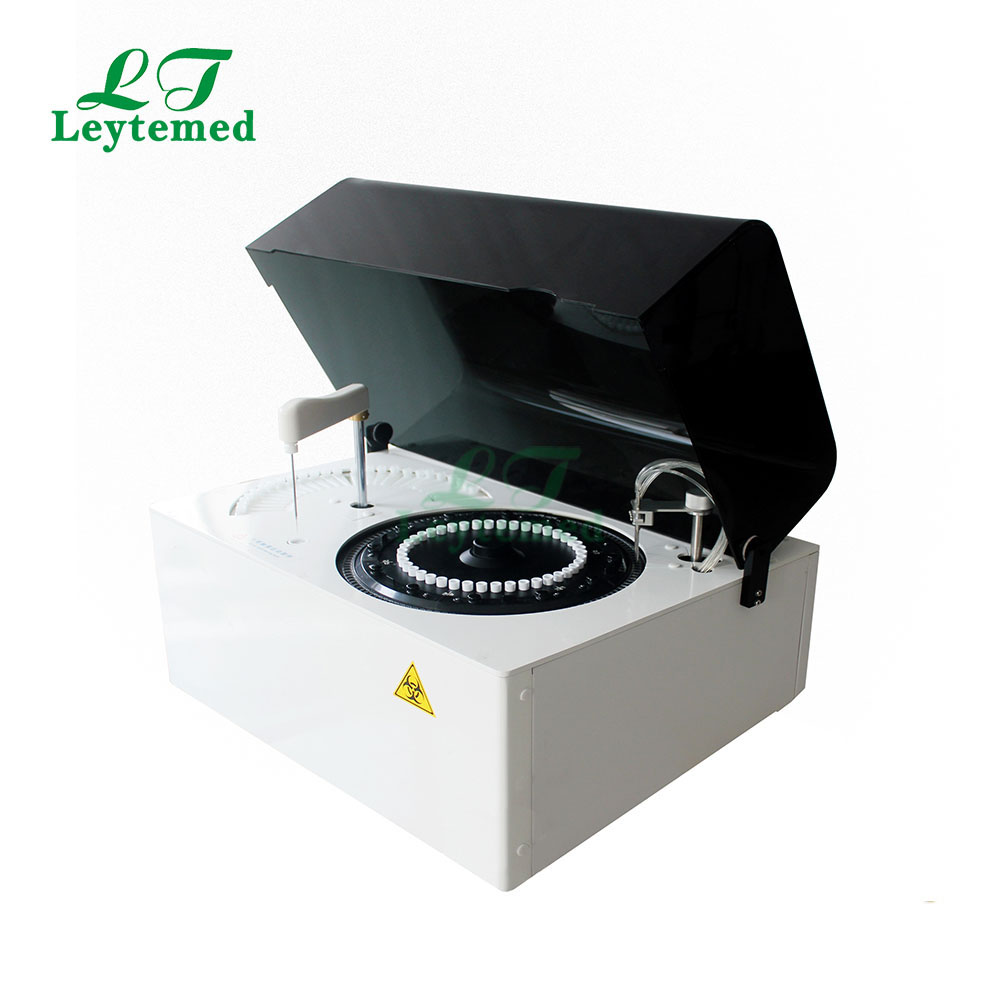

LTCC01 Automatic chemistry analyzer
  • LTCC01 Automatic chemistry analyzer
  • LTCC01 Automatic chemistry analyzer
  • LTCC01 Automatic chemistry analyzer
  • LTCC01 Automatic chemistry analyzer
  • LTCC01 Automatic chemistry analyzer
  • LTCC01 Automatic chemistry analyzer

  • No: LTCC01
  • Type: Chemistry analyzer
  • Dimension: Bench top: 750mm*520mm*600mm 45KG
  • Characteristics:

    Constant speed 200T/H (without ISE)

    42 sample positions, random access of all samples

    25 reagent positions

    Rotating tray, 120 cuvettes

  • Details
  • Pictures
  • Service
  • Q&A
  • LTCC01 Automatic chemistry analyzer

    Overall Performance

    Equipment type        Fully automatic discrete, STAT priority

    Analysis rate          Constant speed 200T/H (without ISE)

    Test principle          Colorimetry, turbidimetry

    Analysis method       End-point, 2 kinetics, fixed-time, etc. support single/double wavelength, linear and non-linear calibration


    Sample System

    Sample Tray          42 sample positions, random access of all samples

    Sample Volume       2-50ul, 0.1ul increment

    Sample probe         Liquid level detection, the remaining detection, collision protection etc.

    Sample Containers    Sample cups, Micro tube, Original blood-collection tube, etc.


    Reagent System

    Reagent Tray         25 reagent positions

    Reagent Volume      R1:25-300ul, R2:10-150ul, 0.1ul increment

    Reagent Probe        Liquid level detection, the remaining detection, collision protection etc.

    Reagent Refrigeration    4-15℃, independent power supply, 24-hour non-stop refrigeration


    Reaction System

    Reaction Tray        Rotating tray, 120 cuvettes

    Cuvette             Reusable high quality cuvette, Optical diameter 6mm

    Reaction Volume     180-500ul

    Incubation system    Bi-directional liquid-air device

    Temperature         37℃±0.1 with real-time display


    Optical System

    Light source           12V35W halogen lamps, over 2000 hours

    Photoelectron road     after spectrophotometry

    Wavelength           340,405,450,510,546,578,630,700nm

    Absorbance range     0-3.500Abs

    Resolution            0.0001Abs


    Operating System

    PC operating system       Windows XP or above

    Analysis control software      English version graphical operating software

    Report printing            Report formats support the user-defined mode, QC and state information etc.

    System connection        RS-232


    Working Conditions

    Power supply             AC 220V±22V, 50Hz±1Hz, power 1.5KVA

    Ambient Temperature     15-30

    Humidity                 35-80%

    Water consumption        5L/Hour

    Dimension                Bench top: 750mm*520mm*600mm

    Weight                   45KG


    Company Profile
    Guangzhou Leyte Medical Equipment Co., Limited
    We have been medical field for more than 10 years
     Speak fluent English, Received professional knowledge training
    Pre-Sales Service
    The professional team provides after-sales service online 24 hours a day.
    We offer OEM services.

    After-Sales Service
     One year warranty.
    More than 10 years of professional engineers help you solve problems


     Quality Workplace

     Good Labor relations

     testing equipment

     Competitive Price

     Reliable Performance

     High Quality

    Our Customer
    Our customers come from all over the world.
    Our main market is in Africa.
    There is the exhibition.Main exhibition is at Africa. Been to Kenya, South Africa, Nigeria, Dubai and Vietnam.

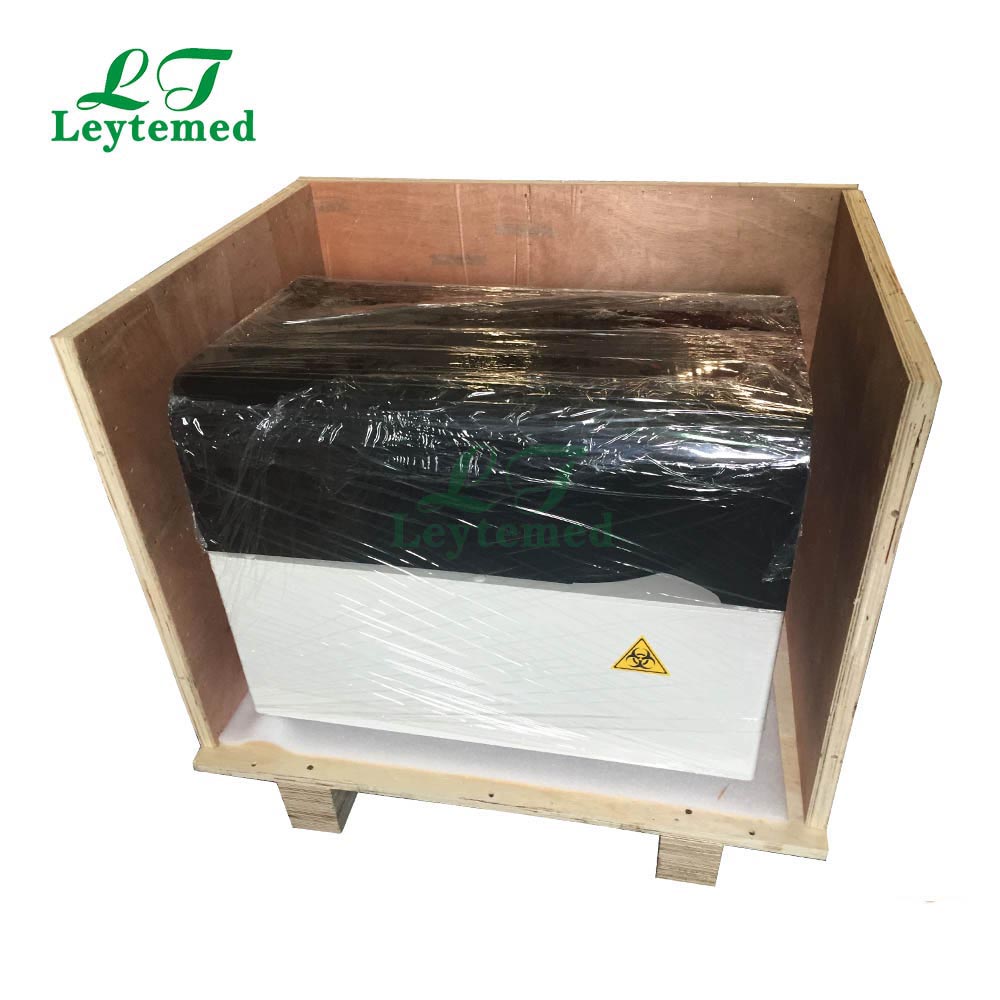

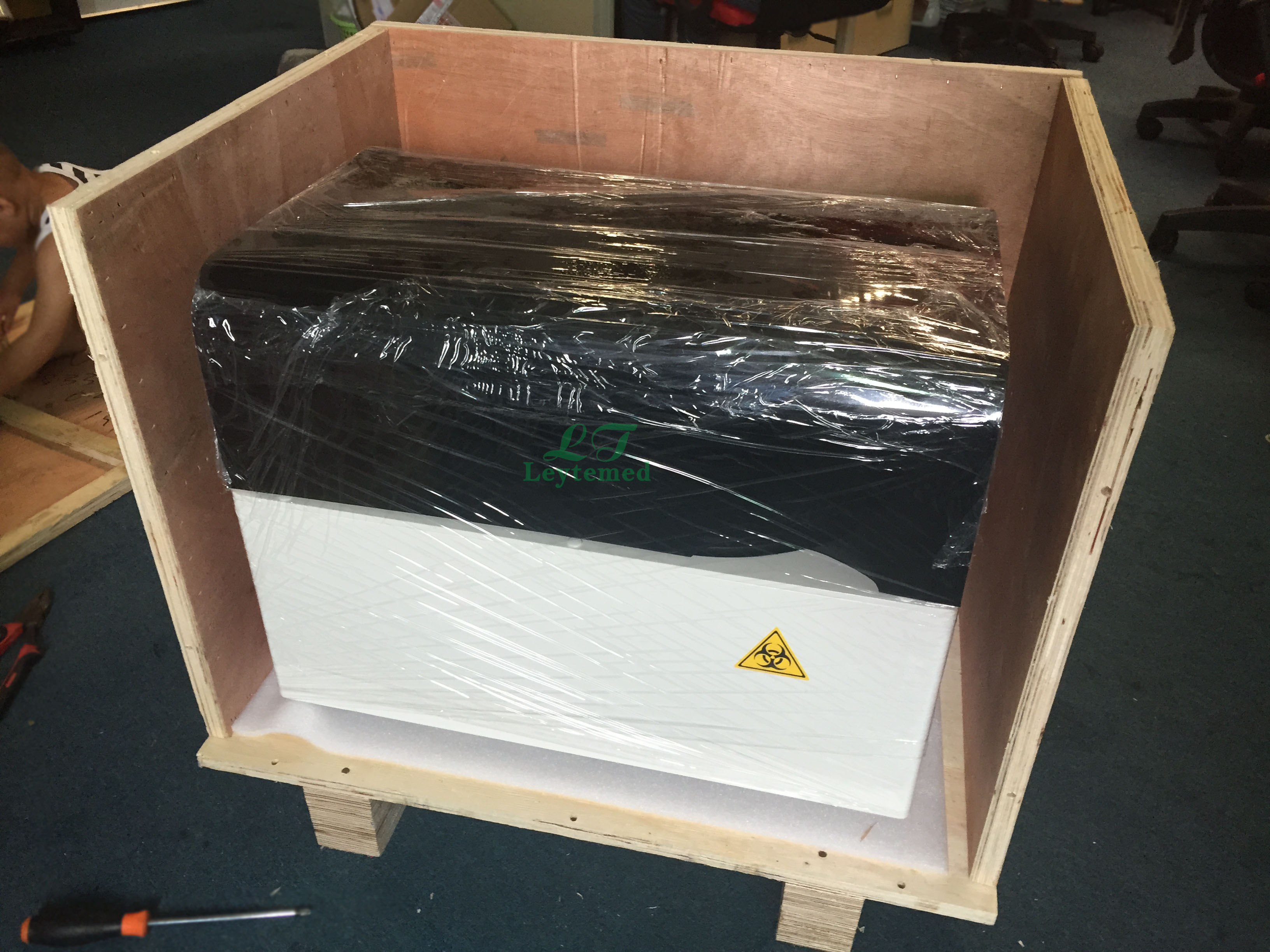

  • Packing & Delivery
    We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
    By Sea
    The volume of goods is large and needs to go by sea.It takes about one month to arrive.

    Aircraft transportation takes 2-7 days to arrive.

  • FAQ

    Q:What's the minimum order quantity (MOQ)?
    A:For most of our medical products, even order for only one unit is warmly welcomed.

    Q: Can you do OEM/ private label?
    A: Of course we can do OEM/private label for you.

    Q: What's your delivery time?
    A: Generally it is 10 days if the goods are in stock.
    or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How to ship the order?
    A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

    Q: What is your terms of payment ?
    A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
