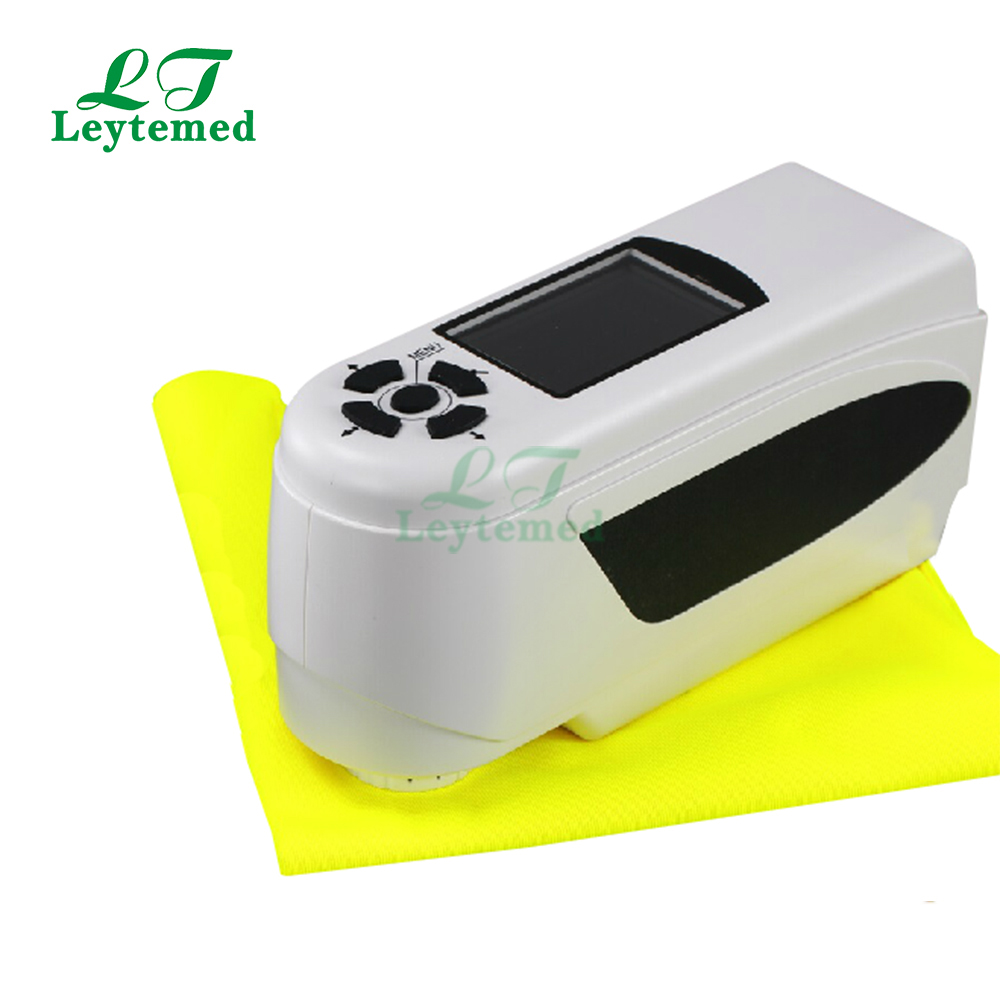

LTLN07 Colorimeter High-Quality Portable Colorimeter
Our colorimeter are widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, automotive, toy...industries.
NH310 is a mainstream brand colorimeter introduced by us which has synthesized the advantages of ten more traditional imported colorimeters and has experienced ten thousands tests and applied many innovative technologies. Accurate, Stable, Exquisite and Affordable!
The Preferred Solution for Color Quality Control Management
NH310 high-quality portable colorimeter has adopted multi-channel color sensors of international brands, more stable IC platform as well as efficient and accurate algorithms to provide users with accurate and fast color management and application. NH310 is also designed with ergonomics and humanized operation and it has applied for a number of patents. NH310 is a multifunctional colorimeter with high quality and competitive price. we insists on independent research whose technology innovation is unique in color management field. NH310 is the most convenient colorimeter for users.
1. Leading Humanity Design and Convenient Operation
a. Auto White and Black Calibration at Startup
b. Structure Design in line with Ergonomics
c. Easy-to-use Operator Interface
2. Stable Measurement Performance
a. The average fluctuation of △E is less than 0.06, actually more in 0.03~0.06.
b. Portable structure design which is more conductive to keeping the instrument stable when using.
3. Flexible and Accurate Locating
a. Camera locating can solve the problem of locating a small area. The minimum width of locating is 4mm.
b. Illumination locating is a fast, simple and convenient locating function which is the original function by us.
4. More Measurement Modes
a. Three measuring apertures for more circumstances.
b. Five color spaces for more color schemes selection.
c. Three light sources for more circumstances.
5. PC Software—Realize More Function Expansion
a. we has the intellectual property of PC software. The corresponding software serial number and password protection are configured in our colorimeter.
b. Can perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
6. Advanced Power Management Design
a. we are the first enterprise using high capacity Li-ion battery in colorimeter.
b. our Li-ion battery can be repeatedly charged which will save cost. Meanwhile, it can measure more than 3000 times on one charge to ensure the stability of long time measurement.
Light Source Customization for NH310 Colorimeter
LTLN07colorimeter has many functions which can measure color fastness, whiteness (Hunter and ISO R457), Yellowness (YI), etc. However, we can also customize the following light sources for customers.
· C
· F2(CWF)
· F6
· F7(DLF)
· F8
· F10(TPL5)
· F11(TL84)
· F12(TL83/U30)
Specifications of LTLN07 Colorimeter
Model | LTLN07 |
Display Mode/Color Space | CIE L*a*b; CIE XYZ; CIE RGB;CIEL*u*v; CIE*C*H; Whiteness &Yellowness; Color Fastness |
Color Difference Formula | ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter |
Illuminating/viewing geometry | 8/d (8°illumination angle/diffuse viewing) |
Light Source | LED blue light excitation |
Detector | Silicon photoelectric diode |
Measuring Aperture | Φ8mm; Φ4mm; Φ8mm extended aperture (optional) |
Measuring Conditions | Observer: CIE 10° Standard Observer Illuminant: CIE Standard Illuminant D65; D50; A |
Measuring Range | L: 0 to 100 |
Repeatability | Standard deviation within ΔE*ab 0.06 (Measurement Conditions: Average of 30 measurements of standard white plate) |
Minimum Interval Between Measurement | Approx. 1 sec |
Battery Life | More than 3000 measurements |
Lamp Life | more than 1.6 million times in 5 years |
Display | TFT True-color; 2.8 inch@(16:9) |
Interface | Model B: USB RS-232: Baud rate 19200bps |
Operating Temperature Range | -10℃ to 40℃ |
Storage Temperature | -20℃ to 50℃ |
Humidity Range | less than 85% relative humidity, no condensation |
Weight | 500g |
Dimensions | 205 x 70 x 100 mm |
Size of the Packing | 435 x 205 x 345mm |
Standard Accessories | AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm and Φ4mm Measuring Aperture |
Optional Accessories | extended aperture(Φ8mm); Mini-printer; Printer Cable; Powder Test Box; Universal Test Components *Note: The specifications are subject to change without notice. |
