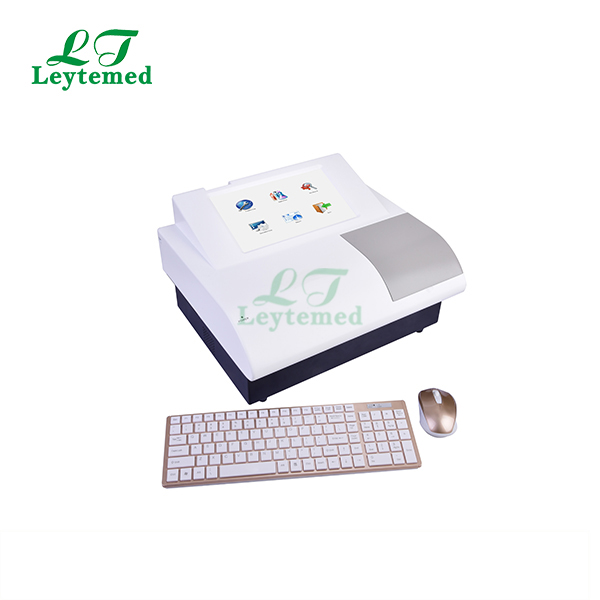

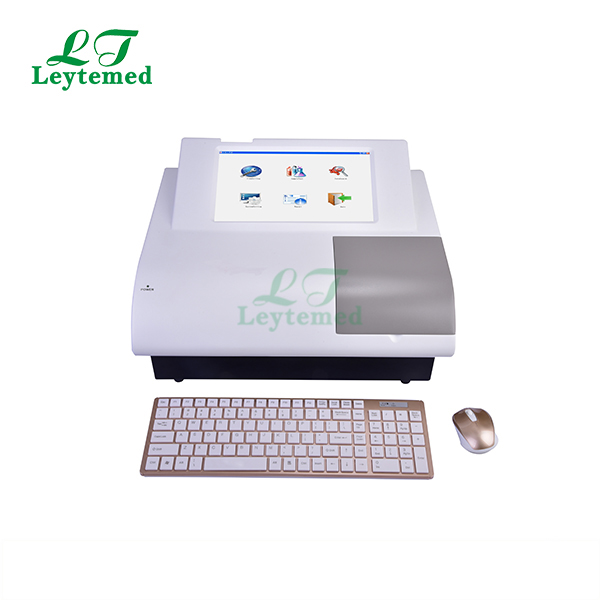

LTCM01 portable elisa microplate reader
No: LTCM01
Type: Elisa/ Microplate reader and whaser
Dimension: 44CM*37CM*24CM
Characteristics:
Reading range: 0.000-4.000 Abs
Measurement range: 0.000-3.000Abs
Light source: LED, >100,000 hours

Prev：LTCM02A elisa automatic microplate washer

Next：LTCM02B Lab automatic Microplate Washer

Details
Pictures
Service
Q&A

LTCM01 microplate reader
Specification sheet
Feature
Windows operation interface, figure button, mouse operation, touch screen.
96-well plate, multiple tests in the single plate.
Arrangement of Test item in micro-plate can be store and re-use
Parameter can be modified and stored
Plate shaking, speed and time adjustable
Open system, test item and parameters can be added or modified.
Large storage for 1000 test item and 1,000,000 results
10.4 inch color touch LCD
Printing comprehensive report, include hospital and patient information and test results
Built-in portable computer, easy to use.
Specifications
Microplate types: 96-well plate(U,V,or plat-bottom)
Wavelength: 405nm,450nm,492nm,630nm,4 free positions for additional filters
wavelength accuracy < 2nm
Reading range: 0.000-4.000 Abs
Measurement range: 0.000-3.000Abs
Light source: LED, >100,000 hours
Measuring system: 8-channel optical system
Test mode: End-point, kinetic, Multi-wave analysis
Resolution<1% or ±0.001Abs
Stability: <±0.005Abs/10min
Well Coincidence:≤0.015A
Linearity: r > 0.999
Repeatability: < 0.3%
Reading speed: 5s single wavelength , 10s double wavelength
QC: West guard Multi-rule, automated QC alert.
Self-Checking function: Self-checking and calibration function.
CPU: High-speed CPU
Printer: External jet printer, multi-form patient report.
Interface: RS232 interface, USB.
Power supply: 220VAC 15% or 110VAC 15%50-60Hz 100W
Work environment: Temp 5℃—40℃；Humi ≤85%;
Machine Dimension: 44CM*37CM*24CM
Weight: 13 KG

Packing & Delivery
UPS/DHL/FEDEX/TNT
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
By Sea
The volume of goods is large and needs to go by sea.It takes about one month to arrive.

Aircraft
Aircraft transportation takes 2-7 days to arrive.

FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
