LTLM23 Inverted Biological Microscope
No: LTLM23
Type: Microscope
Dimension:
Characteristics:

Prev：LTLM20 Biological Microscope

Next：LTLM25 20x binocular stereo microscope

Details
Pictures
Service
Q&A

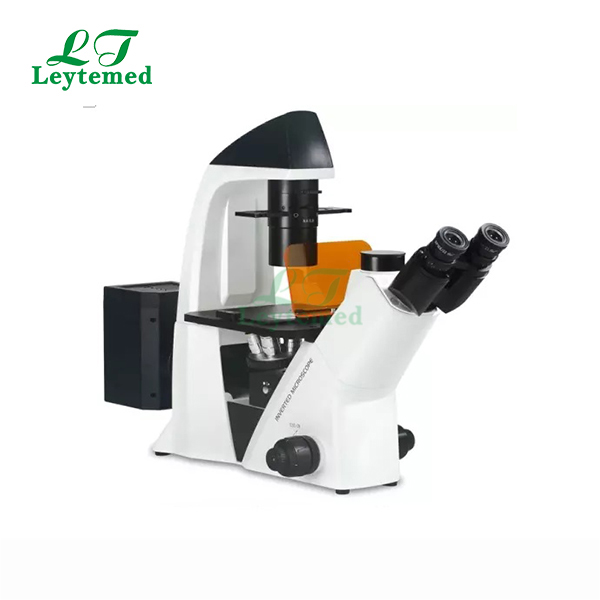

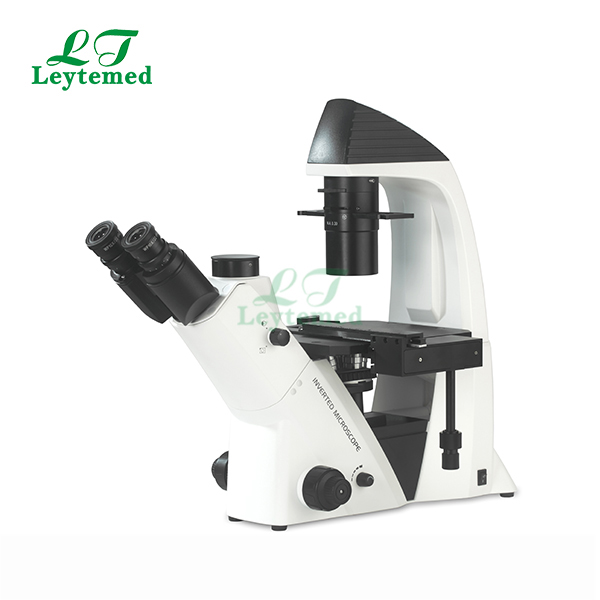

LTLM23 Inverted Biological Microscope

Note: "*"In Table Is Standard outfits, "#" Is Optional Accessories.

Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs

Item	Specification		Outfits
Eyepiece	WF10x/22mm(23mm is optional)		**
LWD Infinity Plan Objectives	LPL 4x/0.11	W.D.=12.1mm	#
	LPLAN 10x/0.25	W.D.=8.3mm	*
	LPLAN 20x/0.40	W.D.=7.2mm	*
	LPLAN 40x/0.60	W.D.=3.4mm	*
LWD Infinity Plan Phase Contrast Objectives	LPL Ph P 10x/0.25	W.D.=8.3mm	#
	LPL Ph P 20x/0.40	W.D.=7.2mm	*
	LPL Ph P 40x/0.60	W.D.=3.4mm	#
Annular Spot	10x		#
	20x/ 40x( for both 20x; and 40x )		*
Seidentopf Trinocular Head	Inclined 45 interpupilary distance: 48-76mm Light distribution (both): 100: 0(100% for eyepiece) 80:20 (80% for trinocular head, and 20% for eyepiece)		*
Nosepiece	Quintuple		*
Mechanical Stage	Stage size: XxY: 210x241mm, Round slide size:110mm, Attached mechanical stage (available for 96 holes plate, moving range XxY:128x80mm.)		*
Culture Dish Holder	65mm		#
	54mm		*
	35mm		#
Condenser	Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser).		*
Koehler Illumination	6V/30W (input voltage:100V~240V)		*
Filter	Blue		*
	Green		*
	Amber		#
	Grey		#
C-mount	1xC-Mount (better for digital photograph)		#
	0.5xC-Mount ( focus adjustable, better for digital camera)		#
Adaptor for Digital Photograph	Use for CANON/NIKON/OLYMPUS etc.		#
Epi Fluorescence Illumination	Epi fluorescence unit , field diaphragm,center adjustable.		#
	100W mercury lamp (OSRAM)		#
	B, G, V, UV fluorescence filters can be chosen.		#
	Digital mercury lamp power box (input voltage:100V~240V)		#
