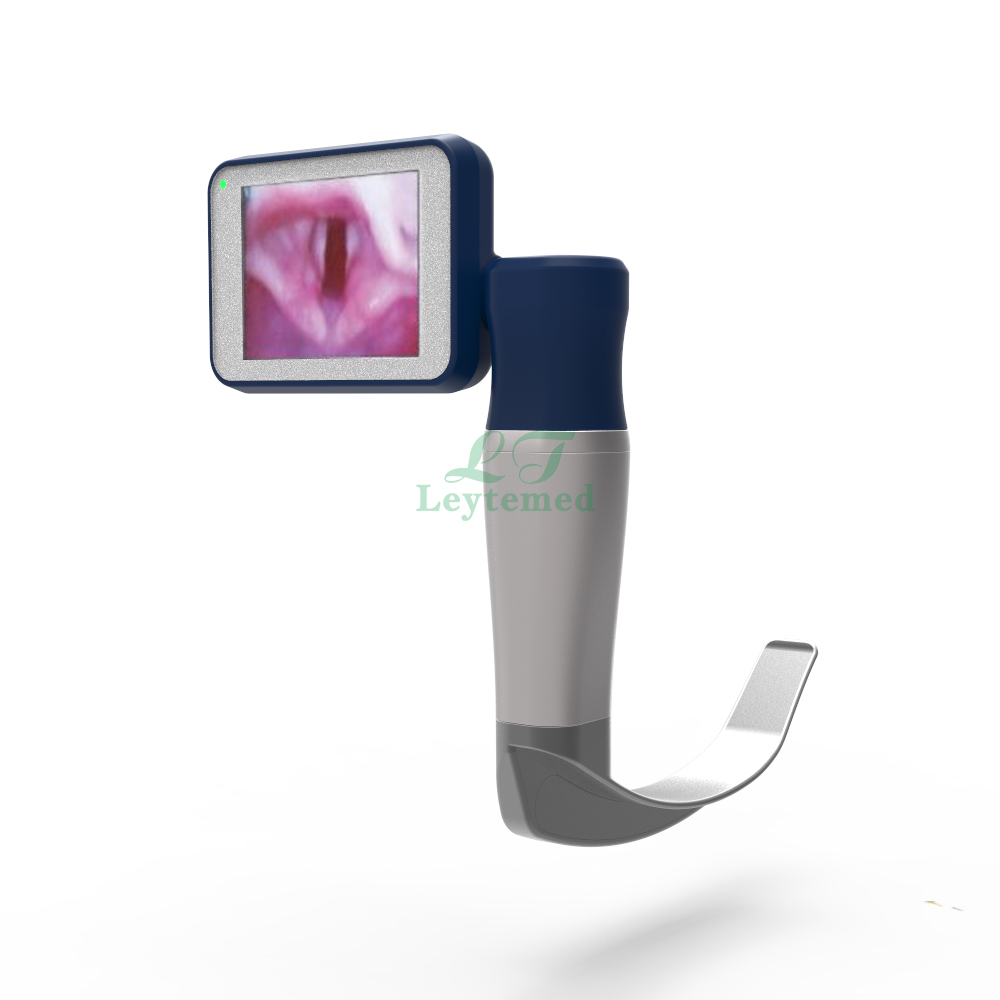

LTVL04 Reusable Video Laryngoscope
  • LTVL04 Reusable Video Laryngoscope
  • LTVL04 Reusable Video Laryngoscope
  • LTVL04 Reusable Video Laryngoscope
  • LTVL04 Reusable Video Laryngoscope

  • No: LTVL04
  • Type: Endoscope accessories
  • Dimension:
  • Characteristics:

    Battery rechargeable


  • Details
  • Pictures
  • Service
  • Q&A
  • Features:

    Anti fog coating on distal lens

    Video/Photo function
    Battery rechargeable
    One button Only, Fast and simple operation
    360 °All sight LCD, no blind spot

    Application range:
    Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
    ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance, ENT etc.
    Clinical training and teaching of tracheal intubation.

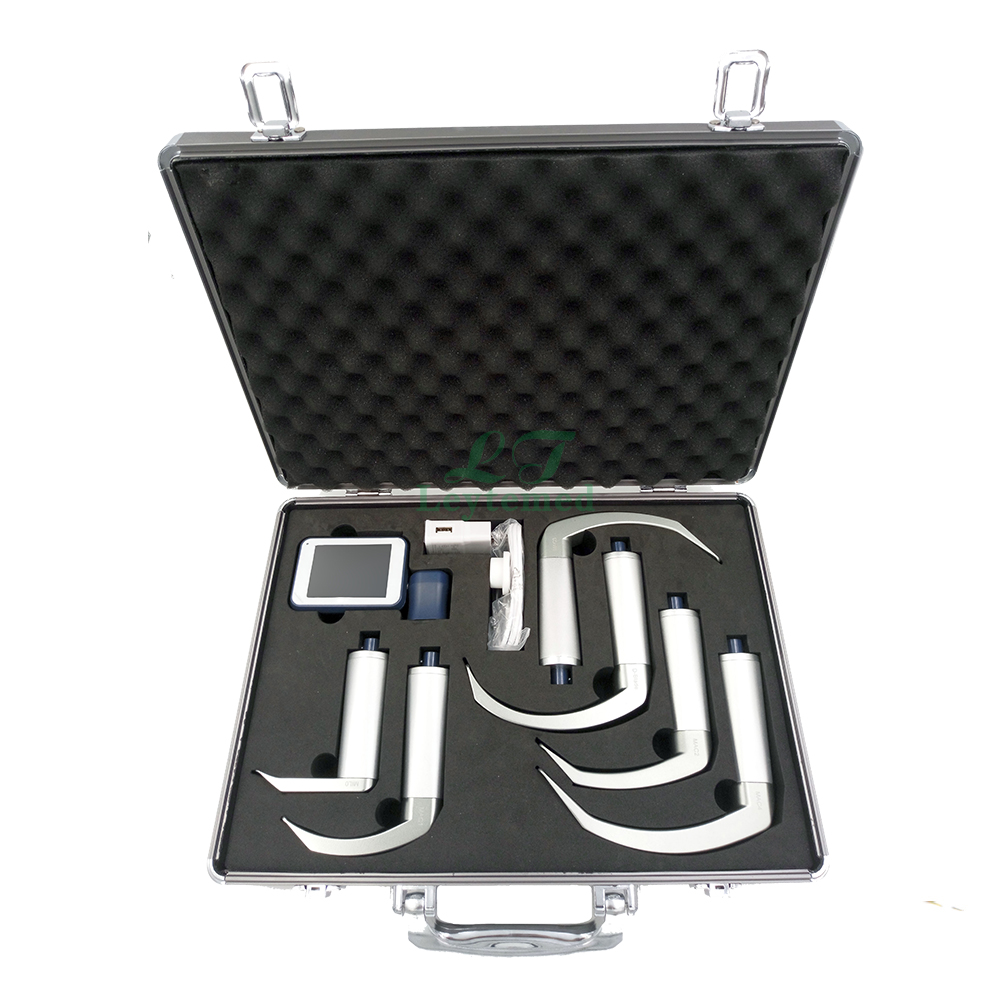

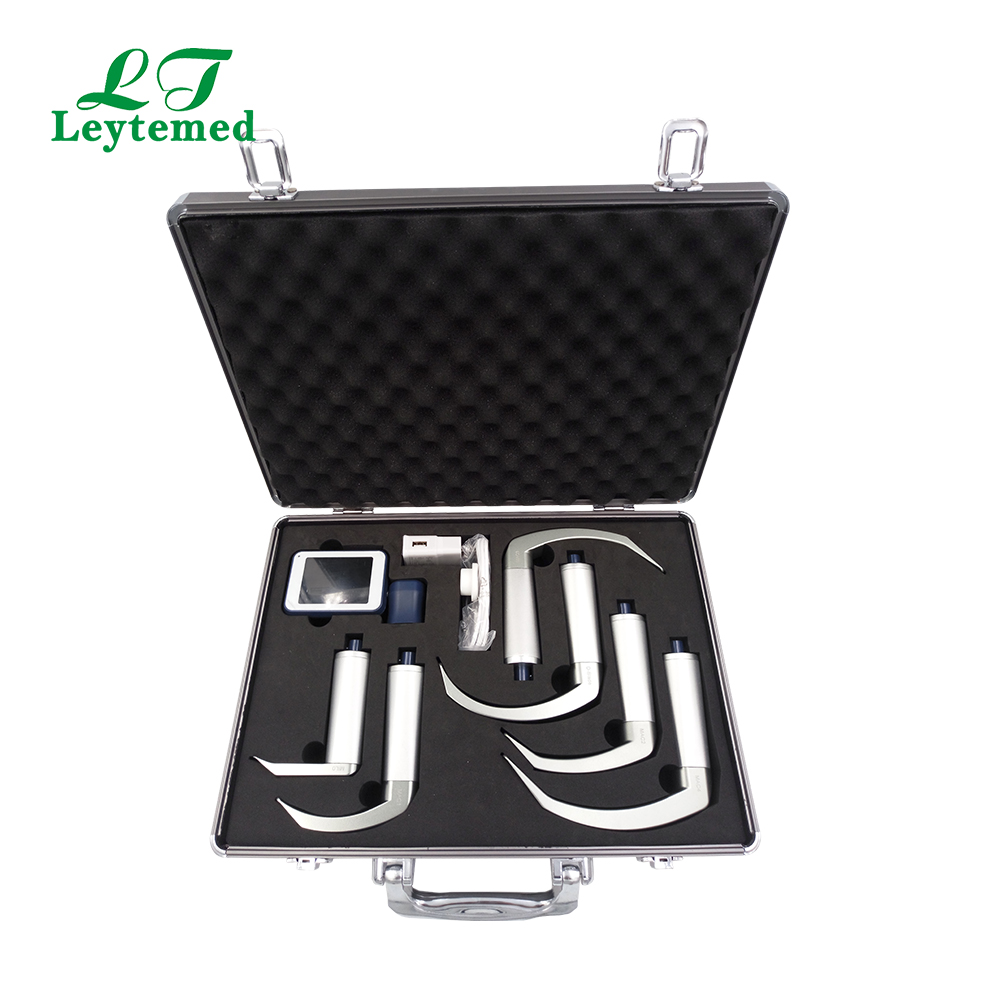

    LTVL04 Reusable Video Laryngoscope reusable blades Parametric diagram:


    Blade

    Mil0

    Mac1

    Mac2

    Mac3

    Mac4

    D-blade

    Group

    Neonate

    Pediatric

    Small adult

    Adult

    Large Adult

    Difficult airway

    tracheal tube ID(mm)

    2.5-4.0

    4.0-6.0

    5.0-6.0

    6.0-9.0

    7.5-10.0

    7.5-10.0

    Length(cm)

    8.2

    10.45

    12.11

    14.25

    16.08

    13.27

    Name

    Technical names

    Technical indicators

    Machine parameters

    Displayer

    3.0"(LCD)



    Angle of vision

    ≥60º



    Charging times

    >300times



    Resolution

    1280*720p



    Power consumption

    <2W



    Illuminance

    150 LUX



    Rotating angles of the monitor in front & rear

    0 º~130 º



    Weight

    220g



    Image/ Video function

    USB output



    Memory type

    Micro SD card 8GB

    Charger

    Charger input

    110V~220V50Hz



    Charger output

    4.2V500mA



    Charging time

    <4(hrs)

    Working environments

    Temperature

    -5℃~+50℃



    Humidity

    10%~90%



    Atmospheric pressure

    860~1060hpa

    Storage environments

    Temperature

    -40℃~50℃



    Humidity

    ≤93%



    Atmospheric pressure

    500~1060hpa
