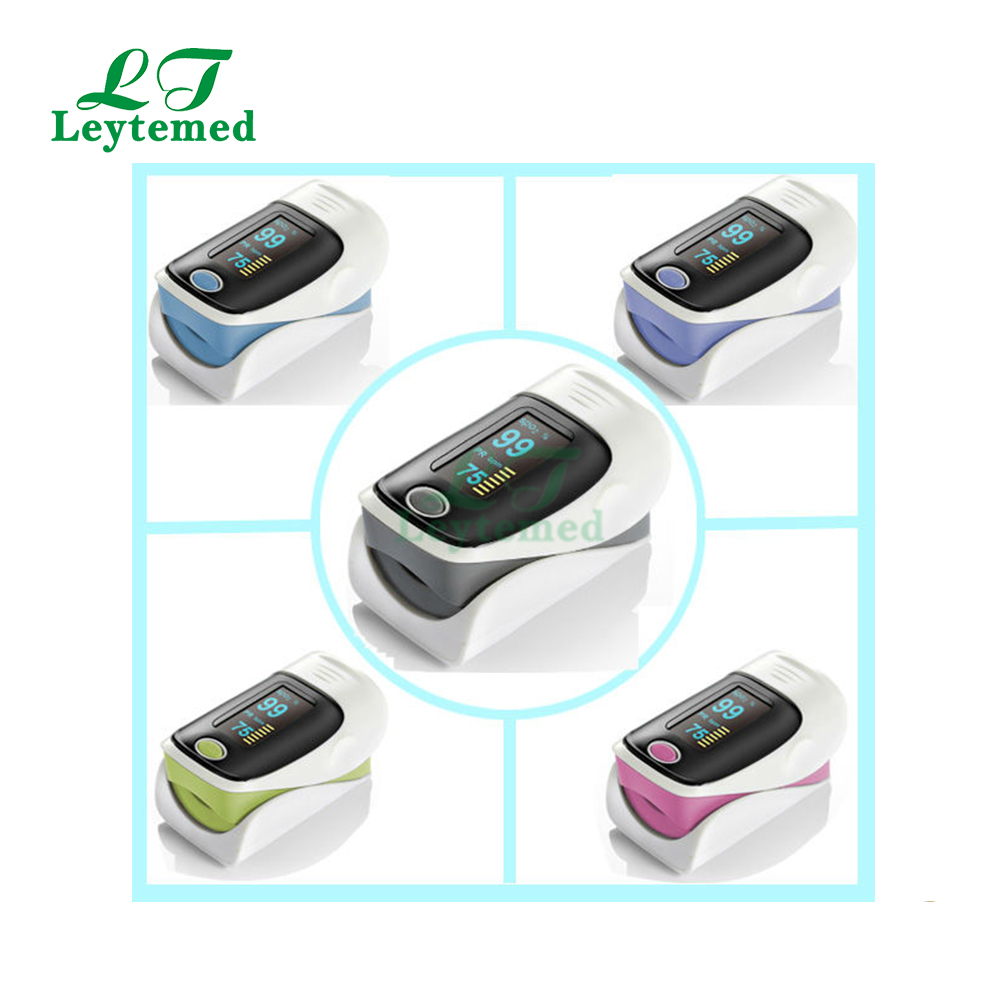

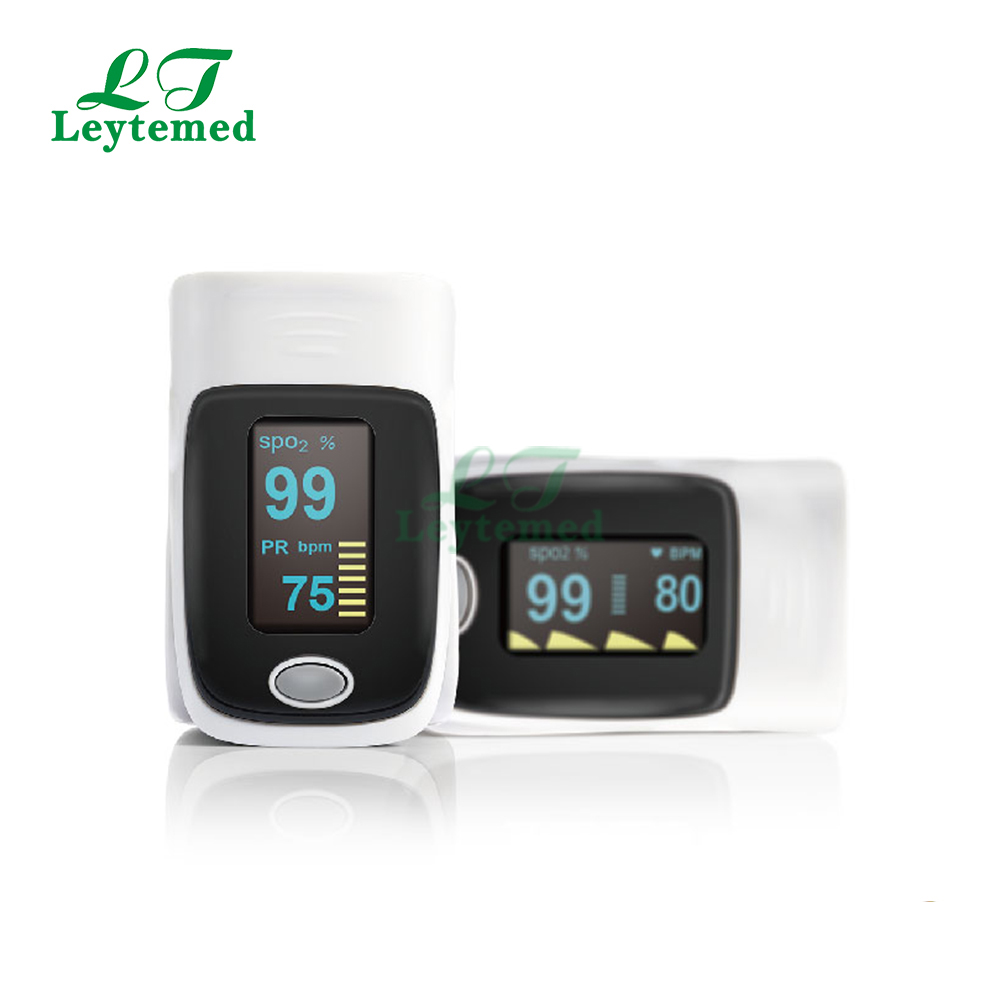

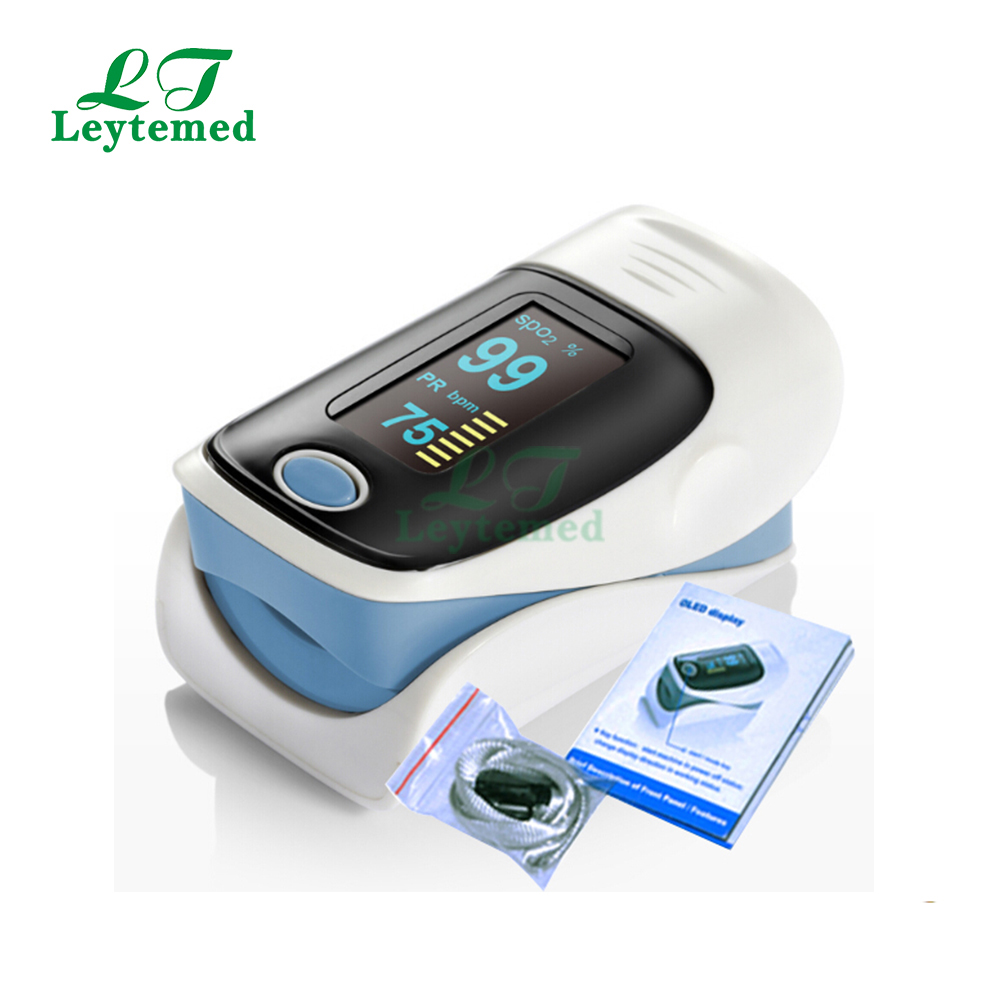

LTO-80 Finger Pulse Oximeter
  • LTO-80 Finger Pulse Oximeter
  • LTO-80 Finger Pulse Oximeter
  • LTO-80 Finger Pulse Oximeter
  • LTO-80 Finger Pulse Oximeter

  • No: LTO-80
  • Type: Pluse oximeter
  • Dimension:
  • Characteristics:

    Low power consumption,50 hours continuous to work.
    - Low Perfusion ≤0.4%


  • Details
  • Pictures
  • Service
  • Q&A
  • Fingertip Pulse Oximeter:Features

    - Reliable accuracy and durability
    - Two Color OLED Display, four display modes.
    - 4-Direction Display adjustable.
    - Low voltage indicator, Real-time spot-checks.
    - Low power consumption,50 hours continuous to work.
    - Low Perfusion ≤0.4%
    - Automatic power off when no signal
    - Small and light weight, convenient to carry
    - Widely used in hospital, home healthcare, oxygen bar,

      community medical centre, alpine area, sports healthcare etc.

    Product Operation Scope:

    Fingertip Pulse Oximeter is a portable non-invasive, spot-check, oxygen saturation

    of arterial hemoglobin (SpO2) and pulse rate of adult and pediatric patient at home,

    and hospital (including clinical use in internist/surgery, Anesthesia, intensive care etc).

    It is not for continuously monitoring.

    Fingertip Pulse Oximeter:Specification

    Display

    OLED two color display,waveform display

    SpO2



    Measurement range: 70~99%
    Resolution: ±1%
    Accuracy: &plusmn;2% (70%~99%), unspecified (<70%)

    Pulse rate



    Measurement range: 30~240 bpm
    Resolution: &plusmn;1%
    Accuracy: &plusmn;2bpm or &plusmn;2% (select larger)
    Low Perfusion &le;0.4%

    Power



    1.5V (AAA size)
    alkaline battery x 2
    Supply voltage: 2.6~3.6V

    Working current

    &le;30mA

    Automatic power-off

    Automatically power off when no signal in the oximeter

     for more than 8 seconds

    Dimension and weight

    62*32*33mm

    65g(without batteries)
