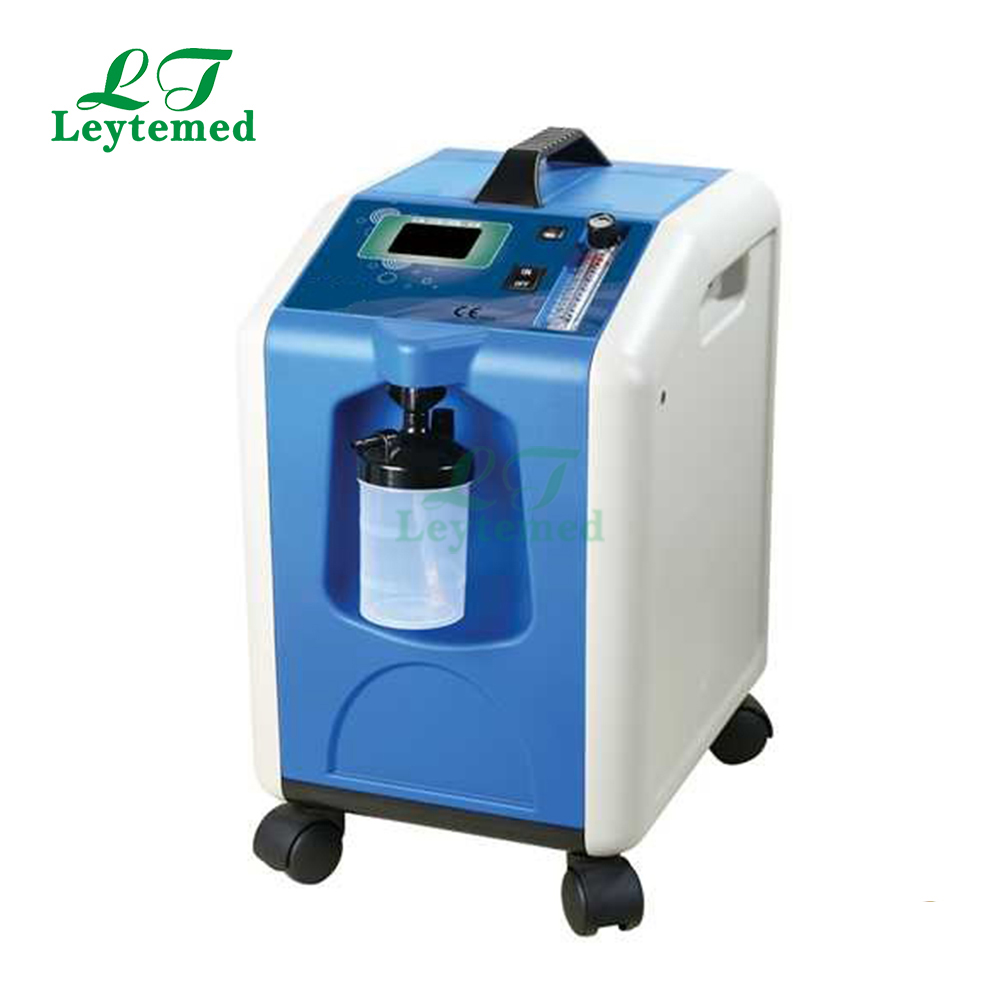

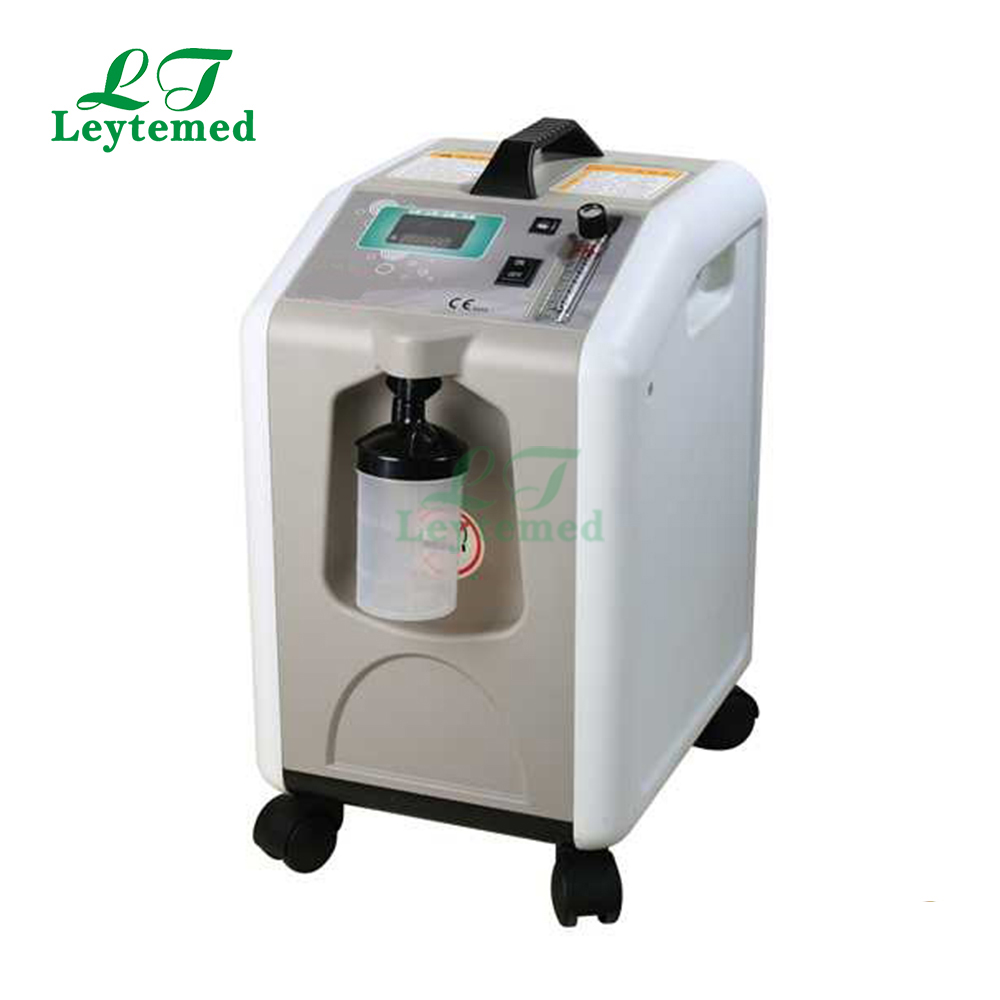

LTCP301 LTCP501 LTCP801 LTCP101 Oxygen Concentrator (Blue or Grey)
  • LTCP301 LTCP501 LTCP801 LTCP101 Oxygen Concentrator (Blue or Grey)
  • LTCP301 LTCP501 LTCP801 LTCP101 Oxygen Concentrator (Blue or Grey)
  • LTCP301 LTCP501 LTCP801 LTCP101 Oxygen Concentrator (Blue or Grey)
  • LTCP301 LTCP501 LTCP801 LTCP101 Oxygen Concentrator (Blue or Grey)

  • No: LTCP301 LTCP501 LTCP801 LTCP101
  • Type: Oxygen generators
  • Dimension:
  • Characteristics:

    Absolutely low noise ,under 40dB(A)


  • Details
  • Pictures
  • Service
  • Q&A
  • LTCP301 LTCP501 LTCP801 LTCP101 Oxygen Concentrator (Blue or Grey)

     Flow: 10LPM

    Purity: 93% ±3%

    Machine  Dimension: 400*300*510mm

     NW:20.5kg

    GW: 25kg

    Voltage: 220V/50HZ  or 110V/60HZ

    Noise: <52dBA

    Pressure: 60~85kPa

    Power: 650WAver)



    Absolutely low noise ,under 40dB(A)

    Lower power consumption,saving the operation cost

    Compact design,lightweight

    24/7 continuous operation with stable performance

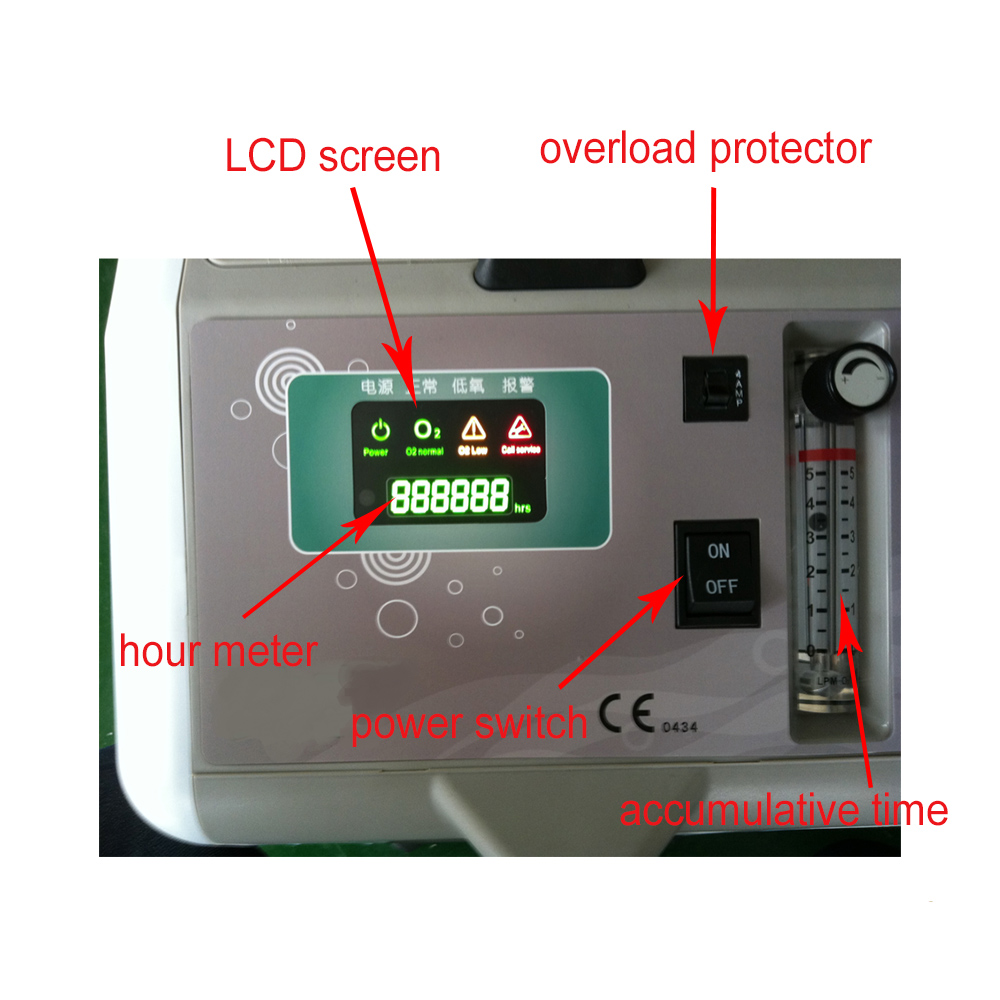

    LED display panel for comfortable view

    One-button control ,convenient for aged users

    Accurate alarm system,easy to monitor device’s operation


    Model

    LTCP301

    LTCP501

    LTCP801

    LTCP101

    Volume

    3L

    5L

    8L

    10L

    Flow

    1L-3LPM

    1L-5LPM

    1Ll-8LPM

    1L-10LPM

    Pressure

    40-60kPa

    40-60kPa

    80-85kPa

    80-85kPa

    Voltage/Frequency

    220v/50hz or 110v 60hz

    Purity

     93% &plusmn;3%

     93% &plusmn;3%

     93% &plusmn;3%  (1-7LPM)

     91% &plusmn;2%  (8LPM)

     93% &plusmn;3%  (1-9LPM)

     90% &plusmn;2%  (10LPM)

    Operation Environment

    Temperature 5-40 degree,Humidity less than 80%,Atmospheric pressure 86kPa-106kPa

    Power consumption

    210W(Ave)

    270W(Ave)

    480W(Ave)

    650W(Ave)

    Net Weight

    11.8KG

    13.8KG

    19.5KG

    20.5KG

    Machine size

                        400*300*510mm
