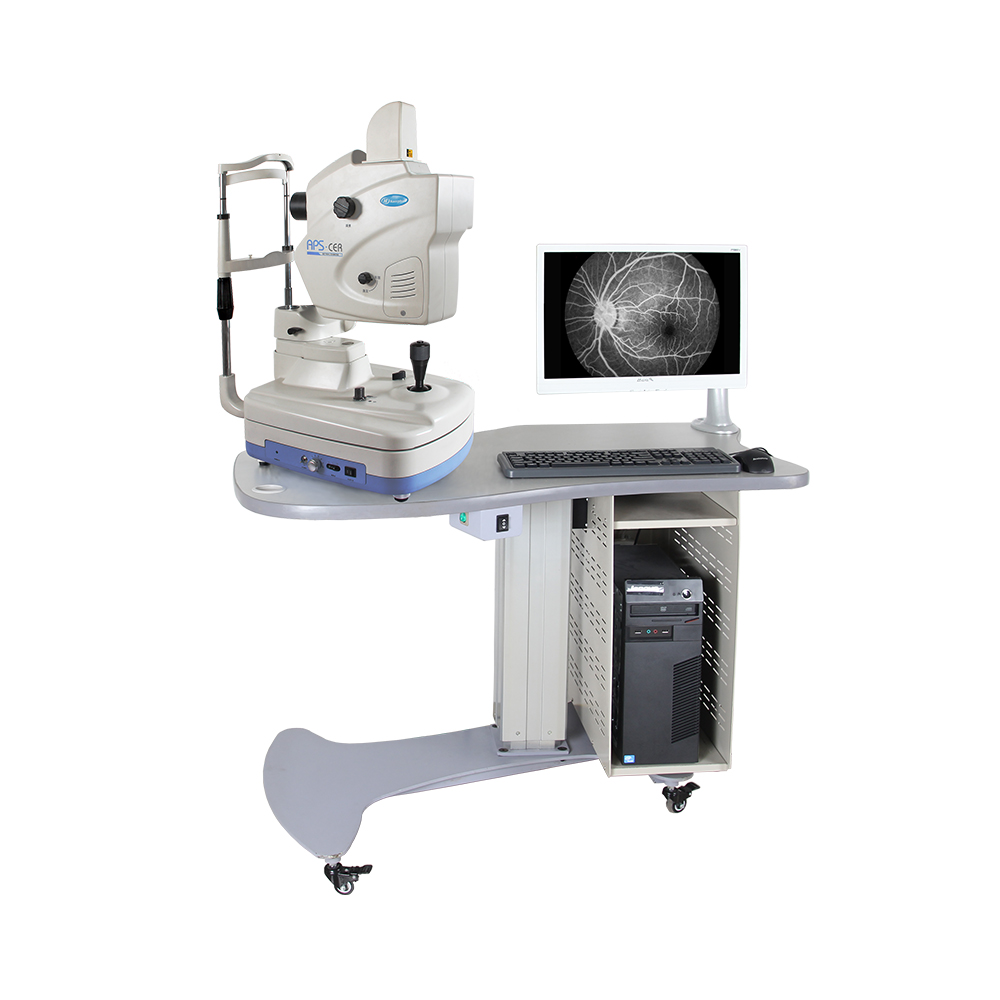

LTAE02B Fundus camera & FFA
  • LTAE02B Fundus camera & FFA
  • LTAE02B Fundus camera & FFA

  • No: LTAE02B
  • Type: Fundus Camera
  • Dimension:
  • Characteristics:

    The moving distance between the front and back: 60mm;

    The moving distance between right and left: 120mm;

    The moving distance between up and down: 30mm.


  • Details
  • Pictures
  • Service
  • Q&A
  • LTAE02B Fundus camera & FFA

    Technical Specifications

    Working Distance: The distance from cornea is 40mm, Errors: ±2mm

    Field of Vision Scope: 42°-53°

    Horizontal Angle: ±30°

    Up and down Angle: ±12.5°

    The Size of Outer Ring: φ7.4mm;

    The Size of Inner Ring: φ4mm

    Filters: Stimulating Filter (red&blue);

    Depth of field contraction distance: ≥5mm

    Refractive compensation+15D

    Seat movement scope:

    The moving distance between the front and back: 60mm;

    The moving distance between right and left: 120mm;

    The moving distance between up and down: 30mm.

    Working Environment

    Temperature: -5℃--40℃;

    Relative Humidity: ≤85%;

    Atmospheric Pressure: 700hPa--1060 hPa;

    Power: AV 220V±22V;

    Frequency: 50Hz±1Hz;

    Input Power: ≤300W.

    Function:

    Non-mydriatic

    Auto detected the eye position

    Pupil size: 3mm

    Illumination source: infrared

    Auto /manual focus

    Auto adjust flash intensity /illumination intensity according patient pupil size

    Five internal fixation lamp/external fixation lamp

    Image resolution: 10Mega

    Fundus fluorescein angiographyPicture FFA image:FFA

    Video FFA image: FFA
