Hematology analyzer
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.

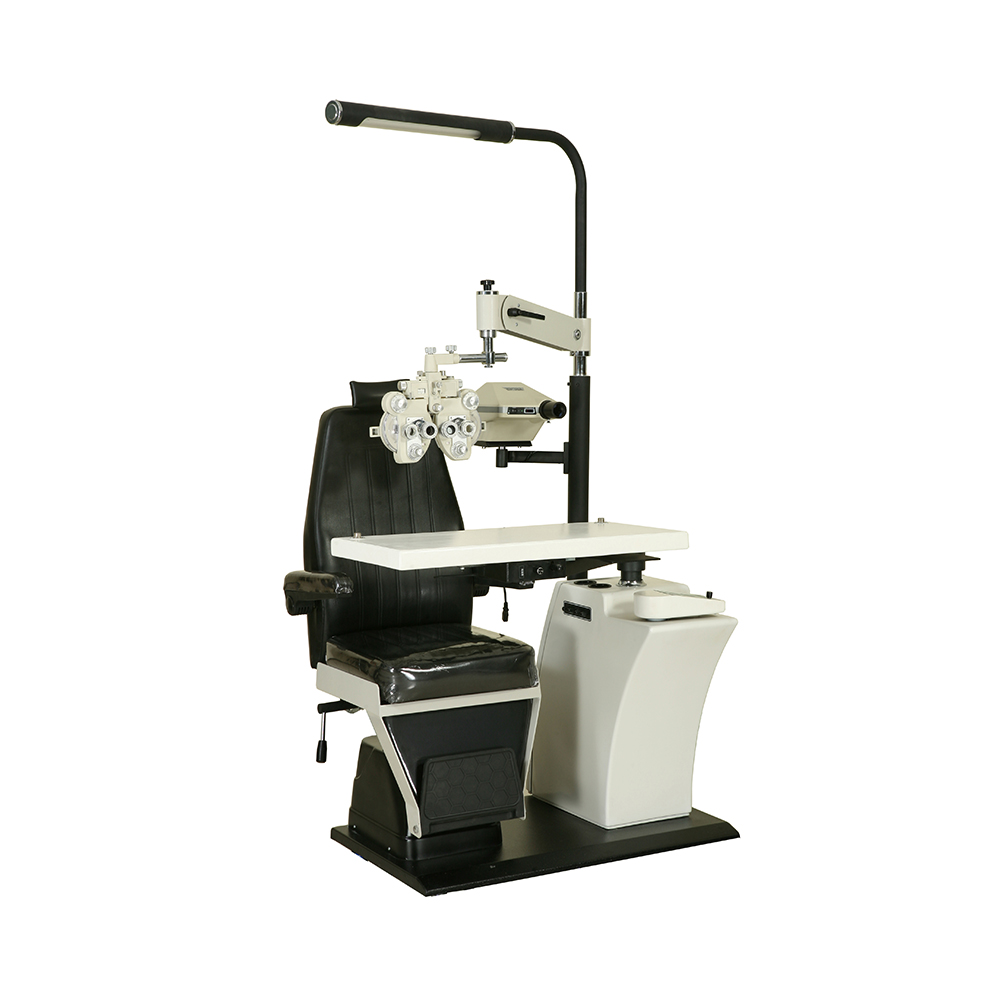

Features
·Adopts Europe style in appearance designing, simple structure, good performance, and easy operation.
·Hand-operated phoropter arm can swing up and down, left and right to its best position, which shows the human-oriented design of it.
·Worktable provides with 90 degrees’ rotation.
Sliding table to accommodate two instruments.
Table instrument voltage selectable, 3V, 6V, 9V, 12V, and 24V (50W)
Auxiliary 110V/220V output under table
·Overhead light and table voltages are variably controlled via dimmer switch
·The comfortable chair can smoothly lift up and down with low noise and able to bear big force.
·Choosing different styles on the basis of inner structure of shop
Specification:
Mechanical Parameters
Up/Down angle of swing arm: ±30°
Table size: 840mm×405mm
Table rotational angle: 90°
Table sliding movement: 330mm
Angle of rotation for chair: ±60°
Lifting height for chair: 150~200mm
Loading for chair: 70~150kgs
Lifting height for pillow: ＋150mm
Backrest obliquity: 90°~135°or 140°
Electrical Parameters
Input voltage: 110V/220V AC 50Hz~60Hz
Engine power: 55W 24V DC
Light luminaire: 16W 110V/220V AV
Fuse: 5A 250V AC
Power without load: 1W
Pressure test: 2KV
Main wire: 10A 250V
Working mode: S1
Working temperature: －30º~＋50º
Relative humidity: less than 90%
Force of pressing key: 1~5N
Cooling mode: Nature cooling
Installation Dimension
Figure size: 1140mm×1000mm×2030mm
Weight: 165kgs
