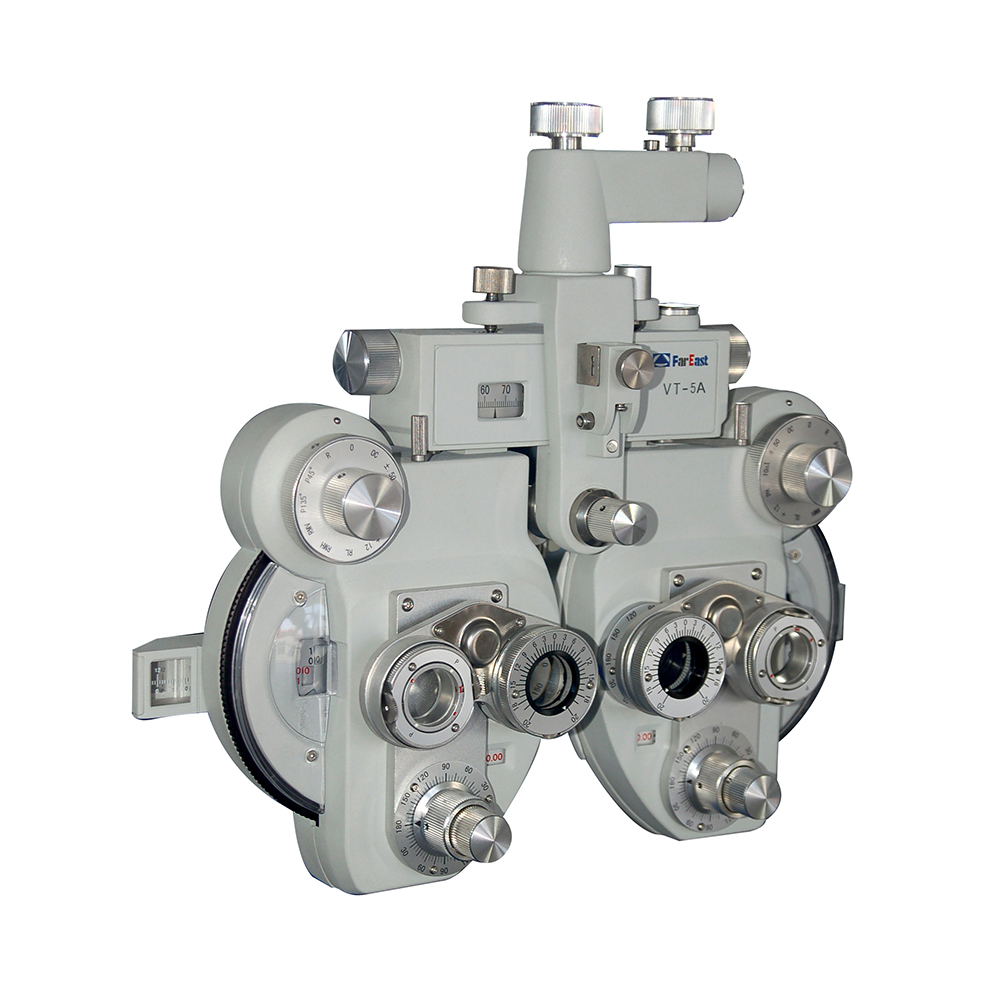

LTAE15 Phoropter(view tester)
  • LTAE15 Phoropter(view tester)
  • LTAE15 Phoropter(view tester)

  • No: LTAE15
  • Type: Other medical machine for eye
  • Dimension:
  • Characteristics:
  • Details
  • Pictures
  • Service
  • Q&A
  • Features

    ·Top-grade quality View Tester.

    ·Elegant design of butterfly-shape appearance

    ·Capable of checking up all-sided visual functions, precise and comfortable in measurement

    ·Exquisite manufacturing technique, with comfortable feel

    ·High grade plated-film used in all optic lenses

    ·This device is applicable to ophthalmology department of hospitals and spectacle stores for precision measurement of visual functions such as myopia, hyperopia, astigmatism, eyesight balance, heterophoria, stereoscopic vision and eyesight amalgamation

    ·Two colors choice



    Sphere powers range: +16.75D to19.00D, with minimum reading 0.25D or 0.12D

    (When +0.12D auxiliary lens or optional±0.12D lens is in use)

    +26.75D to29.00D (When optional ±10.00D lens is in use)

    Cylinder power range: 0 to6.00D, with minimum reading 0.25D or 0.12D (when auxiliary lens is in use)

    0 to8.00D (when2.00D auxiliary lens is in use)

    Astigmatic axis scale: 0 to 180° in 5° steps

    Cross cylinder:±0.25D, reversal type (synchronized with astigmatic axis)

    Rotary prism: 0 to 20∆D in 1∆D step

    Interpupillary adjustment: 48mm to 80mm in 1mm step (right and left synchronized)

    Forehead rest adjustment: 16mm backward and forward

    Convergence: The optical axes of the lenses are aligned at a distance of 400mm from the vertexes of the corneas (2mm each for right and left inward)

    Interpupillary distance enabling convergence=57mm to 80mm

    Corneal distance device: 2mm forward and 5mm backward from standard plane; with scale

    Effective field of view: 19mm

    Weight: 5kgs

    Size: 291—323×315×85

  • Packing & Delivery
    We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
    By Sea
    The volume of goods is large and needs to go by sea.It takes about one month to arrive.

    Aircraft transportation takes 2-7 days to arrive.

  • FAQ

    Q:What's the minimum order quantity (MOQ)?
    A:For most of our medical products, even order for only one unit is warmly welcomed.

    Q: Can you do OEM/ private label?
    A: Of course we can do OEM/private label for you.

    Q: What's your delivery time?
    A: Generally it is 10 days if the goods are in stock.
    or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How to ship the order?
    A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

    Q: What is your terms of payment ?
    A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
