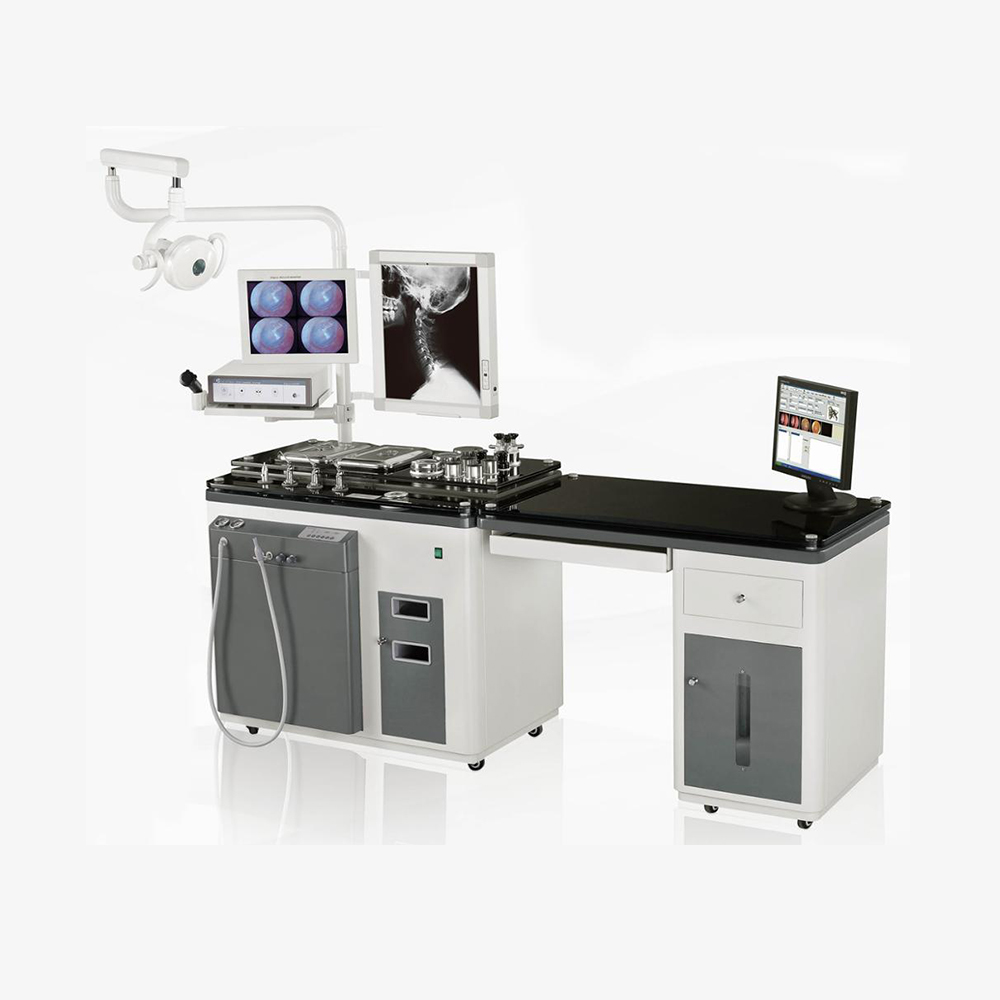

LTE600 Medical ENT unit
  • LTE600 Medical ENT unit
  • LTE600 Medical ENT unit

  • No: LTE600
  • Type: ENT workstation
  • Dimension:
  • Characteristics:

    Rated Voltage: 220 V-240 V / 50 Hz-60 Hz

    Rated Power: 1600 VA (max)


  • Details
  • Pictures
  • Service
  • Q&A
  • Function Introduction


    The brand new sheet metal designs for whole machine and rational layout, it is more convenient for doctor use.
    Using compressed air spray gun, spray evenly, without plugging, pressure adjustable.
    Brand new independent machine control systems, high-performance, full-featured. It includes: LED illuminating light, LED cold light source (built-in), LED film viewer. Laryngoscope pre-heater, blow-off system with warning lights and Constant temperature rinsing system (Option) other operations.
    Additional barrel cup of soaking disinfection specialized for endoscope is easy to use.


    Standard equipment:

    Luxury glass table surface (Including writing desk)  1set

    Spray gun (unbent2&bent1)  3sets

    Blowing gun  1set

    Suction gun  1set

    Laryngoscope pre-heater  1set

    LED illuminating  1set

    Compressor  1set

    Vacuum pump  1set

    Instrument tray  2sets

    Medical bottle  2sets

    Tweezers cup  4sets

    Cotton cup  3sets

    Contaminated equipment placed tank  1set

    Built-in waste tank  1set

    Built-in endoscope barrel cup  1set

    Built-in LED cold light source  1set

    Film viewer  1set

    Blow-off equipment system (with warning system)  1set

    Doctor stool  1set

    Microcomputer control system  1 set


    Option:

    Imaging system:

    1CCD/3CCD camera

    15 inch LCD monitor

    Computer (17 inch LCD display/professional endoscope software)

    Printer

    Fiber cable

    Built-out hernia light/Built-out LED cold light source

    Endoscope:

    ¢2.7/4mm,0°/30° otoscope

    ¢2.7/4mm,0°/30° nasoscope

    ¢8mm,70°/90° laryngoscope

    LED head light

    Constant temperature rinsing system


    Specification:

    voltage: AC230V 50Hz

    Power: 1800W

    Body size: 94*57*80 (cm)

    Writing table size: 102*57*80 (cm)

    Weight: N.W/152kg;60kg

    Weight: G.W/193kg;89kg

    Warranty:12 Months warranty for spare parts after goods shipped out


    Standard Patient Chair (Option)

    Standard motor patient chair technical parameters:
    Voltage: AC230V 50Hz
    Power: 280W(max)
    Allowable stress: 250kg
    Seat movement itinerary: 495mm(min)-615mm(max)
    Backrest: 90-135degress
    Pillow movement itinerary: 100mm(it can fold and remove)
    Seat 180 degree rotate
    Weight: 67kg
    Control by foot switch


    Luxury motor patient chair (Option)

    Luxury motor patient chair technical parameters:
    Voltage: AC230V 50Hz
    Power: 280W(max.)
    Allowable stress: 250kg
    Seat movement itinerary: 485mm(min)-625mm(max)
    Hand holder is fixed backrest: 90-180 degree
    Pillow movement itinerary: 100mm(it can fold and remove)
    Weight: 147kg
    Seat 180degree rotate
    Control by foot switch


    Simple patient chair (Option)

    Simple motor patient chair technical parameters:
    Voltage: AC230V 50Hz
    Power:280W(max)
    Allowable stress:250kg
    Seat movement itinerary: 480mm(min)-630mm(max)
    Backrest 90 degree
    Pillow movement itinerary: 100mm(it can fold and remove)
    Weight: 55kg

    Control by foot switch
