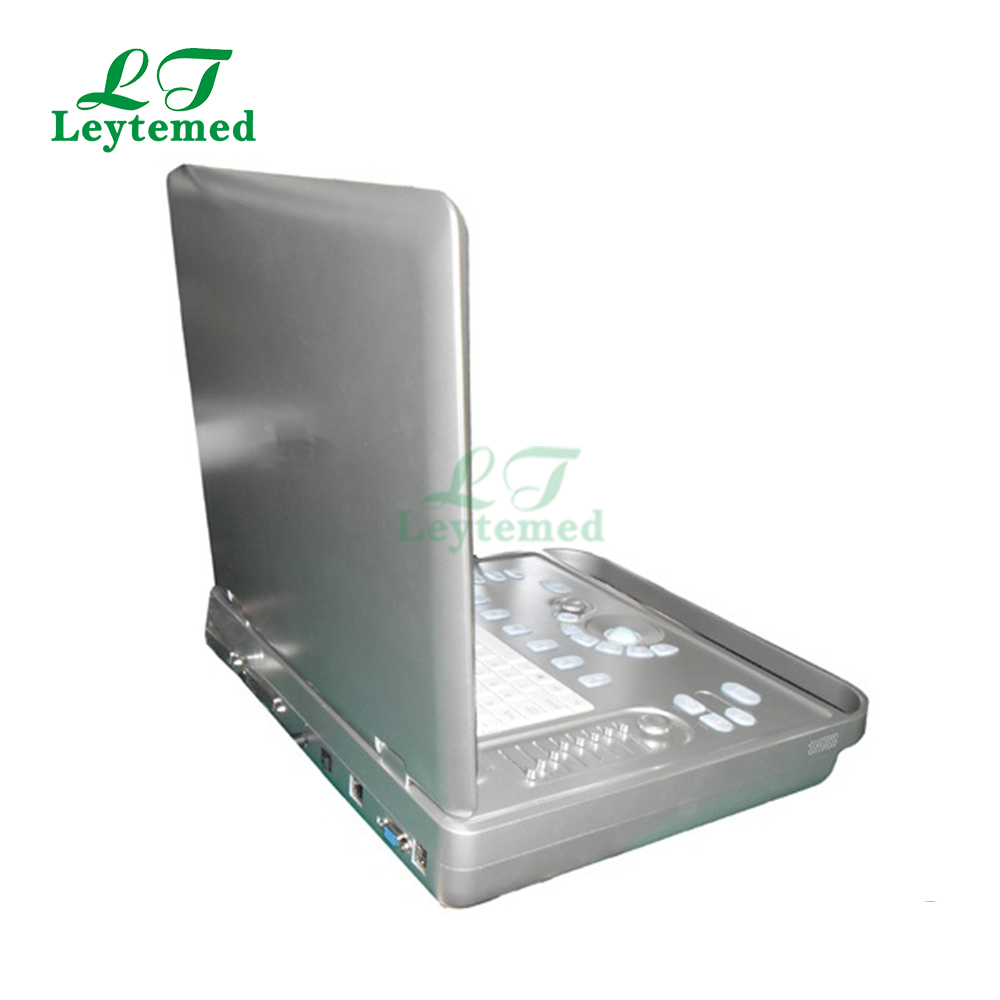

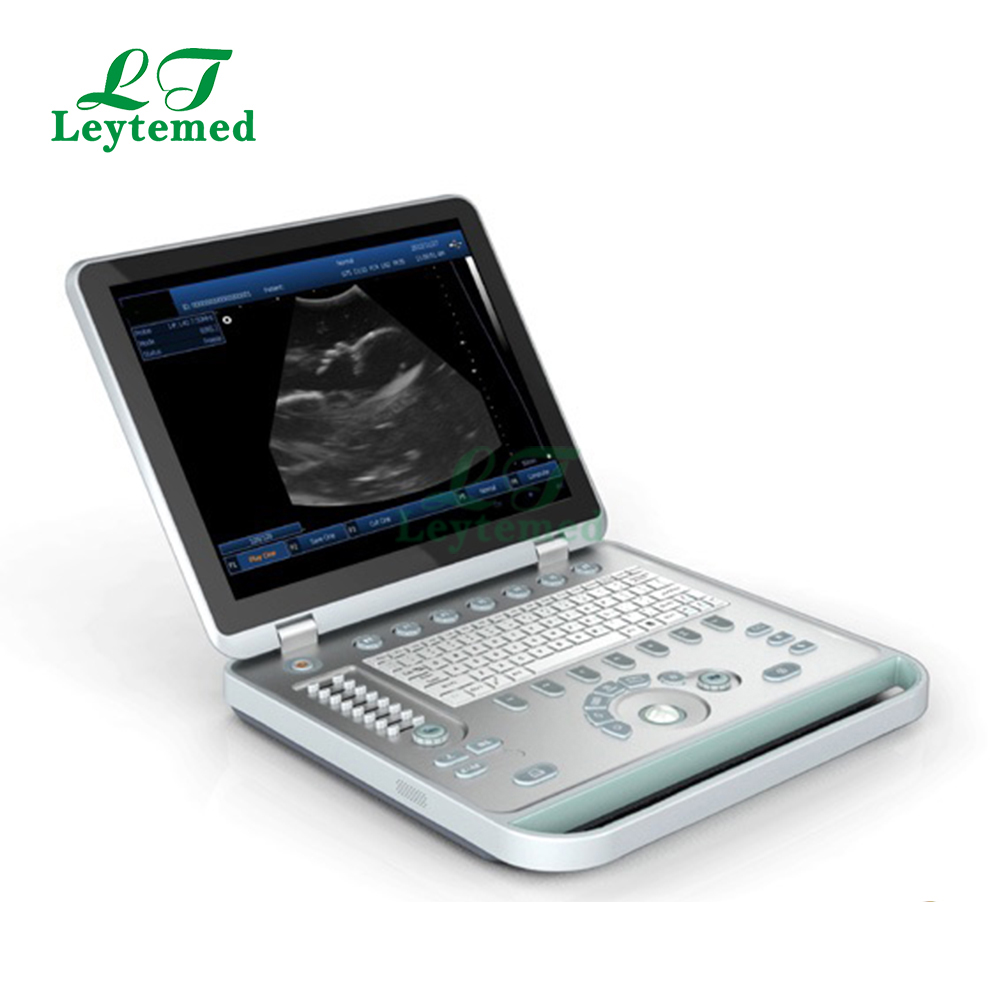

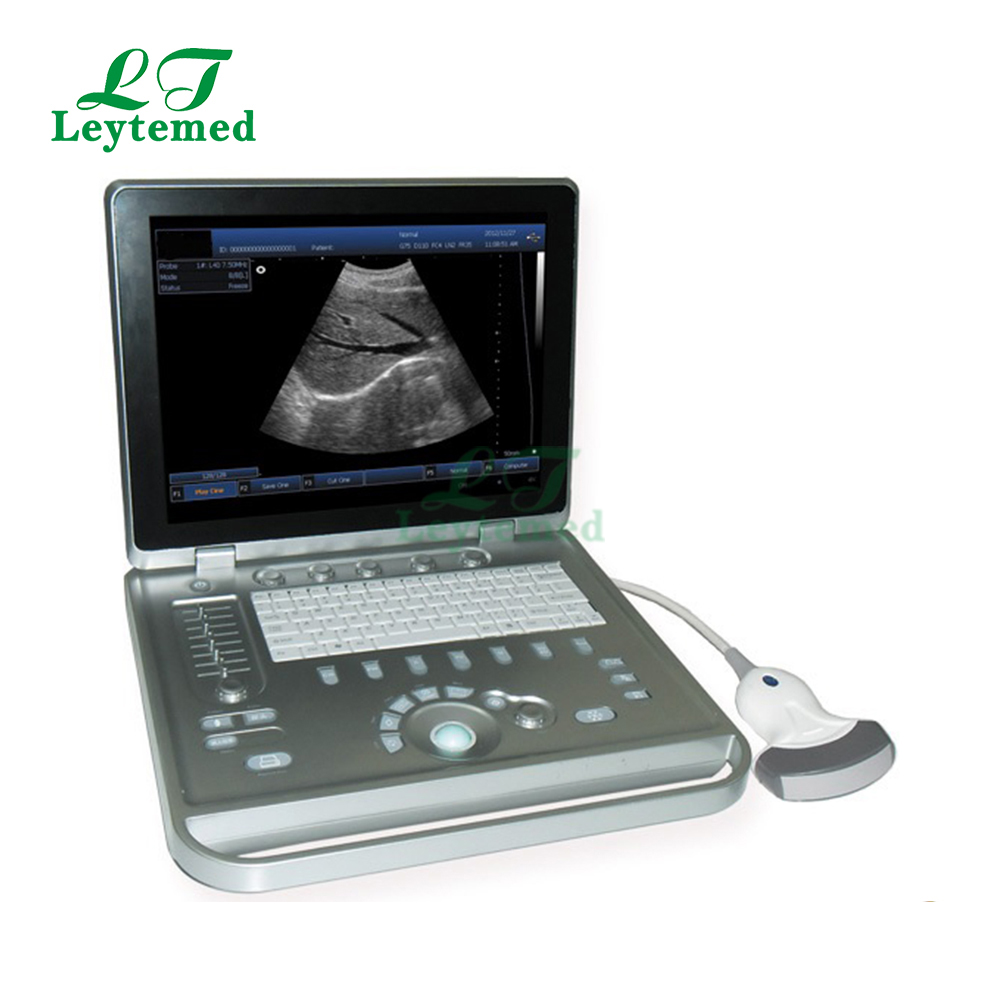

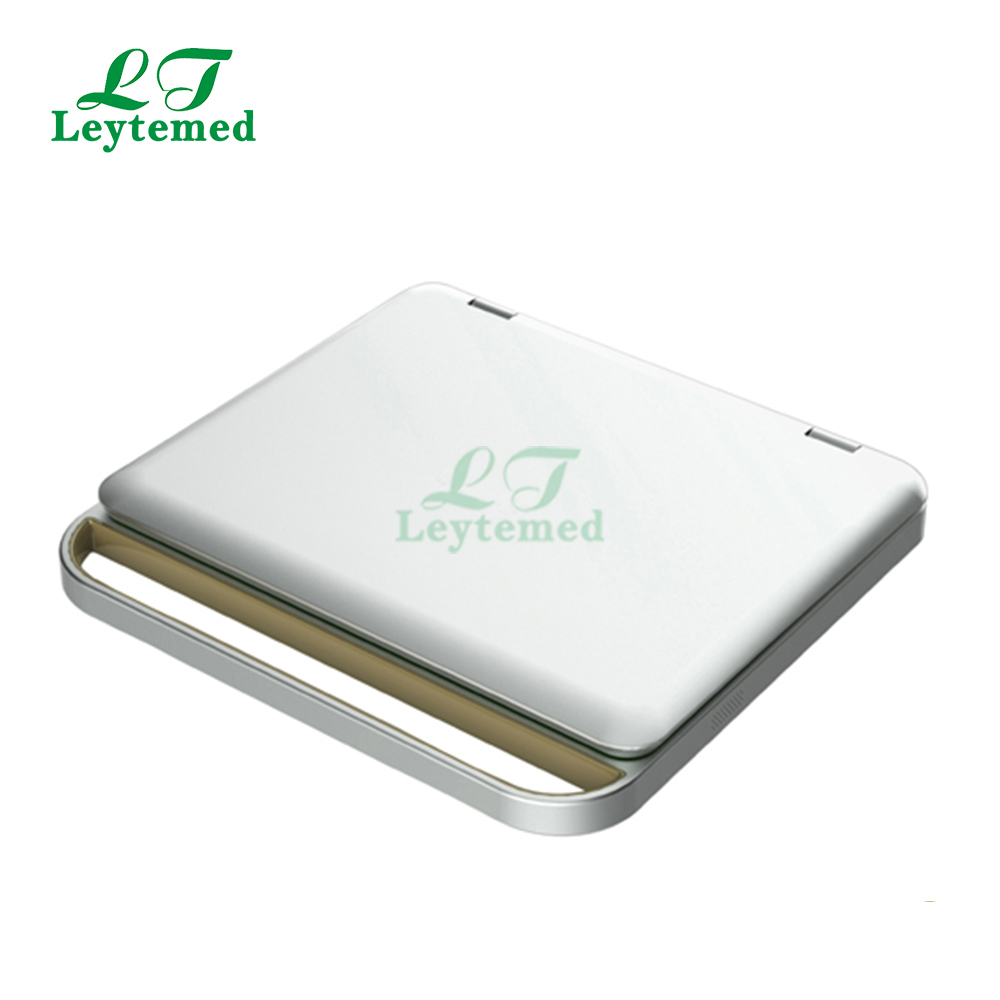

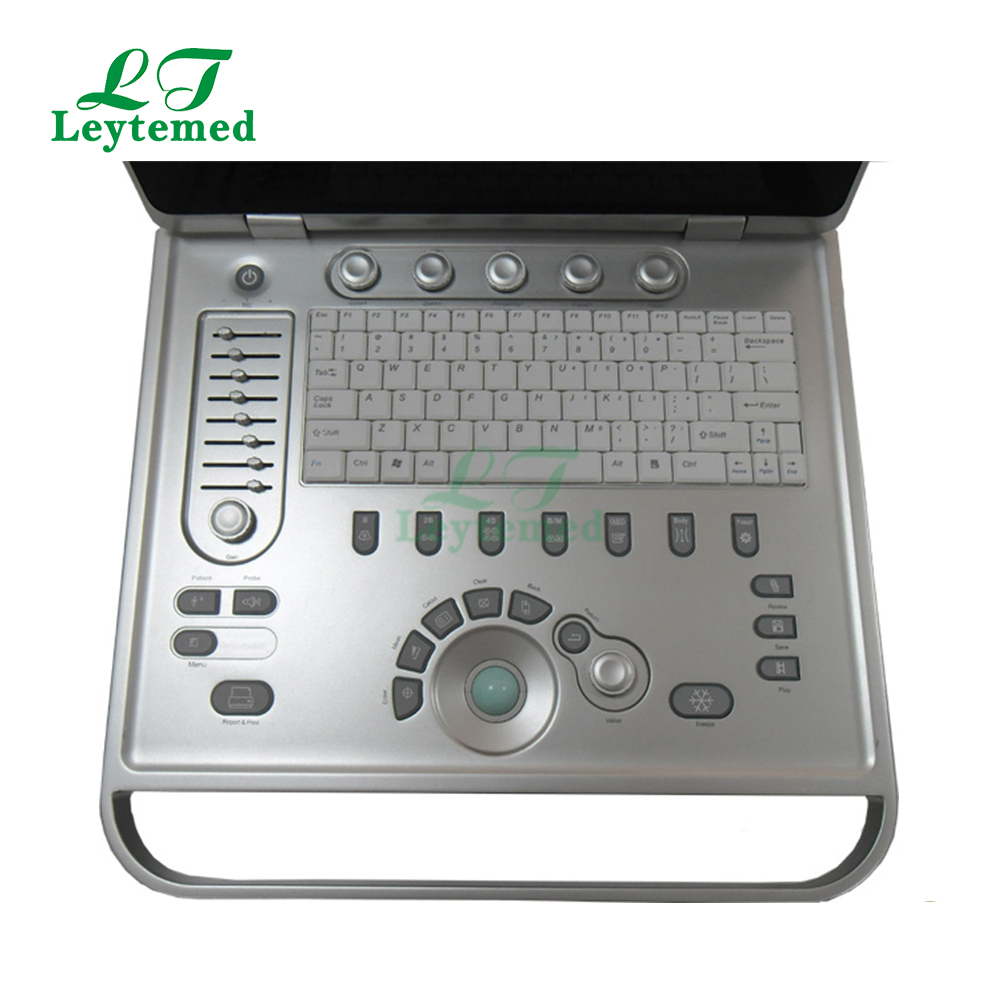

LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner
  • LTS-9 Laptop Ultrasound B scanner

  • No: LTS-9
  • Type: B & W b ultrasound scanner
  • Dimension:
  • Characteristics:
  • Details
  • Pictures
  • Service
  • Q&A

  • LTS-9 Laptop Ultrasound B scanner


    Feature:
    -15 inch LED screen, pretty, portable and light
    -2 probe connector
    -Full digital imaging technology, crystal-clear Image

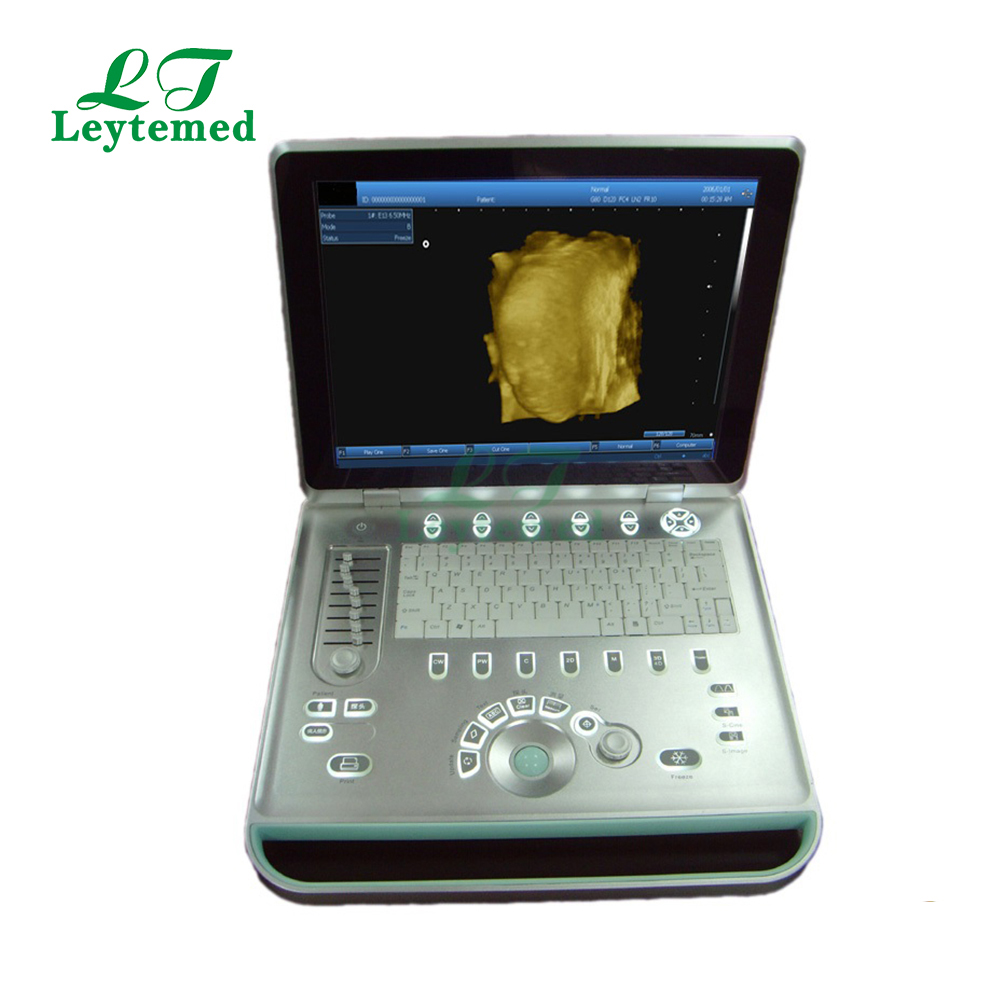

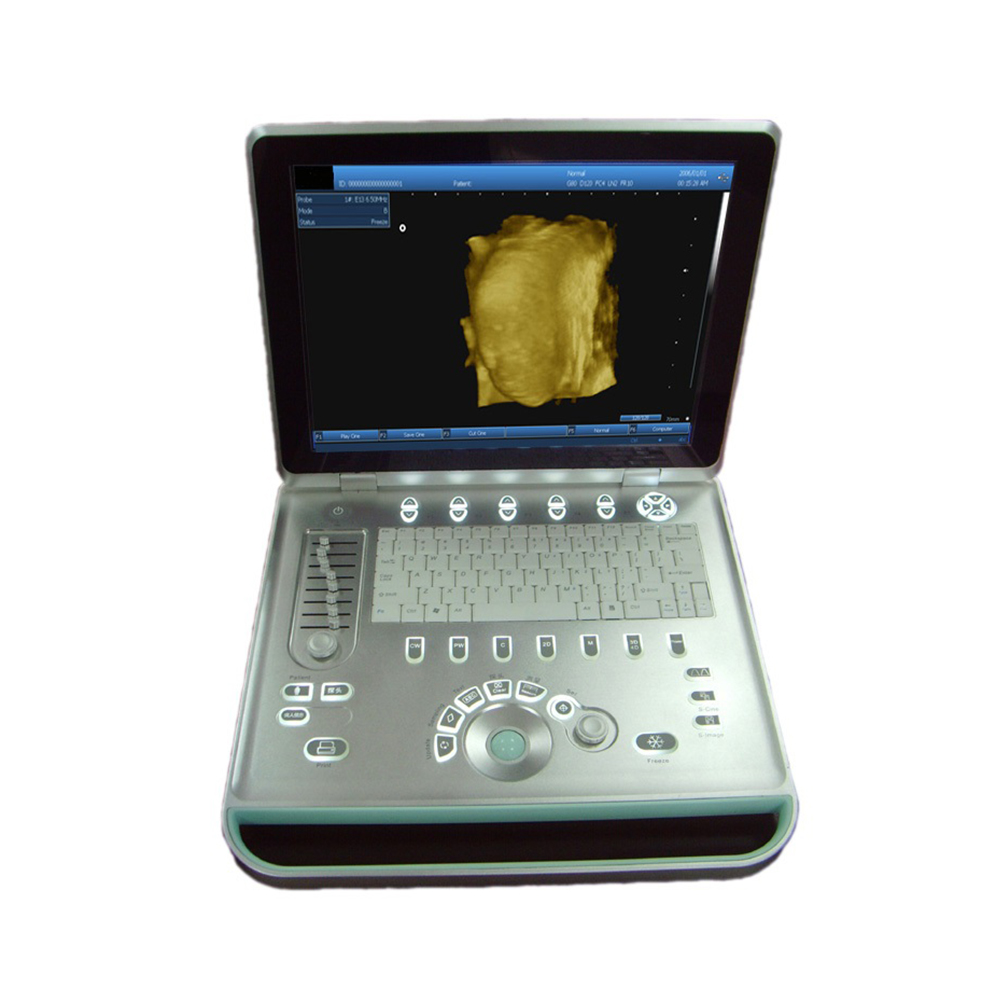

    -3D Image function(optional)
    -PC based, abundant functions
    -Powerful image and report management
    -Large volume storage image and cineloop
    -DICOM display and transfer
    -Compatible with laser/inkjet printers
    -Built-in battery(Work 5 hours)


    Specification:
    -Maximum Scanning Depth: max. 250mm
    -Multi-frequency: 5 segment frequencies
    -Cine Loop: max. 1024 frames
    -Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
    -Real-time Zoom on B mode
    -Image gray scale: 256 level gray scale
    -Image processing: Pre-processing, after-processing, dynamic range, frame rate,  line average, edge;
      enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
    -Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
    -Measurement and calculation(human):
     B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
     M mode: heart rate, time, distance, slope and stenosis;
     Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
     Obstetric: gestation age, fetal weight, AFI;
     Cardiology: LV, LV function, LVPW, RVAWT;
     Urology: transition zone volume, bladder volume, RUV,   prostate, kidney;
     Small parts: optic, thyroid, jaw and face.
     Veterinary:  Cattle: BPD, CRL, TD;  Horse: GA; Dog: GS; Cat: HD, BD;  Sheep: BPD, CRL, TD
    -Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
    -Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
    -Image store: by hardisk or USB disk
    -3D image function(function): can get rebuilt 3D image by any probe
    -Work time by built-in battery: about 5 hours
    -Monitor: 15 inch color LED screen
    -Probe Connector:2
    -Dimension: 362mm×340mm×60mm
    -Weight: Around 4.8Kg


    Standard Configuration:
    One Main Unit, One Convex probe(3.5MHz), One Power adapter.

    Optional:
    Linear, Trans-vaginal, Micro-convex,Rectal Probe; Bag; Trolley; Laser Printer.
