LTVW-120 Vaccine refrigerator
  • LTVW-120 Vaccine refrigerator
  • LTVW-120 Vaccine refrigerator

  • No: LTVW-120
  • Type: Medical refrigerator
  • Dimension:
  • Characteristics:

    1.Import and adopt the original binding Germany DANFOSS high-performance compressor;



  • Details
  • Pictures
  • Service
  • Q&A
  • LTVW120L  LTVW190L  LTVW210L  LTVW270L  LTVW320L  LTVW340L

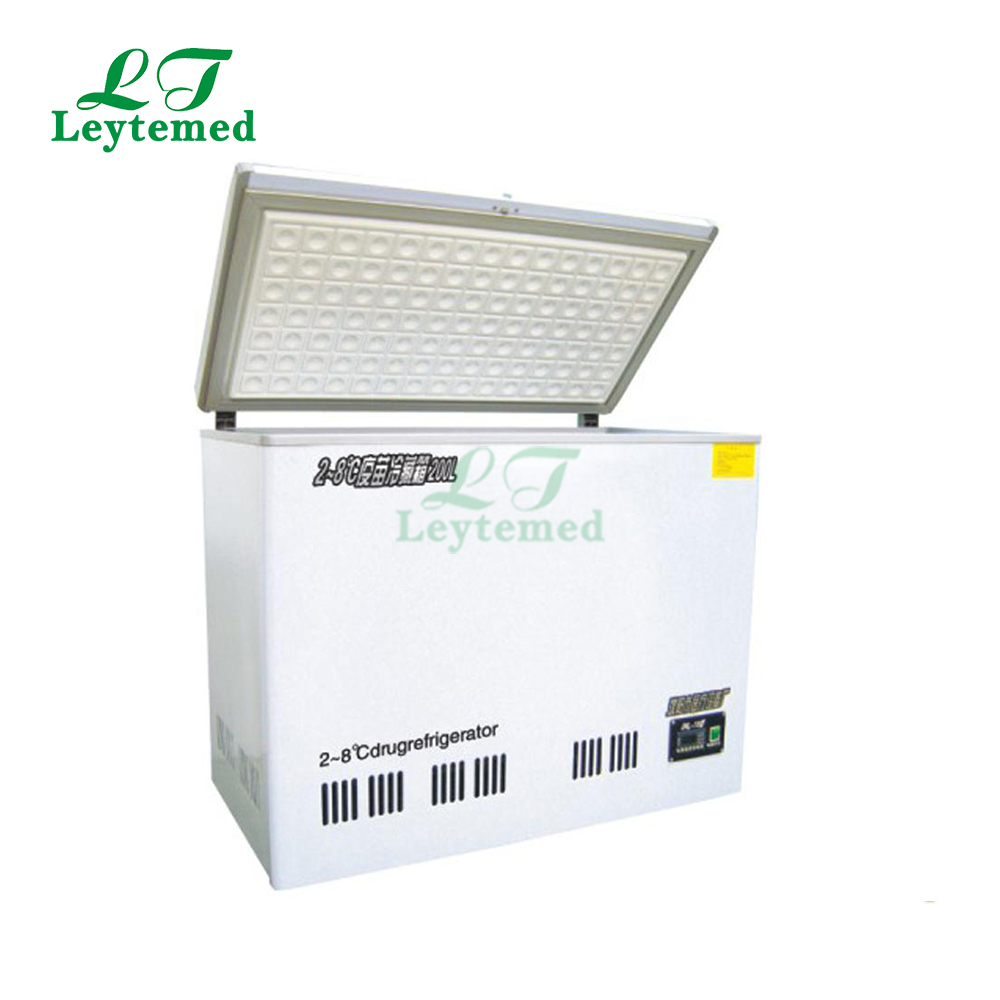

    Vaccine Medical Refrigerator

    The medicine refrigerator is the specific medicine cold-storage equipment. It can be also used for storing reagent, vaccine, biological product, etc. It is especially available for hospital, pharmacy, pharmaceutical factory, epidemic station, blood bank station, health center and lab.

    Precise temperature control system

    The worldwide famous high-accuracy computer-controlled temperature system with original binding can maintain the temperature constancy in the box at 2~8℃ precisely. The temperature set-value can be adjusted at 0℃14℃, and the temperature display precision is 0.1℃, the resolution is 0.1℃ and the adjusting increment is 0.1℃. The value is to be displayed through three-digital high-brightness figure.

    The system has special high-resolution temperature calibrating function. That means the set-value figure can be displayed and calibrated at 014℃. The calibrating increment is 0.1℃.

    The forced cold-air circulation system with intelligence-control fan can ensure the temperature uniformity inside the box.

    24-hours tracing, recording and printing systemOptional

    The imported temperature recording and printing system. There are four precise temperature sensors (two sensors for some systems) inside the box and two temperature indicators outside the box, which are to display the temperature of upper and lower point, for users to supervise the temperature at each operating states in the box. The display precision--resolution is 0.1℃.

    The distinguished power-off memory function can hold and store huge temperature data and information permanently.

    The temperature printing has password protection function, which can prevent illegally printing of the temperature fluctuation information.

    5-ways alarm system: including 2 sound alarm devices with 220V power supply, 2 light alarm devices with 220V power supply and one remote signal alarm apparatus (optional), consisting the super complementary supervision system.

    The data management software is available for one or more temperature signals changes

    Communicate with PC through RS-232 interface to examine the temperature curve diagnosis diagram of one or more refrigerators and display the data sheet. The data and images can be stored, inquired and printedOptional.

    Safe control system

    Keyboard lock, password protection function, and method against missing-adjustment of the operating parameter;

    Setting of the alarm temperature range.

    7 system failure alarms (high temperature alarm, low temperature alarm, sensors failure alarm, door-opening alarm, electricity failure alarm, low back-up battery alarm, low voltage alarm).

    Code display of the failure position (some machines have all these seven alarms);

    Three alarm ways (buzzer alarm, flashing alarm, remote signal alarm)

    The starting delay function due to self-checking and the interval protection function between temporary stop and start can ensure the reliable operation;

    The system can record the condition of the maximum and the minimum temperature inside the box automatically without recording paper.

    With the specially designed function, the system can operate under the state of sensor failure or the state of numerical disturbance safely and automatically.

    The operating parameter display function can ensure that the system is under supervision by operator and with security and stability.

    Equipped with remote alarm interface;

    The distinguished operating parameter of the temperature control system can separate the operator menu from the supervisor menu, which can locate the respective responsibility of the operating parameter and the article storage.

    The inbuilt lithium accumulator can keep displaying the temperature inside the box and can keep the light and sound alarm available for 72 hours after electricity failure.

    Optional items

    The EPS emergency supply is adoptable;

    The DC24V-AC220V inverter is adoptable, and the DC24V power supply can keep the refrigerator under normal operation.

    Refrigeration system

    Import and adopt the original binding Germany DANFOSS high-performance compressor;

    Import and adopt the original binding “Bi-Sonic” double fan strongly against the low temperature and moisture;

    Germany “EBM” heat elimination fan;

    Import and adopt the Japanese Matsushita vaporizer (cooling pipeline inside the box);

    Fluoride-free refrigeration system for environmental protection to make green products and create green world.


    Product mode

    Total useful volume

    Voltage

    Input power

    Temperature inside the box

    Exterior size

    (cm)

    Weight

    LTVW120L

    120L

    220V/50HZ

    100W

    2~8℃

    69*53*95cm

    40kg

    LTVW190L

    170L

    220V/50HZ

    110W

    2~8℃

    98*53*89cm

    45kg

    LTVW210L

    210L

    220V/50HZ

    110W

    2~8℃

    98*53*90cm

    50kg

    LTVW270L

    270L

    220V/50HZ

    120W

    2~8℃

    115*64*92cm

    60kg

    LTVW320L

    320L

    220V/50HZ

    160W

    2~8℃

    115*72*95cm

    70kg

    LTVW340L

    340L

    220V/50HZ

    225W

    2~8℃

    132*70*93cm

    80kg

  • Packing & Delivery
    UPS/DHL/FEDEX/TNT
    We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
    By Sea
    The volume of goods is large and needs to go by sea.It takes about one month to arrive.

    Aircraft
    Aircraft transportation takes 2-7 days to arrive.


  • FAQ

    Q:What's the minimum order quantity (MOQ)?
    A:For most of our medical products, even order for only one unit is warmly welcomed.

    Q: Can you do OEM/ private label?
    A: Of course we can do OEM/private label for you.


    Q: What's your delivery time?
    A: Generally it is 10 days if the goods are in stock.
    or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How to ship the order?
    A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

    Q: What is your terms of payment ?
    A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
