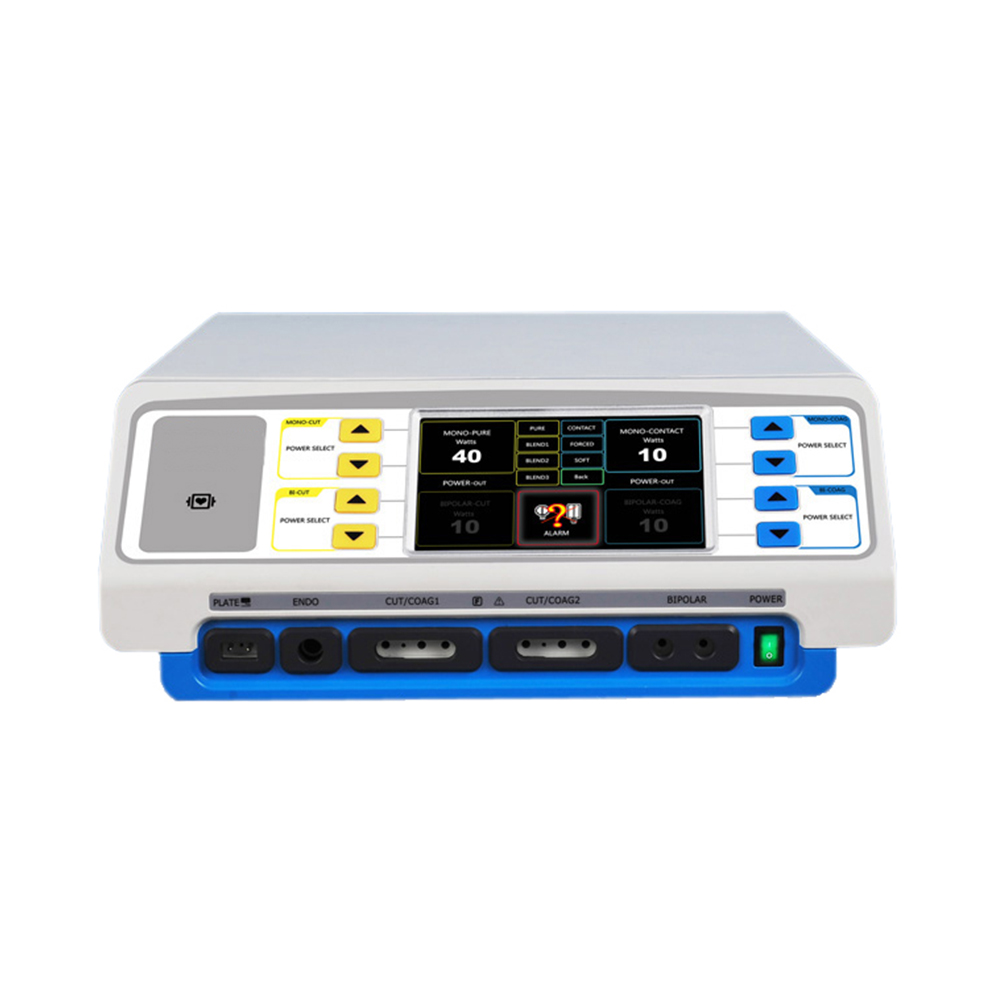

LTSG04 (LCD) Electrosurgical Generator
◆ Highest output: 400W
◆ Nine working modes:
Monopolar: pure cut，blend1, blend2, blend3, contact coagulation, forced coagulation, soft coagulation
Bipolar: bipolar coagulation, bipolar cut
◆The electrosurgical generator is used to control bleeding and surgical cutting in all general and open surgical procedures.
◆Liquid Crystal Display，with different audible and visual indication during the process of outputting.
◆Patient return electrode monitoring system and Power Peak System that provides surgeons with improved performance at Lower power settings, minimizing the risk of tissue damage.
◆Applicable for Prostate Vaporizing Surgical Operation(TUR), perfectly used under water. The electrosurgical generator can be cooperated with endoscope and laparoscope
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V,50/60Hz)
Operating frequency: a)Monopolar:512KHz b) Bipolar:1024KHz
Power rating: 880VA±10％
Nine working modes:
◆Monopolar Cut
a) Pure cut：1W～400W( Load 800Ω)
b) Blend1：1W～300W(Load 800Ω)
c) Blend2：1W～200W(Load 800Ω)
d) Blend3：1W～150W(Load 800Ω)
◆Monopolar Coag
e) Contact Coag：1W～100W( Load 800Ω)
f) Forced Coag：1W～120W( Load 800Ω)
g) Soft Coag：1W～120W( Load 800Ω)
◆Bipolar
8) Bipolar Coagulation: 1W～50W( Load 100Ω)
9) Bipolar Cut: 1W～120W( Load 100Ω)
◆Power Consumption: ≤880VA
