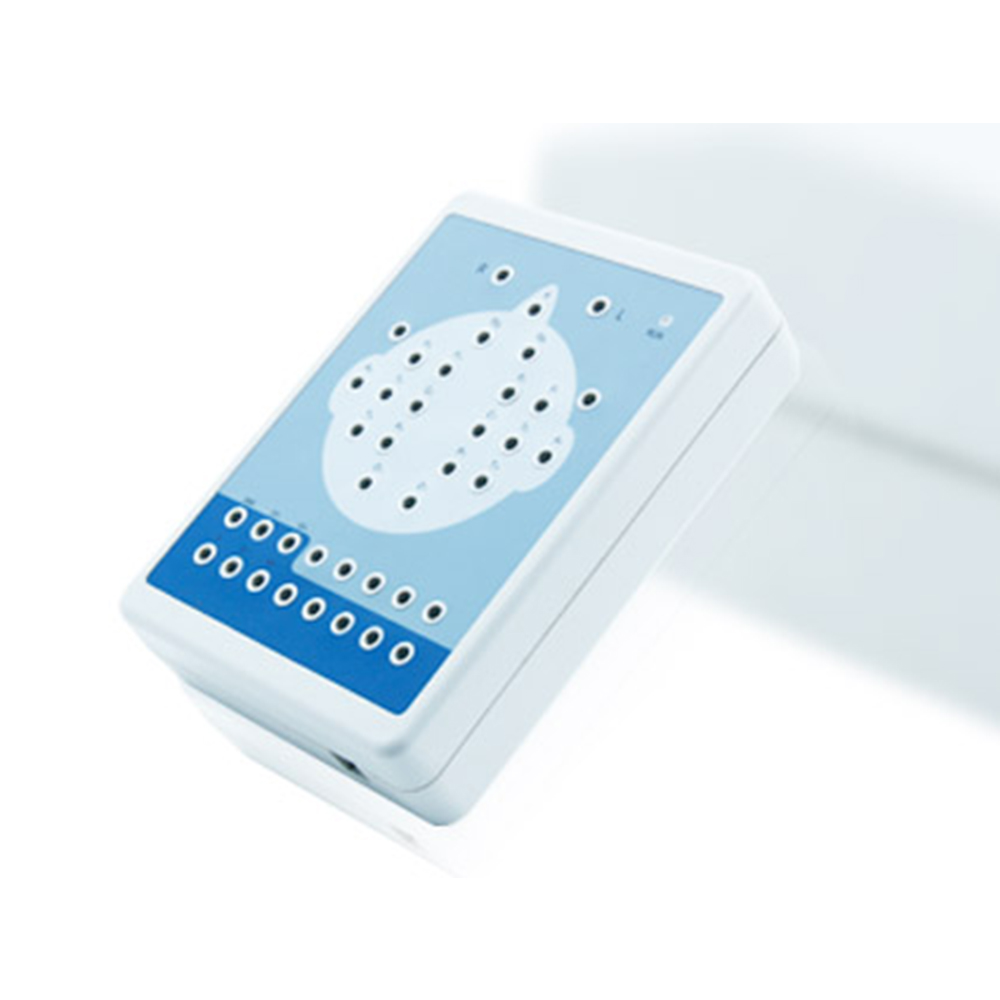

LTS101 Digital EEG And Mapping System
Automatically record EEG
16-lead EEG and 2-lead ECG , which have the function of automatic measurement.
Function
Mark event (openning eyes, closing eyes and flashing), using different colors
stands different event. Color of background and waveform occurred by different event is adjustable.
Using bioelectricity amplifier brainwave, extraction of 24 hours, integrated automatic calibration system
Multifunctional flashlight of USB port, manual control or automatic control).10/20 electrode placement method under international standard system , can change leads ways while replaying , electrode connection mode can be set at will..
Powerful replaying function: Consecutive and Rolling replaying model is supported. It is adjustable for the amplitude and replaying rate.
The special vertical time line which marks the collecting time. It divides the waveform in one second into 5 parts and easy for the doctors to analyze the waveform.
The multifunctional digital filter system, which has the function of setting up different filters and filtering methods.
Automatically analyze and distill with manifold parameters, choose and analyze many segments of wave.partial amplificatory window, with more accurate measurement of the wave.
Several models BEAM can be displayed in the same screen, such as three-dimensional rotary of BEAM、Power spectrum graph、Numerical BEAM、compressed spectrum graph and other graphs.
The perfect EEG database management, supporting MO or CD-RW archiving for investigation.
Report with incorporating pictures and text, which can edited the mode . Digital Synchronic video monitoring, recording, replaying, Video EEG Graph system, Long- distance transmission of medical records
Option ambulatory EEG recording case and can analyze the result.
Option the portable computer to consist the portable EEG.
Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security; USB interface data transfer which just need to insert, digital signal transmission is up to a maximum of 30 meters, Patients and doctors can be operated in different rooms and monitoring system is optional.
Optional function
Video monitor system
ECG, SpO2 module
1. Method of 10/20 electrodes placement under international standard system, can change leads ways while replaying, and set electrode connection mode at will.
2. Powerful replaying function: support consecutive and rolling replaying models, adjustable amplitude and replaying speed. Special vertical time line, which marks the collecting time, divides the waveform in one second into 5 parts and convenient for doctor to analyze the waveform.
3. Multifunctional digital filter system, and provides many filtering methods.
4. Analyze and distill manifold parameters automatically. Choose and analyze many segments of wave at the same time.
5. Paritial amplificatory window ,more accurate measurement of the wave and the measure results can be adjusted manual.
6. Several models of BEAM can be displayed in the same screen with brainwave, such as three-dimensional rotary of BEAM, power spectrum graph, numerical BEAM, compressed spectrum graph and other graths.
7. Professional isolation transformer, dual power supply isolation system and optoelectronic data transmission to ensure security. Use USB interface to transmit data which just need to be inserted. Distance of digital signal transmission is up to a maximum of 30 meters. Patients and doctors can be operated in different rooms and monitoring system is optional.
8.Multifunctional flashlight of USB interface, and frequency can be controlled manually or automatically.
9.The perfect medical records management, convenient for data investigation, looking up patient case and modifying his (or her ) information.
10. Report with incorporating pictures and text, user could not only select report mode and edit it but also select the information to print out
11. Digital synchronic system for video monitoring, recording and replaying. Video system of EEG graph. Long-distance transmission of medical records.
12. Option the portable computer to consist the portable EEG.
13.16 channels EEG and no video function.
14. It can load one template of report into office word.
15 .Physicians could add tag information at where it is needed to.
16. Transform the case file into EDF form in order to data or academic exchange.
17. Physicians could add events by himself, name it and define color. Set modes of display event expediently.
18. Export or load the case file.
Mode Parameter | LTS101 |
| Numbers of channels | 16 channels EEG |
| Speed of sampling | 100 Hz/channel |
| Precision of sampling | 12 bit |
| Input impedance | ≥10MΩ |
| Level of noise | ≤5uV Vp-p |
| Common mode rejection ratio | ≥90dB |
| Magnifying multiple | 10，000 |
| Filter constant | Free to setting in full digital |
| Speed of gathering | 15, 30 mm/s |
| Speed of displaying | 5, 10, 15, 30, 60, 120 mm/s |
| Speed of playing | 1,2,3,10,20,40,60 |
| Displaying amplitude | 1,2,5,10,12,15,20 mm/s |
| Interference rejection ratio | ≥30dB |
| Optional function | Null |
