Hematology analyzer
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
Standard Configuration

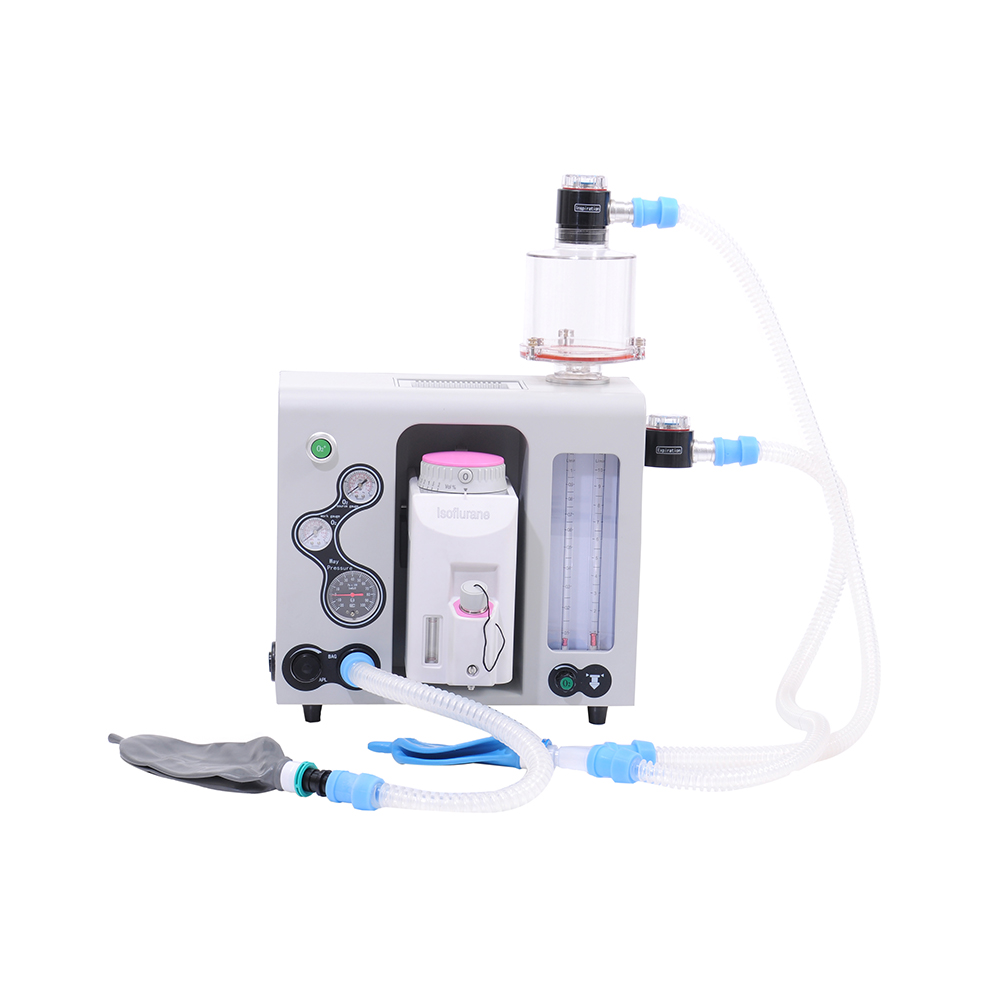

CE approved portable anesthesia machine
Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.
Suitable for small animals, Jackson or Bains Absorber is available
Specifically designed to accomodate low flow
Selectatec-bar and quick change vaporizer mounting device
Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.
External and reusable soda lime canister, easily watch and replace soda lime.
With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen supply demand.
With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety .
Wastewater discharge system
Visible inspiration and expiration valve
Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely
Module rack with polyester medical material with superior spray technology, high strength and light weight.
With transport case, convenient to take and transport
Easy to disassemble and assemble all the components, convenient for clean and maintenance.
Specification:
Application: 0.5~100Gkg animal
Ventilation mode: Closed, half-closed, half-open
Tidal volume( Manual Mode): 10～2000ml
Gas pressure: 0.25～0.65Mpa
Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1～10L/M
APL valve: 0.5～6.0Kpa
OXYGEN Flush: 25～75L/min
I:E: As the doctor operation
BPM: As the doctor operation
Monitoring: Airway pressure, respiratory mode.
Three gauges: One for Oxygen source pressure
One for oxygen working pressure
One for airway pressure
Vaporizer
With the latest innovative design of delivery system, vaporizers deliver accurate concentration under varying conditions of variable flow rate, pressure, temperature and so on.
Stably deliver agent, automatic temperature-compensating, deliver accurate agent
Sophisticated delivery system，Stable, prompt, accurate
Various kinds of mounting types.
Safety lock device to prevent the anesthetic gas volatile accidentally.
The big view window is convenient to observe drug usage levels.
Specification
Concentration range:
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick
Mounting type:
selectatec compatible
draeger plug in
cage mount(ISO 23mm tapers)
cage mount with interlock
Net Weight: 26kg
Gross Weight: 30kg
Size:86 X51 X 38CM
