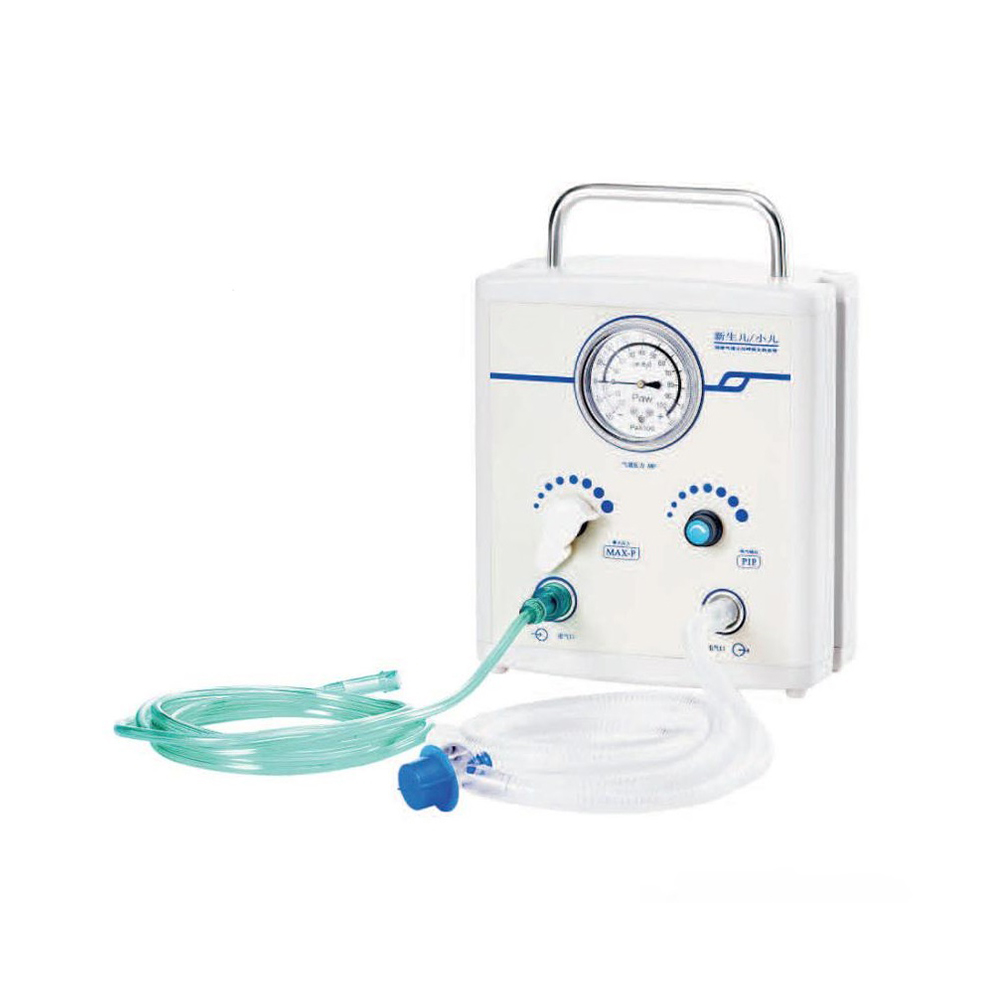

AD3000-TPA Infant Resuscitator
  • AD3000-TPA Infant Resuscitator
  • AD3000-TPA Infant Resuscitator
  • AD3000-TPA Infant Resuscitator

  • No: AD3000-TPA
  • Type: Neonatal small machine
  • Dimension:
  • Characteristics:
  • Details
  • Pictures
  • Service
  • Q&A
  • AD3000-TPA Infant Resuscitator

    It is mainly used on delivery room, baby wards, NICU that the baby’s maximum weight up to 10KG.

    The different concentrations of medical oxygen will be configured by adjusting the proportion of oxygen and air.

    Inside an alarm system of differential pressure. When alarming, the safety valve starts automatically, and produces the mixture gas continuously to ensure the safety of patients,

    Adjust the oxygen concentration from 21%~100%.

    The range of flow adjustment is 5LPM~15LPM.

    The MAX-P and PIP are safe, controlled and accurate.

    The PEEP is constant and accurate.

    Simple operation and flexible application.

    The output pressure would not be influenced by the operator’s experience, training, attention and fatigue.

    Instead of temporary breathing support.



    Technical parameter:

    Pressure gauge: -2~10kPa(-20~2500pxH2O)

    MAX-P: @0~15LPM ≤6kPa(1500pxH2O)

    PIP: @5~15LPM 0.2~5.7kPa(2~1425pxH2O)

    PEEP: @5~15LPM 0.03~2.3kPa(0.3~575pxH2O)

    Noise: ≤55dB(A)

    Weight application: max.10KG

    Work and store limit: -20℃~50℃, relative humidity up to 90%

    Working time(400L gas cylinder): @8LPM/50mins
