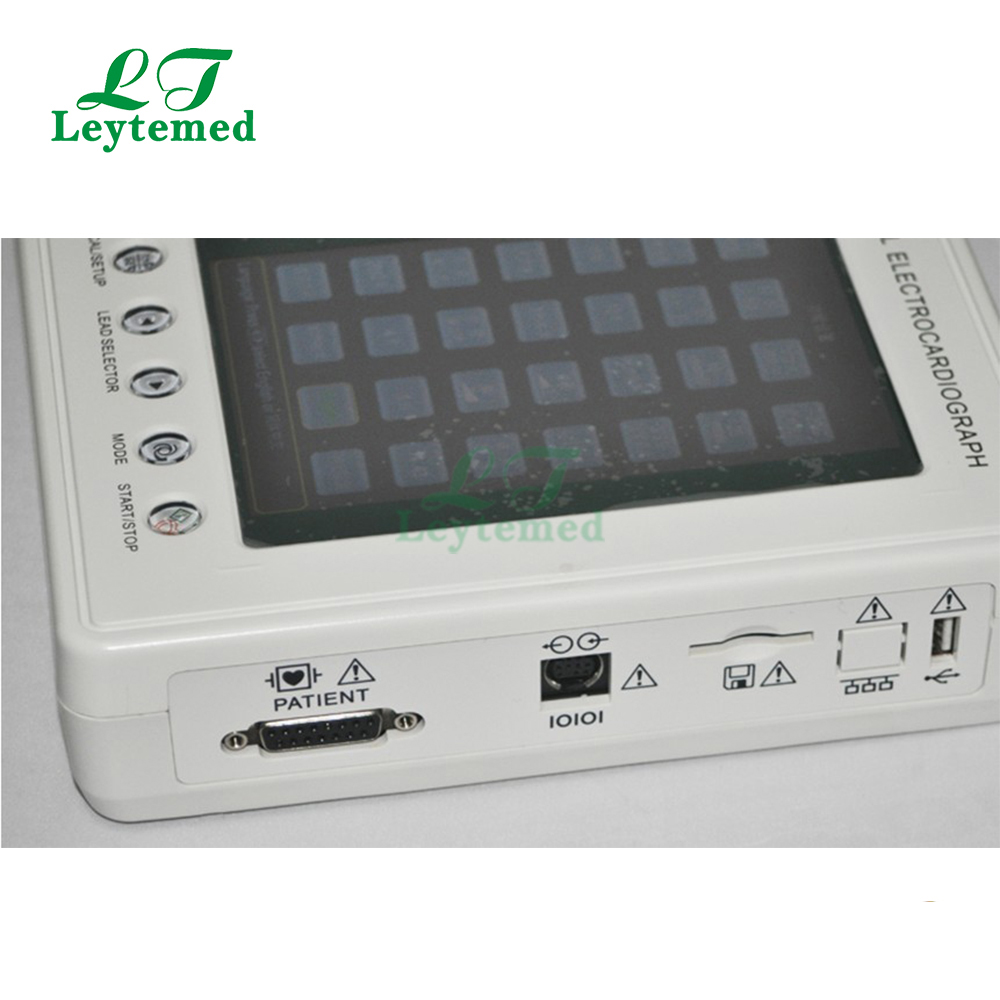

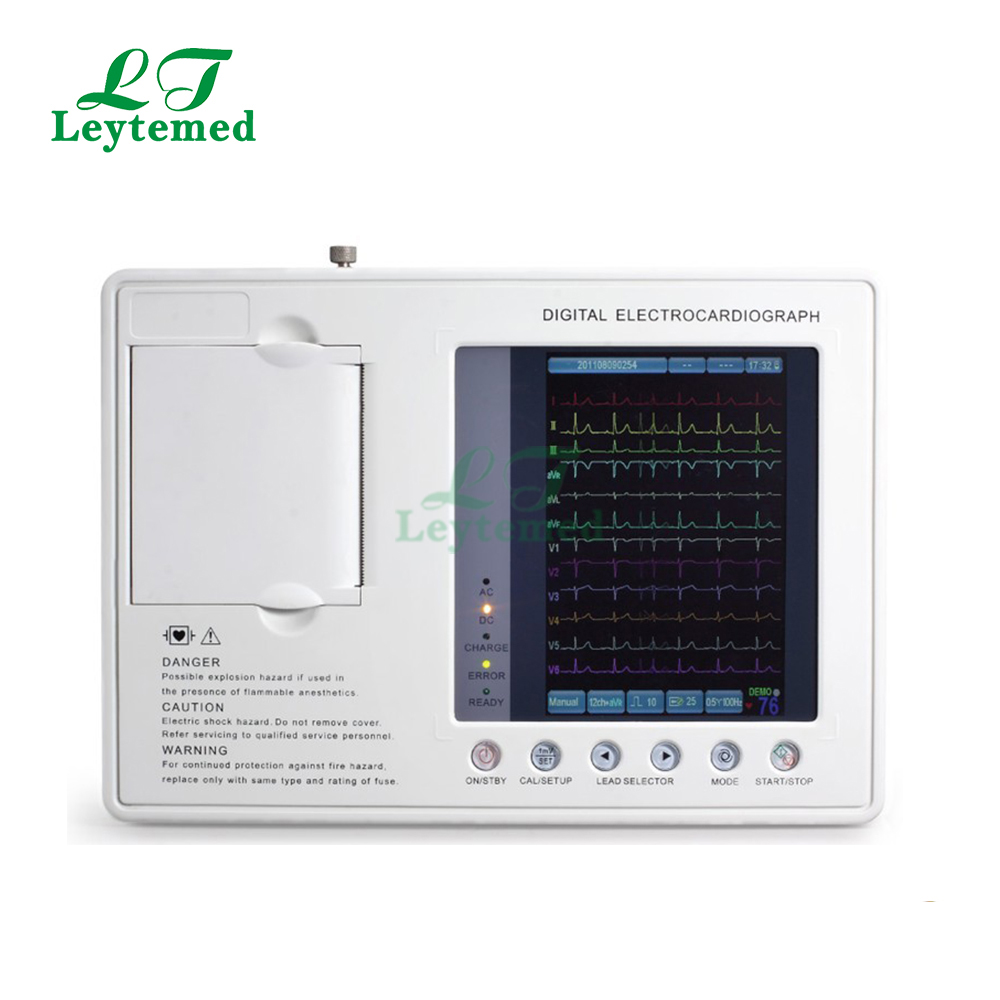

LTSE01 3 channel 7 inch color screen ECG machine
  • LTSE01 3 channel 7 inch color screen ECG machine
  • LTSE01 3 channel 7 inch color screen ECG machine
  • LTSE01 3 channel 7 inch color screen ECG machine
  • LTSE01 3 channel 7 inch color screen ECG machine

  • No: LTSE01
  • Type: ECG machine
  • Dimension:
  • Characteristics:

    Lead:12 leads,Standard or Cabrera, 12 leads simultaneously acquisition

  • Details
  • Pictures
  • Service
  • Q&A
  • LTSE01 3 channel 7 inch color screen ECG machine


    Lead:12 leads,Standard or Cabrera, 12 leads simultaneously acquisition

    Input circuit:Floating,Defibrillation protection

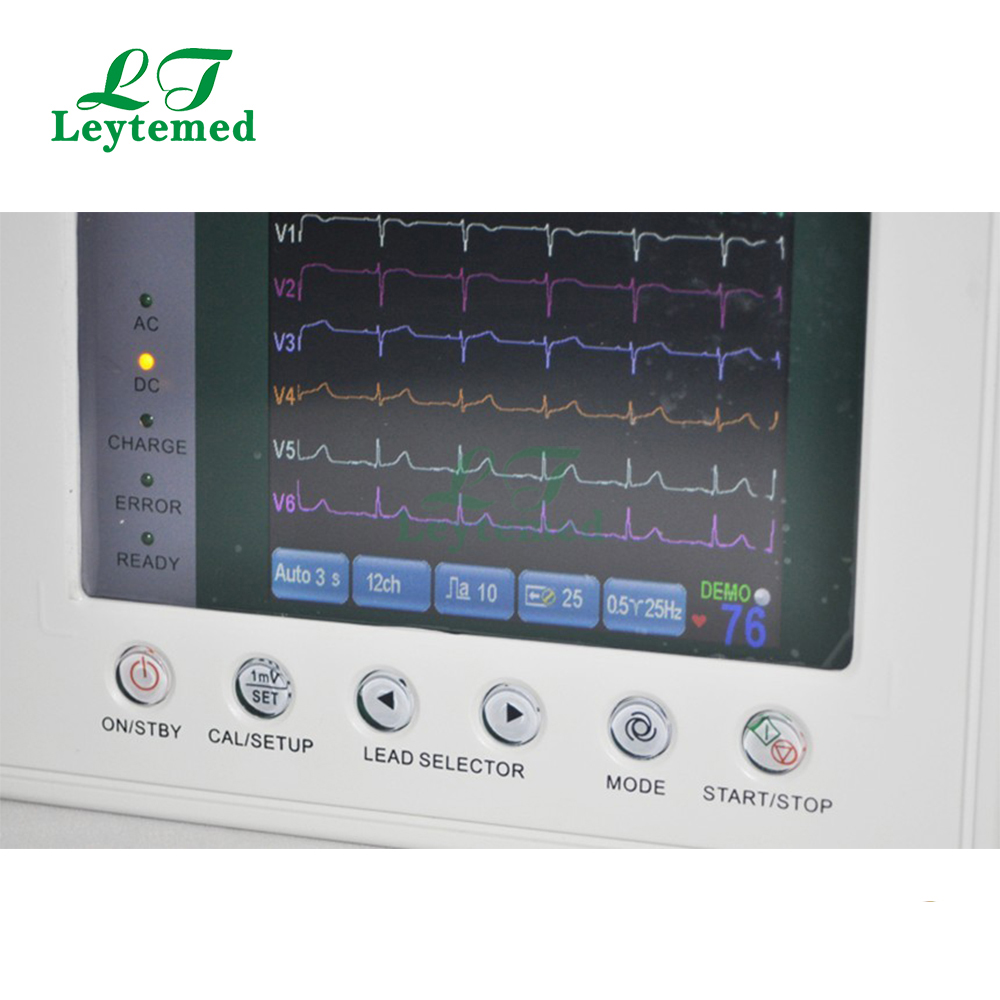

    LCD display:480*680  7 inch color screen LCD display ECG waveform, operation conditions,Time,Heart-rate,etc

    Safety:IEC class I, type CF

    Sampling rate:8000 samples/Sec

    Input dynamics :±500mV

    Operation Mode:automatic,manual,single channel 60s compressed record,Rhythm analysis (R-R histogram and trend chart)

    Filter :AC(50Hz or 60Hz, -20dB),EMG (25Hz/35Hz/45Hz/75Hz/100Hz,-3dB),Drift (0.5Hz,-3dB)

    CMRR :>100dB(with AC filter)

    Input circuit current :≤0.1μA

    Input Impedance  :≥50Mohm

    Time constant  :≥ 3.2 Sec

    Frequency Response :0.05--150Hz,-3dB

    Noise Level  :≤15μVp-p

    Sensitivity  :1.25; 2.5; 5; 10;20; 40mm/mV±2%

    Calibration Voltage :1mV±2%

    Patient Current Leakage :<10uA

    Protection  :Protect from defibrillation and pace-making

    Printing system  :Thermal printer; ≥8dot/mm(Vertical), ≥40 dot/mm (Horizontal),printing speed at 25mm/s

    Printing  Speed  :5; 6.25; 10; 12.5; 25; 50mm/s±3%

    Printing Output  :3/2 channel; 3/2+1 channel; 3/3channel; 3/3+1 channel

    Paper size  :80mm*20m roll type or Z-fold thermal paper

    Patient Cable  :standard 10 core

    Report storage  :200 reports in built-in memory, support external SD card,report presentation,review and re-printing.

    Indicator  :Lead-off detectoin

    Power Supply  :12.6V 1500mA Li-poly rechargeable battery pack (DC),220V±10%, 50Hz±2%, 75VA  (AC)

    Fuse Specification :2Φ5x20mm 3.15A 250V

    Machine Dimension :285(W)*200(D)*55mm(H), Machine weight  2.0 kg (machine only)

    Gross weight  3.8 kg  (including accessories), Carton size  41*32*600px(1pc), 67*44*1275px(4pcs/carton)

    Company Profile
    Guangzhou Leyte Medical Equipment Co., Limited
    We have been medical field for more than 10 years
     Speak fluent English, Received professional knowledge training
    Pre-Sales Service
    The professional team provides after-sales service online 24 hours a day.
    We offer OEM services.

    After-Sales Service
     One year warranty.
    More than 10 years of professional engineers help you solve problems


     Quality Workplace

     Good Labor relations

     testing equipment

     Competitive Price

     Reliable Performance

     High Quality

    Our Customer
    Our customers come from all over the world.
    Our main market is in Africa.
    There is the exhibition.Main exhibition is at Africa. Been to Kenya, South Africa, Nigeria, Dubai and Vietnam.

  • Packing & Delivery
    We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
    By Sea
    The volume of goods is large and needs to go by sea.It takes about one month to arrive.

    Aircraft transportation takes 2-7 days to arrive.

  • FAQ

    Q:What's the minimum order quantity (MOQ)?
    A:For most of our medical products, even order for only one unit is warmly welcomed.

    Q: Can you do OEM/ private label?
    A: Of course we can do OEM/private label for you.

    Q: What's your delivery time?
    A: Generally it is 10 days if the goods are in stock.
    or it is 15-20 days if the goods are not in stock, it is according to quantity.

    Q: How to ship the order?
    A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

    Q: What is your terms of payment ?
    A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
