Hematology analyzer
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
Feature

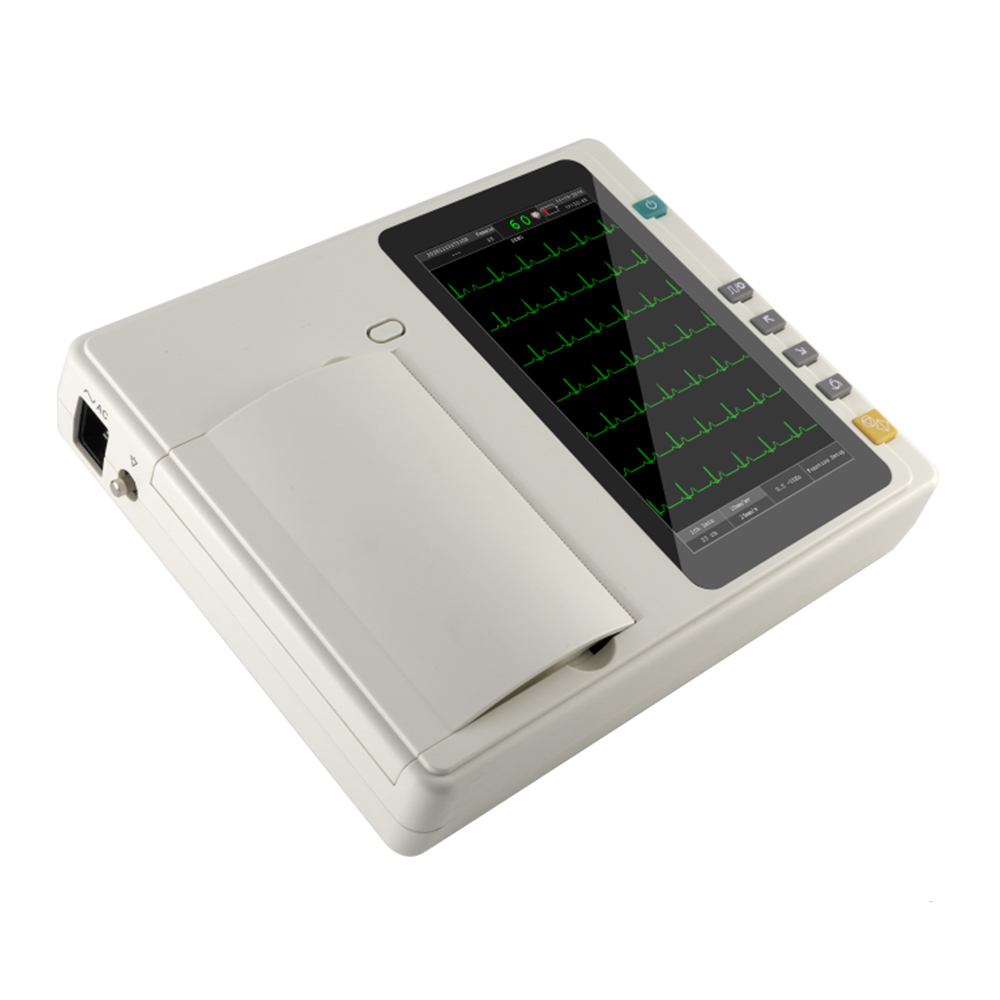

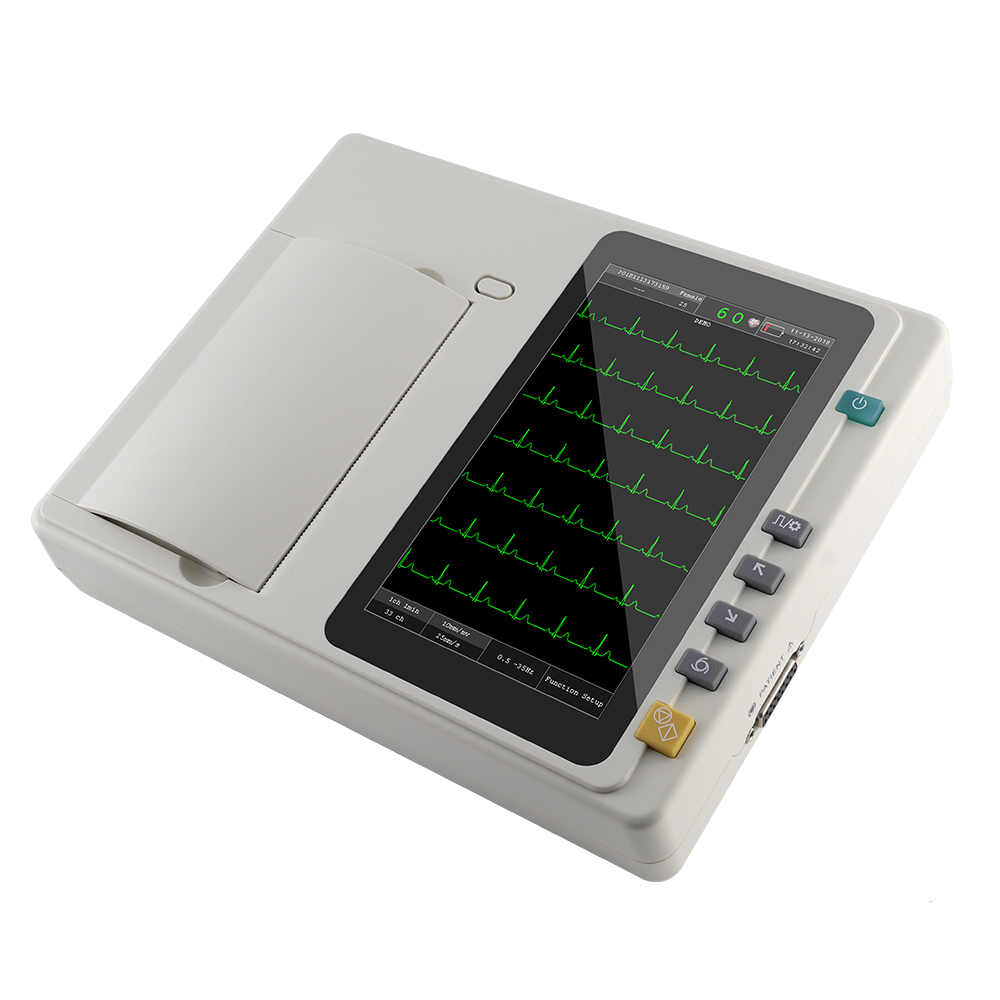

7 inch high resolution color touch screen
12-lead simultaneous acquisition and display
ECG Automatic measurement and interpretation function
Complete digital filters, resisting baseline drift, AC and EMG interference
Compact and lightweight design
Support USB flash disk and micro SD card to extend memory
Software upgrade via USB/SD card
Built-in rechargeable Li-ion battery
Packing List :
Patient cable | 1set |
Limb electrode | 4sets |
Chest elelctrodes | 6sets |
Gounding cable | 1set |
Paper axis | 1set |
Thermal paper | 1set |
Fuse | 2sets |
3-cord power cord | 1set |
AC Adaptor | 1set |
Items | specification |
Features
| 7 "display,touch screen Support Ecg analysis capabilities |
Lead | standard 12 leads |
lead acquisition | synchronously 12 leads |
Input circuit | Floating; Protection circuit against Defibrillator effect |
Input Impedance | ≥50MΩ |
Input circuit current | ≤0.0.05μA |
Record mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. |
Filter | EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz |
CMRR | >100dB |
Patient current leakage | <10μA |
Input Circuit Current | <0.05µA |
Frequency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
Anti-baseline Drift | Automatic |
Time constant | ≥3.2s |
Noise level | <15μVp-p |
Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |

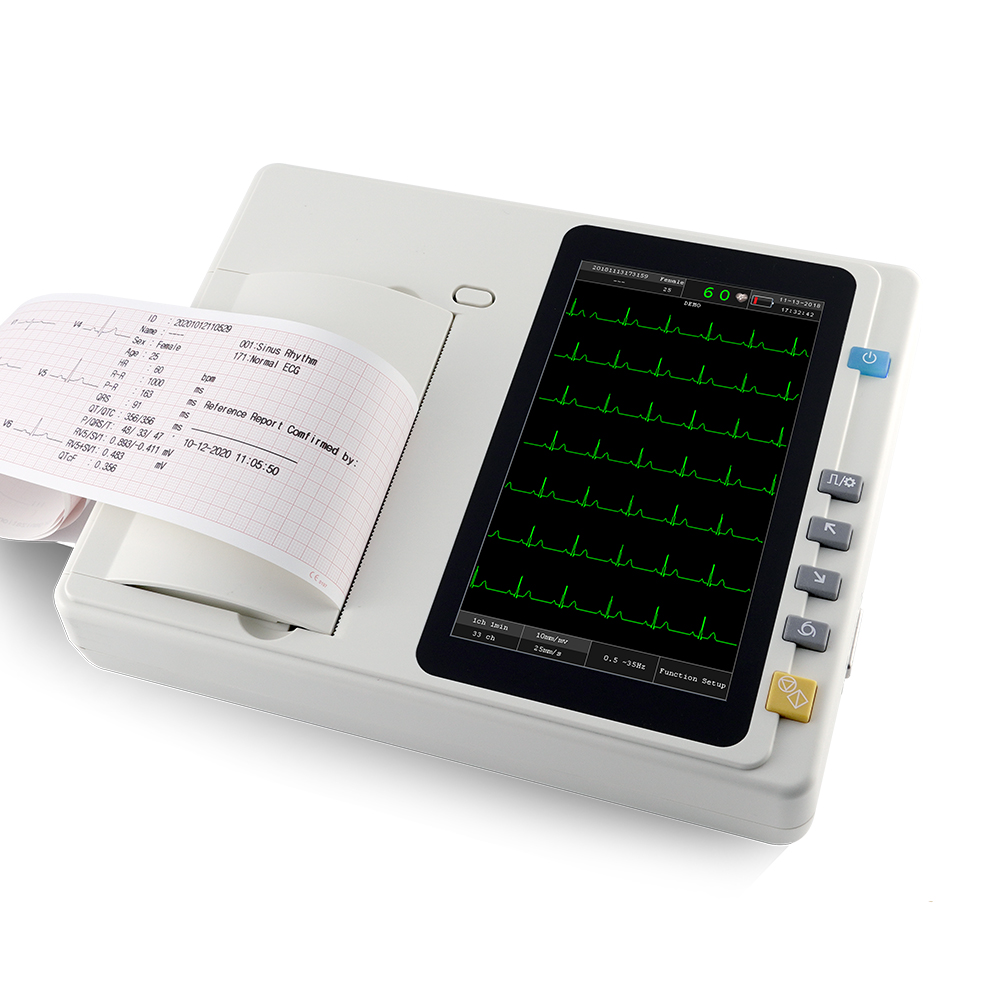

Recording mode | Thermal printing system |
Paper specification | 80mmx20m paper roll |
