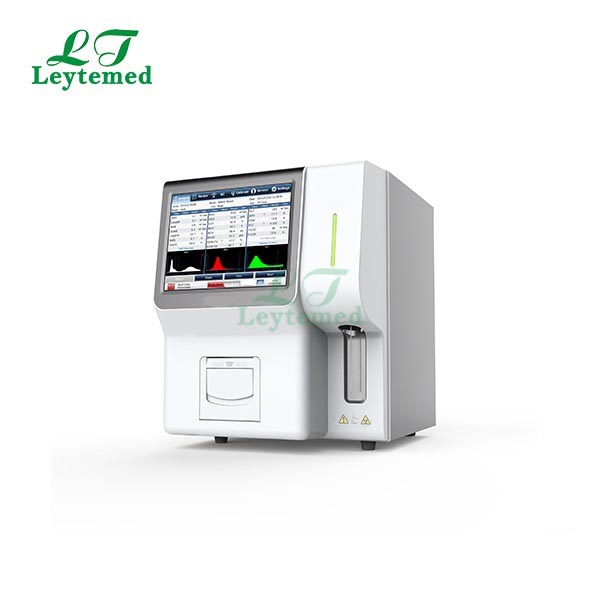

LTCH07 3-Part Auto Hematology Analyzer with touch screen

LTCH07 3-Part Auto Hematology Analyzer with touch screen
No: LTCH07
Type: Hematology analyzer
Dimension:
Characteristics:
10.4 inch true color TFT LCD & touch screen, more visible Double Channel ,60 test / hour

Prev：LTCH08 3-part auto hematology analyzer 60 test

Next：LTCH05 Laboratory Automatic 5 part Hematology analyzer machine

Details
Pictures
Service
Q&A

1. Highlights
l User-friendly interface

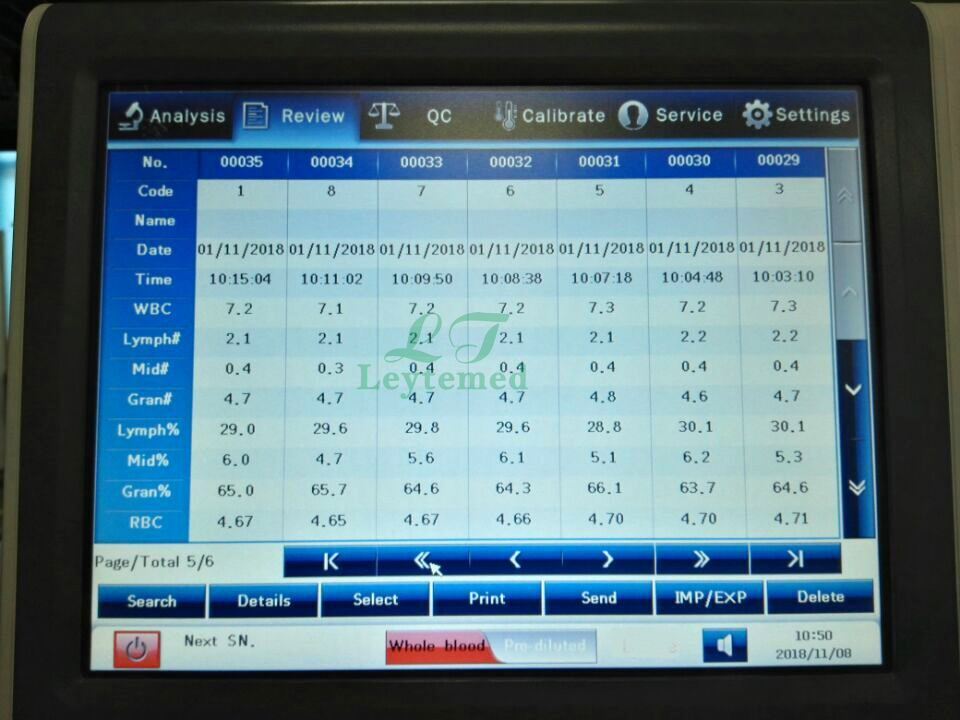

10.4 inch true color TFT LCD & touch screen, more visible
Double Channel ,60 test / hour
Minimize the number of interface layers, pop-up soft keyboard, easy to operate
l Internationalization support
Possible choice of parameter units. Several languages English ,Franch available, can switch language online
l Provide various anemia indications
Normocytic and normochromic anemia, Macrocytic and normochromic anemia, Microcytic hypochromic anemia, Microcytic anemia
l Provide text of alarm information
Text of alarm information is clearer than alarm character provided by traditional 3-part analyzer, such as R1, Rm and Pm
l Automatic blank counting
Automatically start a blank counting and auto-assessment of the results during start-up process
l Automatic re-counting
Automatically re-count after unclogging treatment while a counting hole is clogged, avoid re-collecting blood
l Wider linearity range & excellent repeatability
l Maintenance-free syringe
l Built-in patented structure thermal printer. Easy to load paper, and fast print of large size report
Paper 80mm wide. Report printing takes only 5 seconds
l State-of-the-art technology
Sweeping flow technology, Pulse discrimination technology, intelligent floating threshold technology

2. Product Specifications
l Measuring Principles
Impedance method for cells counting
Cyanide free colorimetric method for HGB measurement
l Measuring Channels
Double channel for counting
l Throughput
From beginning of a test to completion of the printout: ≤60 Seconds
l Counting Modes
Whole Blood, Pre-diluted Blood
l Sample Volume
Whole Blood: ≤14µL
Pre-diluted Blood: ≤20µL
l Parameters & Histograms
21 parameters and 3 histograms:
WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram
l Reference Value Settings
Preset five sets of reference values: Man, Woman, Child, Baby and General
l Alarm System
Multiple alarms of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area leak or bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc

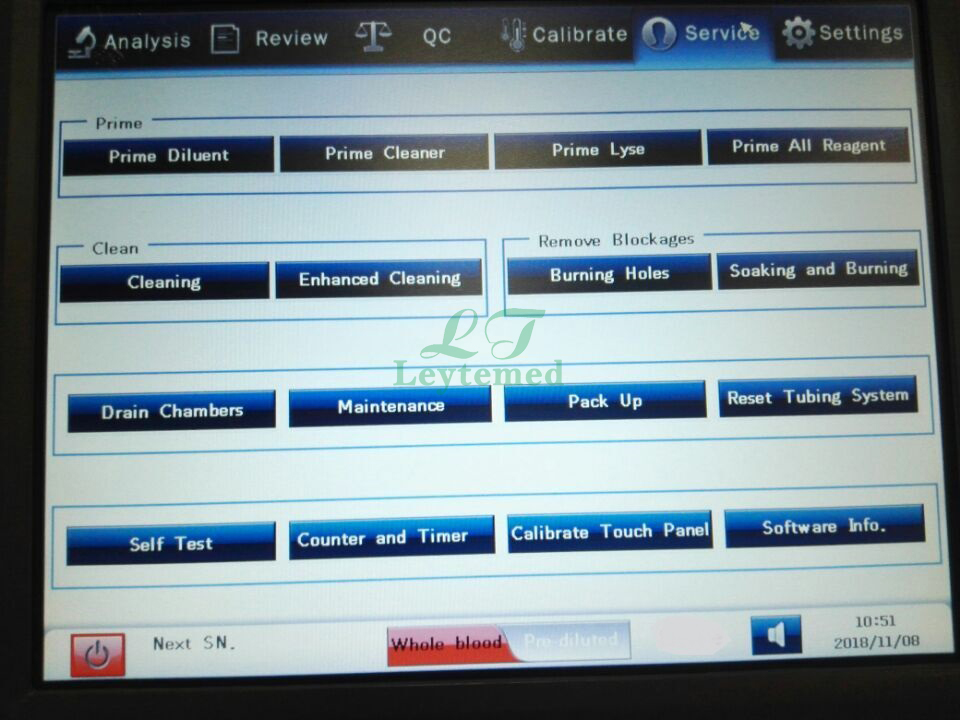

l Measures of Unclogging Treatment
Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis
l Printout
English print report, optional report formats
l Storage
Can store more than 10,000 sample results, including parameters, histograms and patient information. Support multiple conditions combination query
l Communication
Open communication protocol. Support connection to LIS
l Data Import & Export
Import or export data via USB port

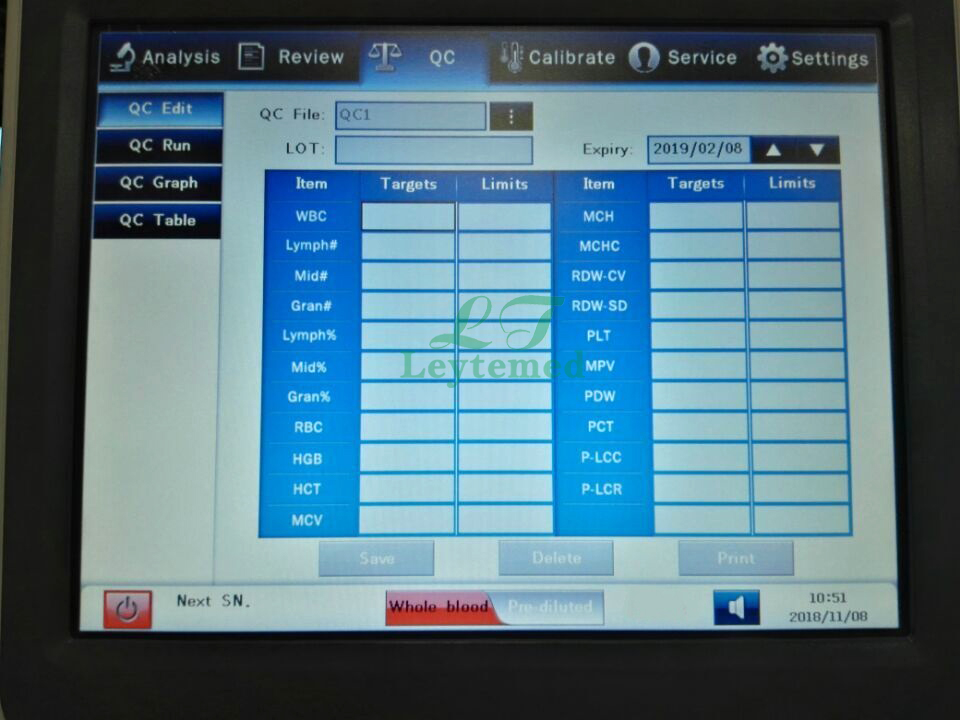

l Quality Control System
Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV
l Calibration System
Support manual and automatic calibration
l Software Upgrading
Upgrading software via USB port
l Display & Touch Screen
10.4 inch true color TFT LCD and touch screen
l Printer
Built-in patented structure thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds
l Data Ports
One network port, one RS-232 port, four USB ports
l Optional External Devices with USB Port
Standard 101 keyboard, mouse, barcode scanner and multiple printers
l Power
220V, 50Hz Input power: ≤150VA
l Operating Environment
ü Environment Temperature: 10 ℃～30℃
ü Relative Humidity: ≤70%
ü Atmospheric Pressure: 70.0kPa ～106.0kPa
l Dimensions
368mm x 448mm x 475mm
l Weight
≤23Kg

Packing & Delivery
UPS/DHL/FEDEX/TNT
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
By Sea
The volume of goods is large and needs to go by sea.It takes about one month to arrive.

Aircraft
Aircraft transportation takes 2-7 days to arrive.

FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
