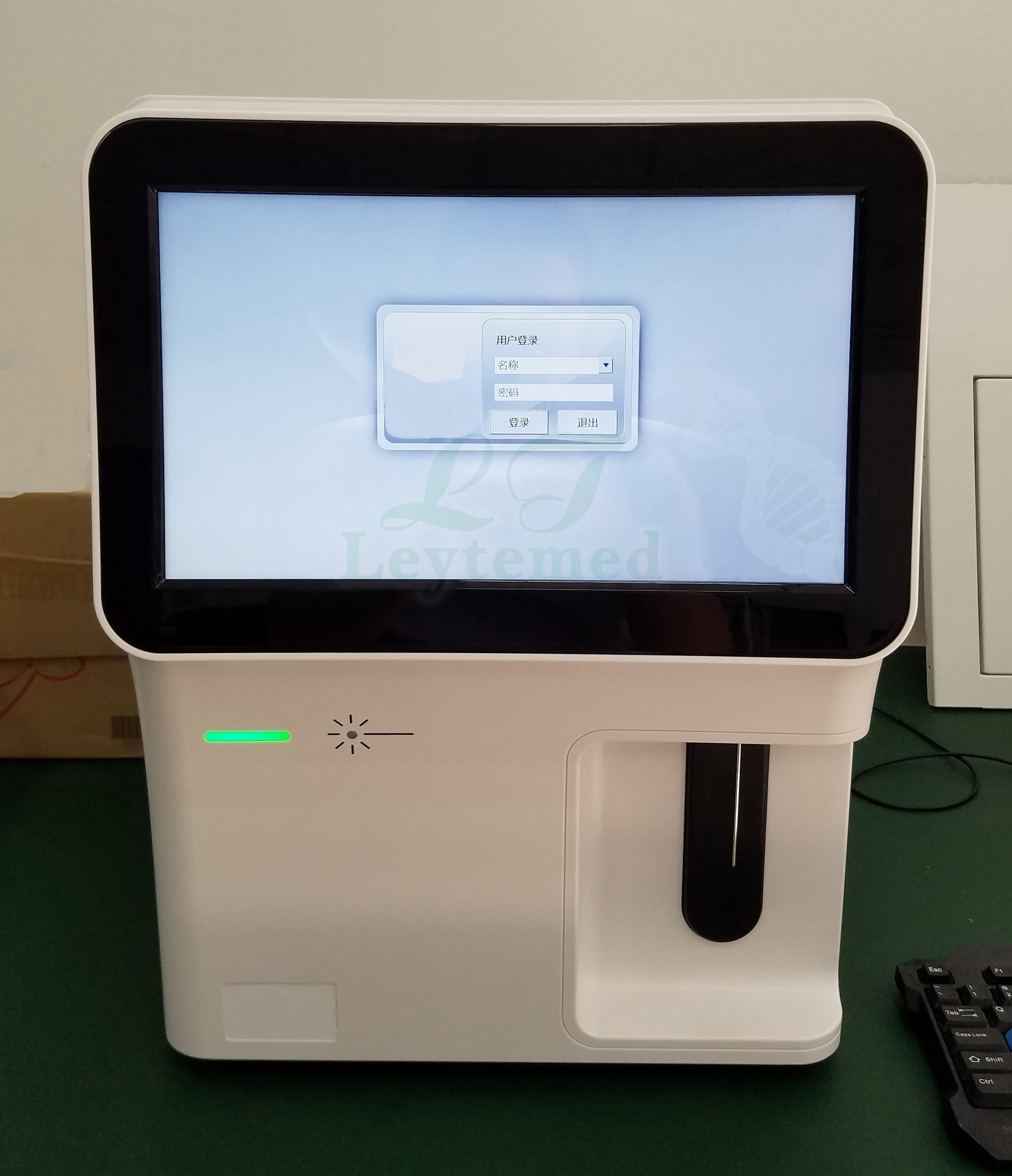

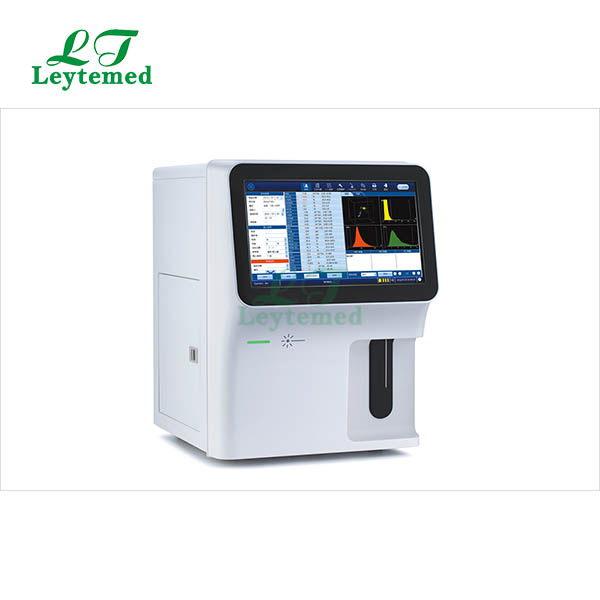

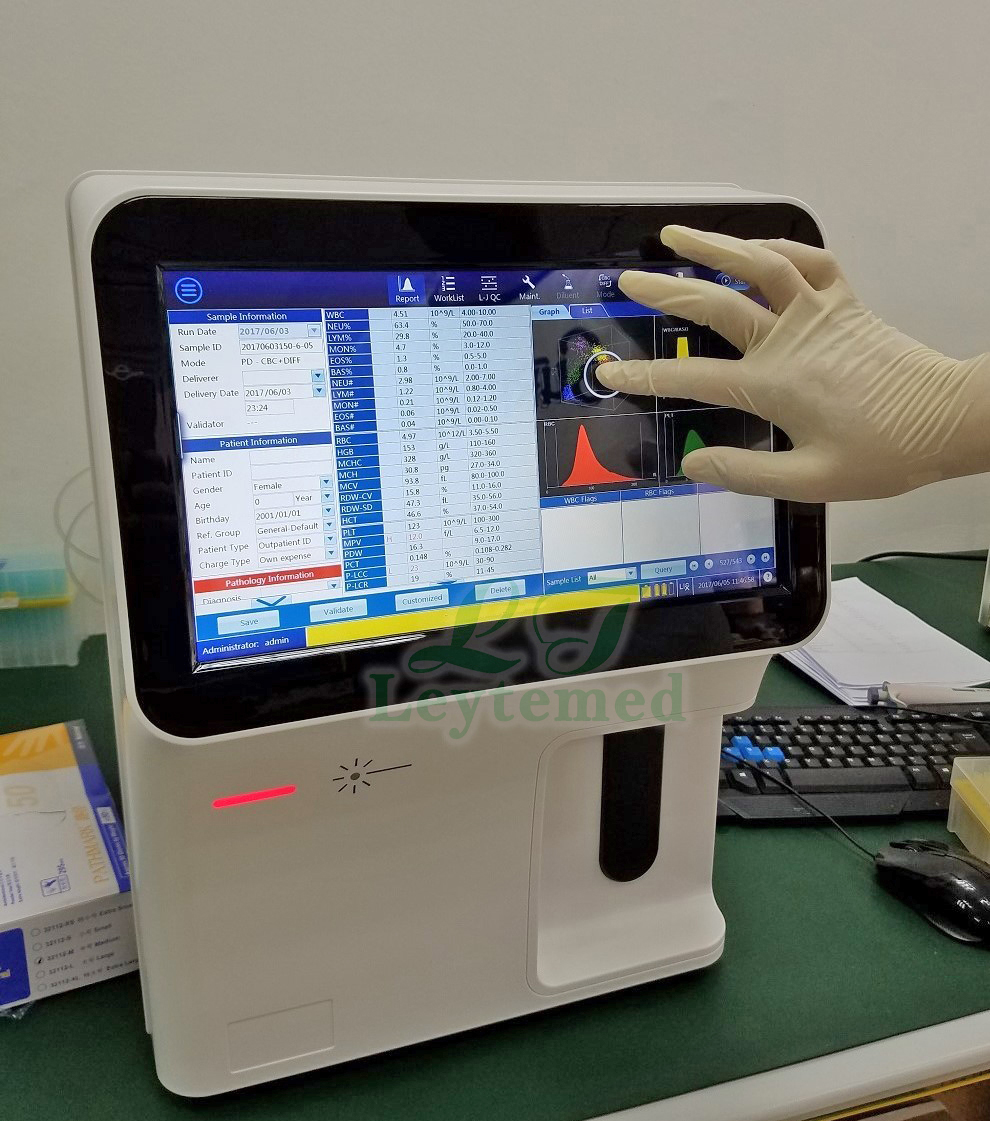

Hematology analyzer
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
WBC 5-part differentiation, 29 parameters, 3D scattergram and 3 Histograms
Products
- COVID-19 LEYTEMED HOT SALE PRODUCTS
- Clinical Analytical Instrument
- Clinical Laboratory Machine
- Operation Room Equipment
- Endoscope System
- Medical Human Body Model
- ENT Equipment
- B Ultrasound Scanner
- Medical X Ray Machine
- X Ray Machine Accessories
- Dental Equipment
- Maternal & Infant Care
- Ordinary Diagnosic Machine
- Eye Equipment
- Hospital Bed And Furniture
- Histopathology Instruments
- Mortuary Equipment and Waste Incinerator
- Veterinary equipment
- Medical Disposable Material
- Laboratory Disposable Material
- Details
- Pictures
- Service
- Q&A
-
Features:
-WBC 5-part differentiation, 29 parameters, 3D scattergram and 3 Histograms
-Tri-angle laser scatter, Flow cytometry and Electrical Impedance technology
-Whole blood mode, Prediluted mode and Capillary whole blood mode
-60 samples per hour
-14 inch, high resolution (1366*768) touch screen
-Sample volume≤20ul
-Up to 100,000 samples storage
-Support various external printer
-Support USB/LIS/LAN connection
Technical Specification:
Principles
Impedance method for WBC, RBC, PLT counting
Tri-angle laser scatter, Flow cytometry for WBC 5-part differential
Cyanide-free reagent for Hemoglobin test
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCC,
P-LCR Lym%, Lym#, Mon%, Mon#, Neu%, Neu#, Eos%, Eos#, Bas%, Bas#,
and 4 research parameters LIC%, LIC#, ALY%, ALY#
1 3D scattergram and 3 histograms
Test Model
CBC, CBC+DIFF
Throughput
60 samples per hour
Sample volume
CBC+DIFF model: ≤20ul
CBC model: ≤10
Performance
Carryover CV Linearity
WBC ≤0.5% ≤2.0% 0.00-300×109/L
RBC ≤0.5% ≤1.5% 0.00-8.0×1012/L
HGB ≤0.5% ≤1.5% 0-250g/L
PLT ≤1.0% ≤4.0% 0.00-3000×109/L
Data Memory
Up to 100,000 results including histograms and scattergram
Display
14 inch touch screen, High resolution 1366*768
Interface
4 USB ports, 1 LAN port
Communication
LAN port supports HL7 protocol
Internal RFID Reader
Printout
Various external USB printers
Dimension
D*W*H = 480*375*517(mm)
Weight: 36KG
Power requirement
a.c. 100-240V, 50/60Hz
Working Environment
Temperature: 10oC-30oC
Humidity: 20-85%
Air Pressure: 70-106 kPa
-
Packing & DeliveryUPS/DHL/FEDEX/TNTBy SeaThe volume of goods is large and needs to go by sea.It takes about one month to arrive.AircraftAircraft transportation takes 2-7 days to arrive.
-
FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
