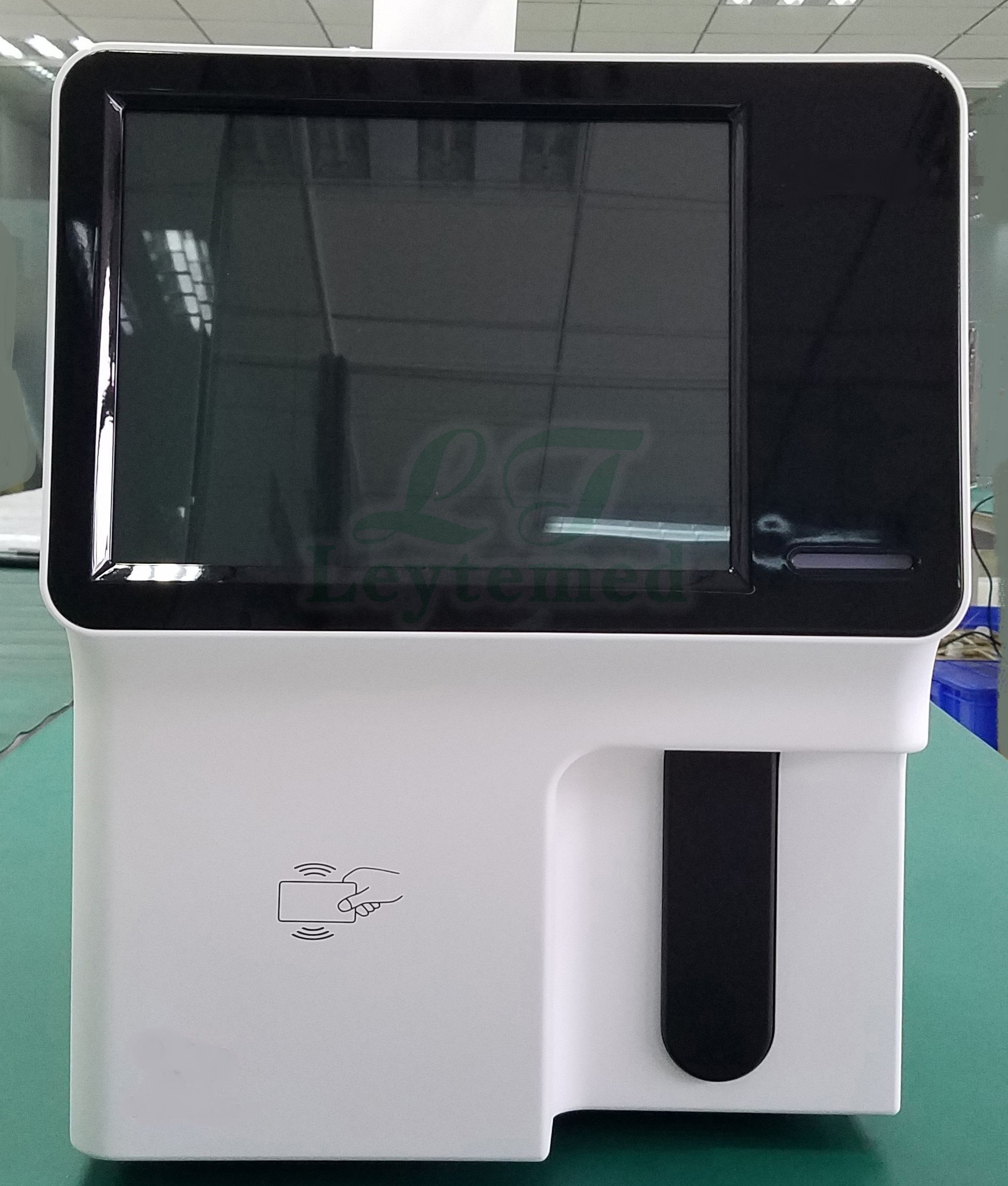

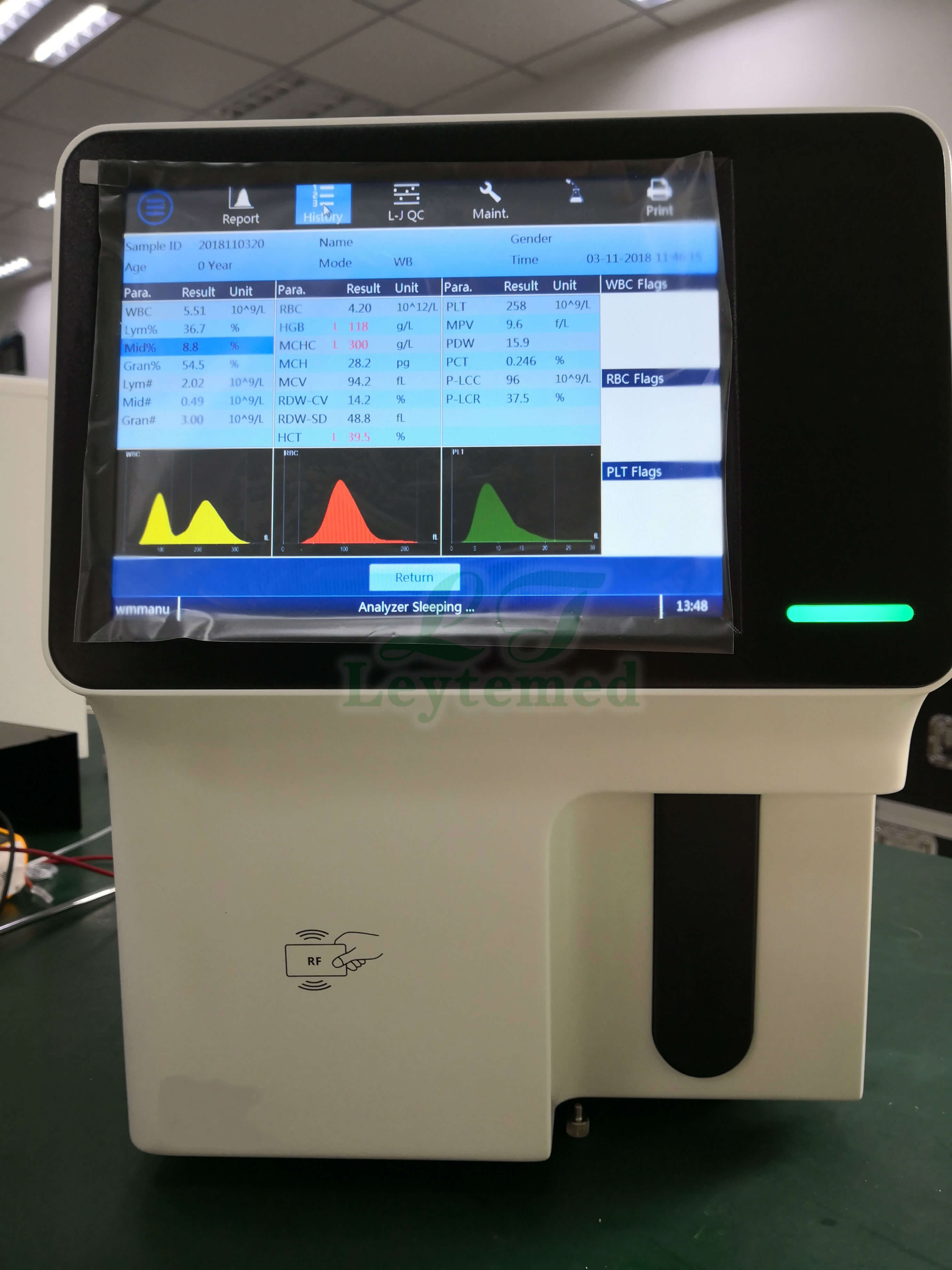

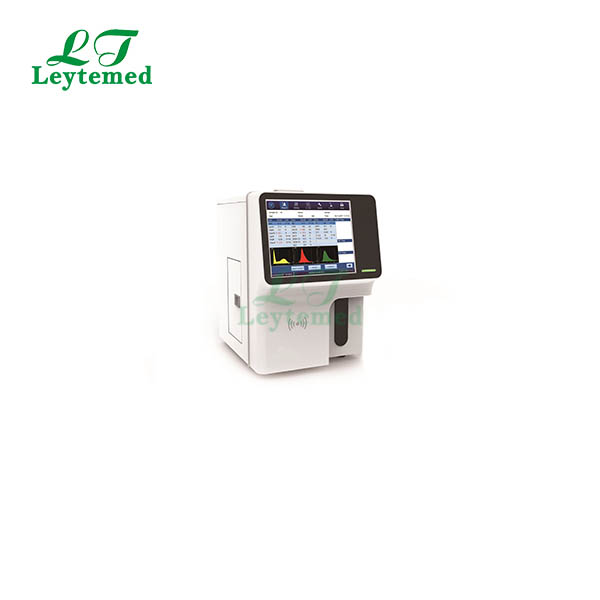

LTCH08 3-part auto hematology analyzer 60 test

LTCH08 3-part auto hematology analyzer 60 test
No: LTCH08
Type: Hematology analyzer
Dimension:
Characteristics:
Impedance method for WBC, RBC, PLT counting, Cyanide-free reagent for Hemoglobin test

Prev：LTCH09 Auto 5-part Hematology Analyzer

Next：LTCH07 3-Part Auto Hematology Analyzer with touch screen

Details
Pictures
Service
Q&A

Features:
-WBC 3-part differentiation, 21 parameters, 3 Histograms
-Whole blood mode, Prediluted mode and Capillary whole blood mode
-60 samples per hour
-10.4 inch touch screen
-Sample volume≤10ul
-Up to 100,000 samples storage
-In-built thermal printer and support various external printer
-Support USB/LIS/LAN connection

Technical Specification:

Principles
Impedance method for WBC, RBC, PLT counting
Cyanide-free reagent for Hemoglobin test
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCC, P-LCR Lym%, Lym#, Mid%, Mid#, Gran%, Gran#
3 histograms (WBC, RBC, PLT)
Throughput
60 samples per hour
Sample volume
≤10
Performance
Carryover               CV Linearity
WBC   ≤0.5% ≤2.0%              0.00-300×10⁹/L
RBC    ≤0.5% ≤1.5%              0.00-8.0×10¹²/L
HGB   ≤0.5% ≤1.5%              0-250g/L
PLT    ≤1.0% ≤4.0%          0.00-3000×10⁹/L
Data Memory
Up to 100,000 results including histograms
Display
10 inch touch screen
Interface
4 USB ports, 1 LAN port, 1 RS232 port
Communication
LAN port supports HL7 protocol
Internal RFID Reader
Printout
Built-in thermal printer or external USB printers
Dimension
D*W*H = 411*315*416(mm)
Weight: 26KG

Power requirement
a.c. 100-240V, 50/60Hz

Working Environment
Temperature: 10^oC-30^oC
Humidity: 20-85%
Air Pressure: 70-106 kPa

Packing & Delivery
UPS/DHL/FEDEX/TNT
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
By Sea
The volume of goods is large and needs to go by sea.It takes about one month to arrive.

Aircraft
Aircraft transportation takes 2-7 days to arrive.

FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us. We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
