Hematology analyzer

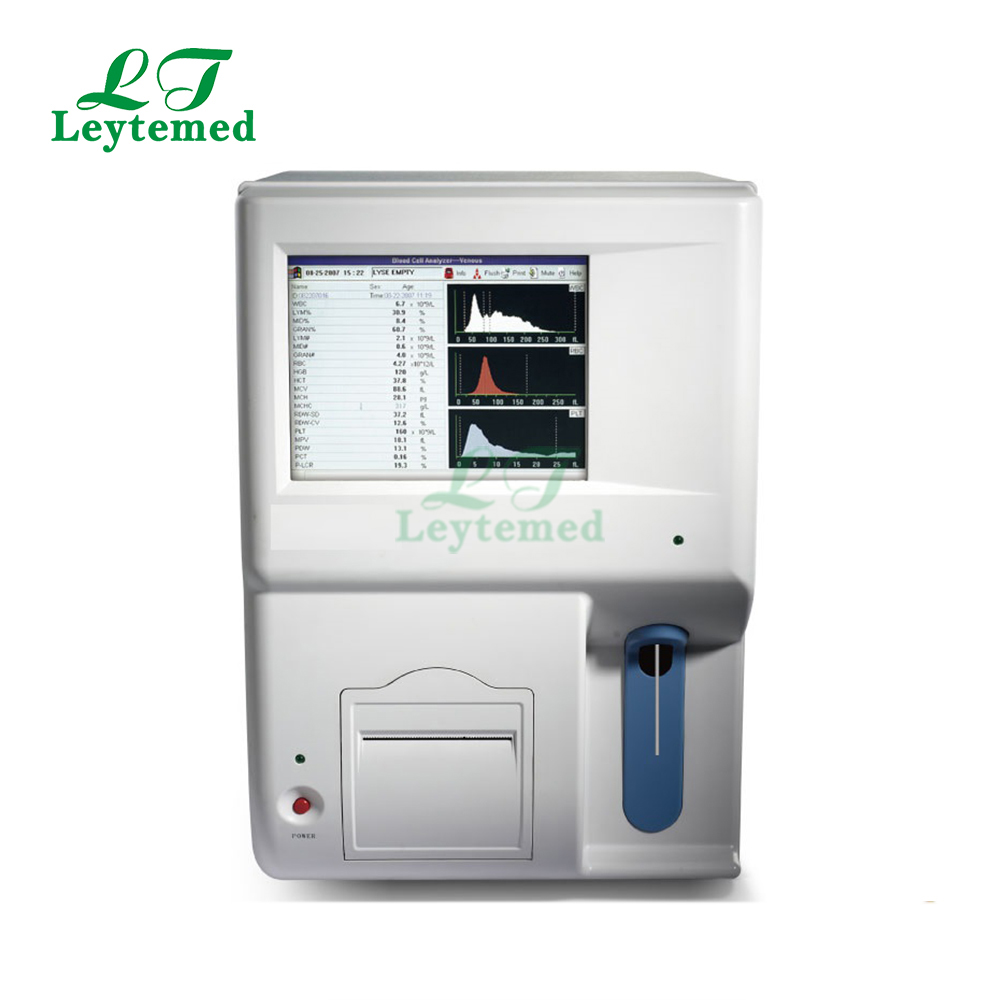

LTCH03 double channel auto hematology analyzer
，
Specifications
Test principle: electrical resistance for counting and SFT method for HGB
Test flow: fully auto and the blood don’t need dilute or other process
Clot clear: high voltage burn and high pressure flush
Parameter: 3 part differentiation of WBC，20 parameters + 3 histograms
Sample volume: 9.8μl peripheral blood or venous blood
Test channel: two channels
Throughput: 60 samples/hour
Language: English
QC mode: 、-R、-B、L-J, auto draw and print QC figure
Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control
Reference range type: newborn、children、male、female and universal
Reagent: provide original reagent
Memory: save more than 30000 sample’s detail results including histograms
Display: Large colour LCD, show all parameters and histograms at same screen
Input and output: keyboard、mouse、Parallel Port、RS232 serial port, can be connected to computer
Printer: Inner thermal printer，can be connected to external computer and printer
Working Environment: Temperature：18℃～35℃；Humidity：40%RH-80%RH
Voltage: AC 175 V～265V，Auto adapt according to the input voltage
Dimension: 300 mm×400 mm×440mm（L×W×H）
Net weight: 18Kg
Technical parameter
Sample volume: normal mode: 9.8μl, dilution mode: 20μl
Aperture diameter: WBC: 100μ m, RBC、PLT: 70μ m
Throughput: 60 samples/hour
Clot clear: high voltage burn and high pressure flush
Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control
QC mode: 、-R、-B、L-J, auto draw and print QC figure
Display: Large colour LCD, show all parameters and histograms at same screen
Memory: save more than 30000 sample’s detail results including histograms
Input and output: keyboard、mouse、Parallel Port、RS232 serial port, can be connected to computer
Printer: Inner thermal printer，can be connected to external computer and printer
Test parameter
WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT
MCV MCH MCHC RDW-SD RDW-CV PLT MPV PDW PCT P-LCR
WBC Histogram RBC Histogram PLT Histogram
