LTSI19 Cheap Double Channel Syringe Pump For ICU

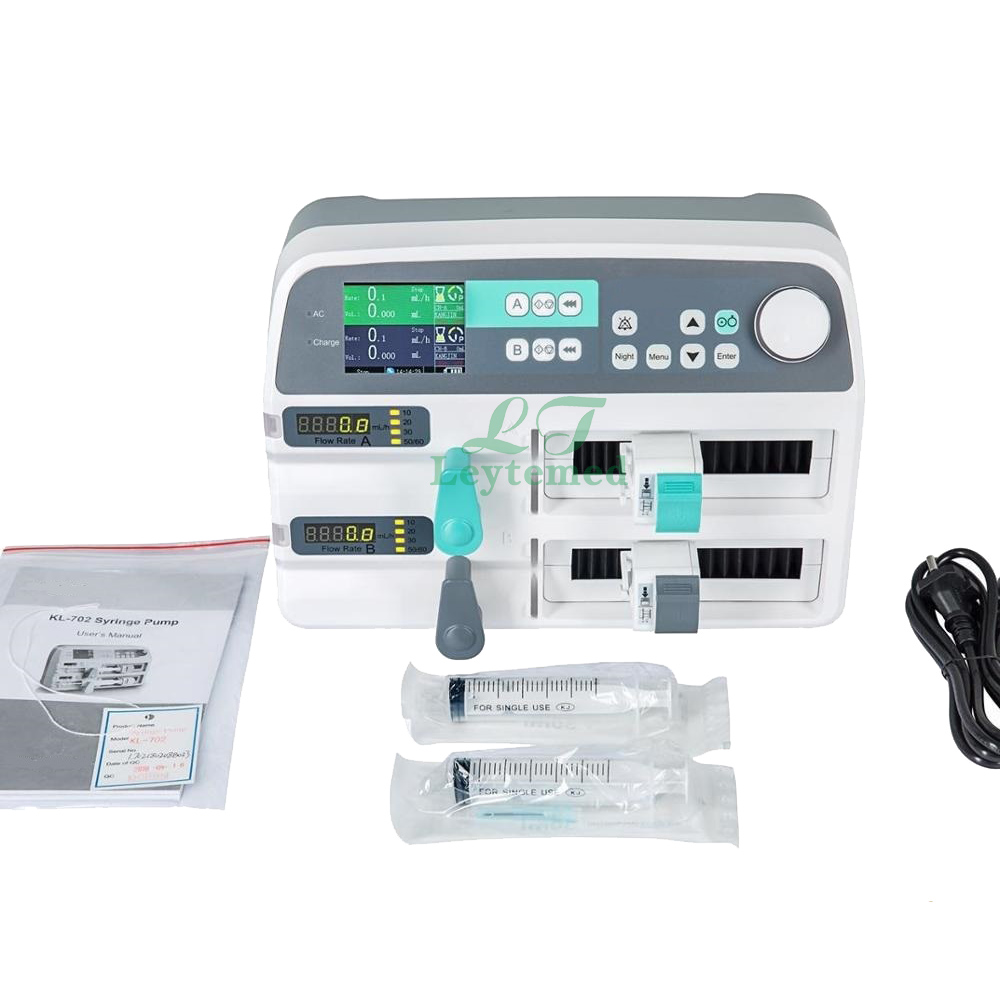

LTSI19 Cheap Double Channel Syringe Pump For ICU
No: LTSI19
Type: Syringe and infusion pump
Dimension: 330(L)*125(W)*225(H) mm
Characteristics:
Syringe size: 10, 20, 30, 50/60 ml

Prev：LTSI20 Anesthesia Pump TCI Syringe Pump

Next：LTSI18 Portable Medical ICU Singel Channel Syringe Pump

Details
Pictures
Service
Q&A

OR SYRINGE DRIVER INFUSION PUMP FLUID ADMINISTRATION PUMP

Features:

1. Applicable syringe: 3 brands built-in (BD, B. Braun, Terumo), 2 brands for user-defined

2. History log

3. Occlusion pressure release

4. Syringe size: 10, 20, 30, 50/60 ml

5. Accuracy: ±2%

6. Flow rate: 0.1-1600 ml/h

7. KVO rate: 0.1-1 ml/h in 0.1 ml/h increments, adjustable

Technical Specifications:

Model	Double Channel Syringe Pump
Syringe Size	10, 20, 30, 50/60 ml
Applicable Syringe	3 brands built-in (BD, B. Braun, Terumo), 2 brands for user-defined
Volume	0.1-10000 ml <1000 ml in 0.1 ml increments ≥1000 mL in 1 ml increments
Flow Rate	Syringe 10 ml: 0.1-420 ml/h Syringe 20 ml: 0.1-650 ml/h Syringe 30 ml: 0.1-1000 ml/h Syringe 50/60 ml: 0.1-1600 ml/h <100 ml/h in 0.1 ml/h increments ≥100 ml/h in 1 ml/h increments
Bolus Rate	Syringe 10 ml: 420 ml/h Syringe 20 ml: 650 ml/h Syringe 30 ml: 1000 ml/h Syringe 50/60 ml: 1600 ml/h
Accuracy	±2% (mechanical accuracy ≤1%)
Infusion Modes	Flow rate: ml/min, ml/h Time-based Body weight: mg/kg/min, mg/kg/h, ml/kg/min, ug/kg/min
KVO Rate	0.1- 1 ml/h in 0.1 ml/h increments
Alarms	Occlusion, syringe drop off, near empty, end program, low battery, end battery, AC power off, motor malfunction, unattended pump, pressure sensor error, syringe installation error, syringe moved accidently,
Additional Features	Syringe identification, real-time shift totals, occlusion pressure release, bolus, mute button, automatic power switching, residue reminder, system memory, history log, separate channel alarm, power saving mode
Occlusion Sensitivity	High: 0.02-0.07 Mpa Medium: 0.05-0.10 Mpa Low: 0.08-0.14 MPa
Power Supply, AC	110/230 V (optional), 50/60 Hz, 20 VA
Battery	9.6 ±1.6 V, rechargeable
Battery Life	Power saving mode at 5 ml/h, 8 hours for single channel, 5 hours for double
Working Temperature	5-40°C
Relative Humidity	20-90%
Atmospheric Pressure	860-1060 hpa
Size	330(L)125(W)225(H) mm
Weight	4.5 kgs
Safety Classification	Class Ⅱ, type CF

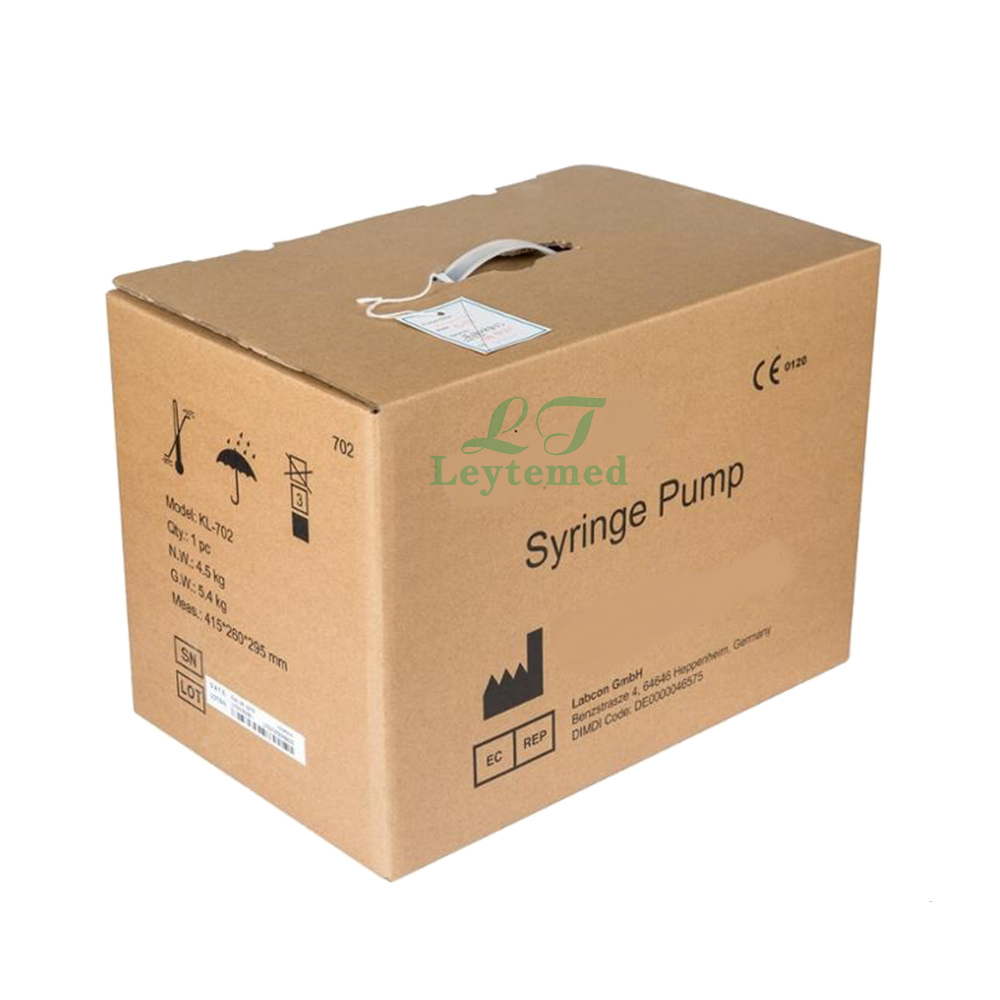

Packing & Delivery
UPS/DHL/FEDEX/TNT
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
By Sea
The volume of goods is large and needs to go by sea.It takes about one month to arrive.

Aircraft
Aircraft transportation takes 2-7 days to arrive.

FAQ
Q:What's the minimum order quantity (MOQ)?
A:For most of our medical products, even order for only one unit is warmly welcomed.

Q: Can you do OEM/ private label?
A: Of course we can do OEM/private label for you.

Q: What's your delivery time?
A: Generally it is 10 days if the goods are in stock.
or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: How to ship the order?
A: Please inform us your instruction, by sea, by air or by express, any way is ok for us.
We have very professional forwarder to provide the best shipping cost, service and guarantee.

Q: What is your terms of payment ?
A: We accept T/T ,LC,Western Union ,Paypal and more.Please suggest your preferred payment method.
