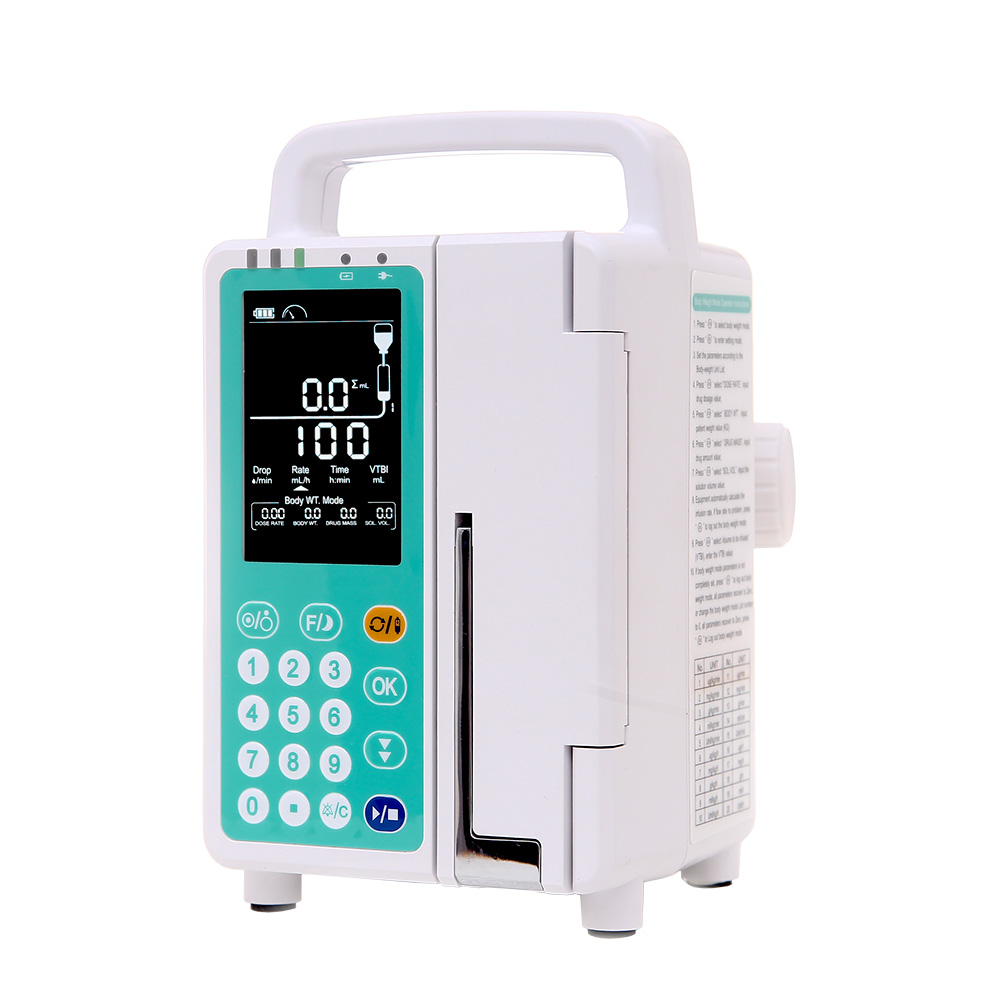

LTSI25 Portable Volumetric Infusion Pump For Medical
  • LTSI25 Portable Volumetric Infusion Pump For Medical
  • LTSI25 Portable Volumetric Infusion Pump For Medical
  • LTSI25 Portable Volumetric Infusion Pump For Medical
  • LTSI25 Portable Volumetric Infusion Pump For Medical

  • No: LTSI25
  • Type: Syringe and infusion pump
  • Dimension:
  • Characteristics:

    Power: AC 100V-240V 50HZ/60HZ

  • Details
  • Pictures
  • Service
  • Q&A
  • Special Features

    1. 3.5 inch LCD screen for clear vision within 5 meters

    2. One-button night mode design for patient’s more comfortable rest at night

    3. Rate,Time-Rate,Volume-Rate,Time-Drop,Volume-Drop,Time-Volume to satisfy different clinical choices

    4. 5 different brands of I.V sets can be calibrated and customized into the system

    5. Numeric but easy cooperation more compatible with clinical use in ICU, NICU, OT etc

    Model No.Parameters

    LTSI25 Infusion Pump

    Infusion Principle

    Fingertip Peristaltic Pump

    I.V.Set Compatibility

    Open System, match all brands of qualified PVC,TPE I.V.sets with external diameter of 3.8mm-4.2mm

    Range of Flow Rate


    Infusion Mode

    Rate, Rate-Time, Rate-Volume, Time-Volume, Drop-Volume, Drop-Time, Body Weight

    Drug Library

    20 drug list with drug code display

    Purge/Bolus Rate

    1-1200ml/h,default 800ml/h, step by 1ml/h

    Single Bolus Volume

    1.0-10ml Adjustable, default 3 ml

    Time Preset

    00: 01~99: 59 Hour: Min

    Volume Range


    Drop Range

    1-400d/min, step by 1 drop



    Total Volume Infused

    0-9999 ml

    Occlusion Pressure


    40 KPa±20KPa


    60 KPa±20KPa



    Air in line Detection

    Ultrasonic wave

    Visible & Audible Alarms

    Air in line, Down Stream Occlusion, Door Open, VTBI Completion, Near Completion, Low Battery, Battery Exhausted, Low Temperature,
    Motor Malfunction, A.C Disconnection, A.C connection, I.V set dislocation, MPU Error, Battery Charging, Battery Charging Completion,
    Circuit Malfunction

    K.V.O Rate

    1ml/h-5ml/h, default value 1ml/h, can be programmed by user step 0.1ml/h

    Internal Battery

    Lithium battery, 11.1/2000mAh, more than 4 hours working back up

    Power Consumption



    AC 100V-240V 50HZ/60HZ


    Class II, Type CF, IPX4

    Dimension & Weight

    13×17.5×23 cm;2Kg

    Optional Function

    Ambulance DC 12V
