Hematology analyzer
We ship goods by UPS/DHL/FEDEX/TNT express takes 3~ 5 days to arrive.
Special Features
1. 3.5 inch LCD screen for clear vision within 5 meters
2. Special designed extension line grip
3. One-button night mode design for patient’s more comfortable rest at night
4. Compatible with different brands of 5,10,20/30,50/60 ml syringes

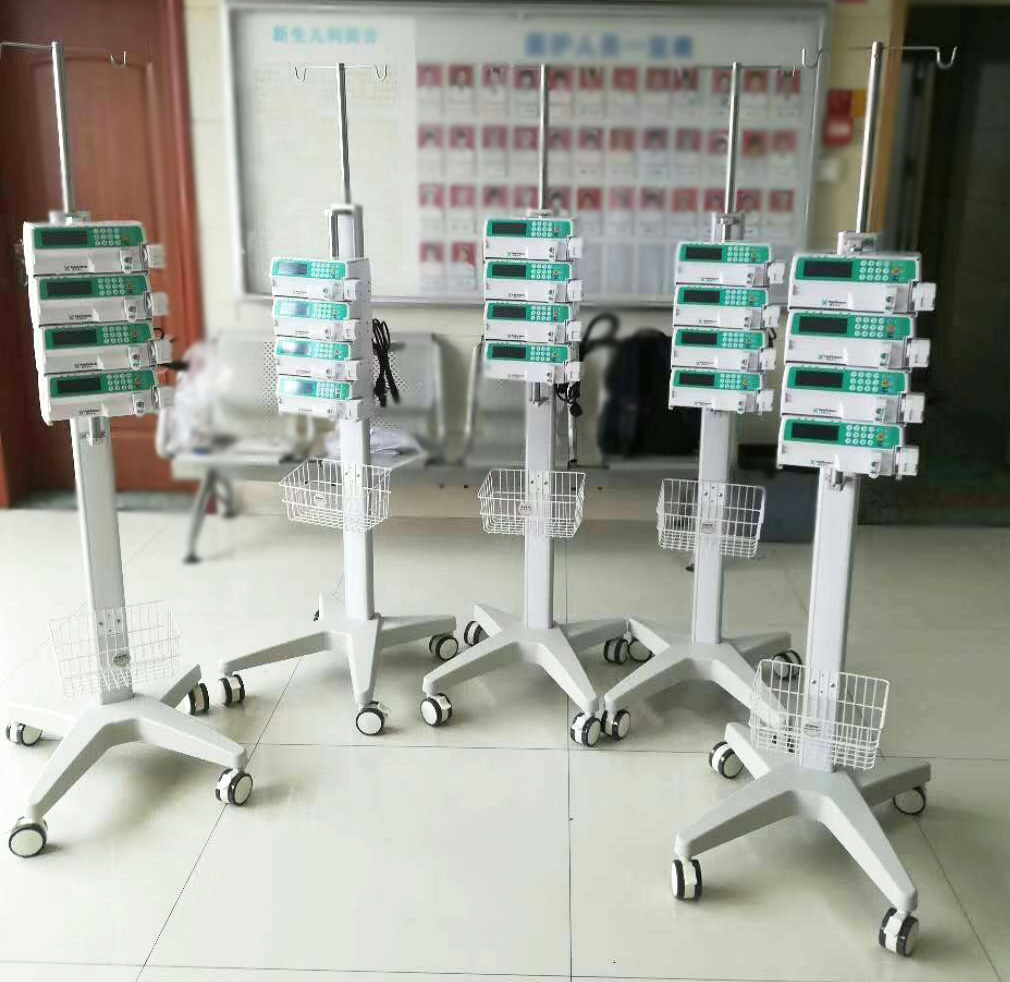

5. Free stacking of single syringe pumps for easy space stations in ICU, NICU, OT etc
Model No. Parameters | LTSI24 Single Channel Syringe Pump | |
Channel | Single | |
Stackable | YES | |
Syringe Size | 5,10,20,30,50/60ml | |
Infusion Modes | Rate Mode, Rate-Time, Rate-VTBI, Time-VTBI, Body Weight | |
Safety | Double CPU to make sure higher standard infusion | |
Drug Library | 20 drug list with drug code display | |
Accuracy | ±2% | |
Time Preset | 00: 01~99: 59 （Hour: Min） | |
Volume Range | 0~9999.9ml | |
Flow Rate Step by | 0.1 ml/h when Rate<100ml/h, 1ml/h when Rate ≥100ml/h | |
Flow Rate Range | 5ml Syringe 0.1ml/h-150ml/h | |
10ml Syringe 0.1ml/h-300ml/h | ||
20ml Syringe 0.1ml/h-600ml/h | ||
30ml Syringe 0.1ml/h-900ml/h | ||
50/60ml Syringe 0.1ml/h-1200ml/h | ||
Purge/Bolus Rate/Top Flow Rate | 5ml Syringe 150ml/h | |
10ml Syringe 300ml/h | ||
20ml Syringe 600ml/h | ||
30ml Syringe 900ml/h | ||
50/60ml Syringe 1200ml/h | ||
Audible & Visible Alarms | Auto Seft-Test, Syringe Dislocation, Occlusion, Near End, Syringe Empty, VTBI Completion, Low Battery, Battery Exausted, Motor | |
KVO | 0.1-5.0ml/h Adjustable | |
Occlusion Pressure | High | 40 KPa±20KPa |
Middle | 60 KPa±20KPa | |
Low | 100KPa±20KPa | |
Max Infusion Pressure | 120KPa | |
Battery | ≥8 hours | |
Power Consumption | 30VA | |
Power Supply | AC100-240V，50Hz/60Hz | |
Battery | Lithium battery, 11.1/2000mAh | |
Classification | Class II, type CF, IPX4 | |
Dimension | 26×21.5×275px | |
Weight | 2kg | |
Optional Function | Ambulance DC 12V | |
